Mechanical Disassemblies
1 Remove 1 screw (M3x6) to take the Thermal Switch
(SW902) and the Cover Spacer off.
Fig.5
Thermal SW removal
5
Thermal SW
Lamp Cover Spacer
Fig.4
1 Remove 1 screw A (M4x4) and take the Rear Panel
ass’y upward off.
2 Remove 2 screws B (T3x8) to take the fan (FN903) off.
3 Remove 4 screws C (T3x6) and take AV Board from the
Rear Panel ass’y off.

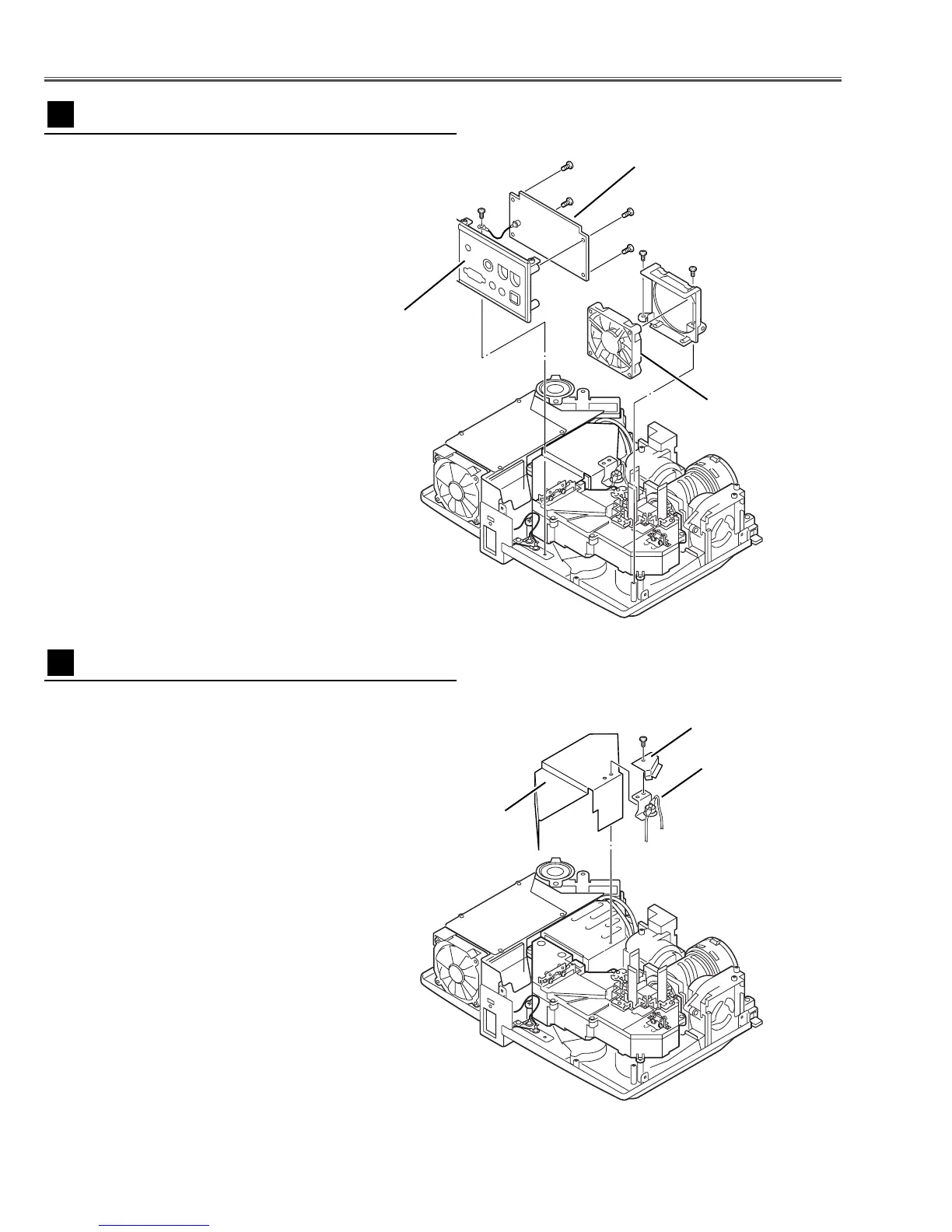

Rear Panel, AV Board and FN903 removal
4
A
B
C
B
C
C
C
AV Board
Rear Panel
FN903
Thermal SW Cover
To Next Page
