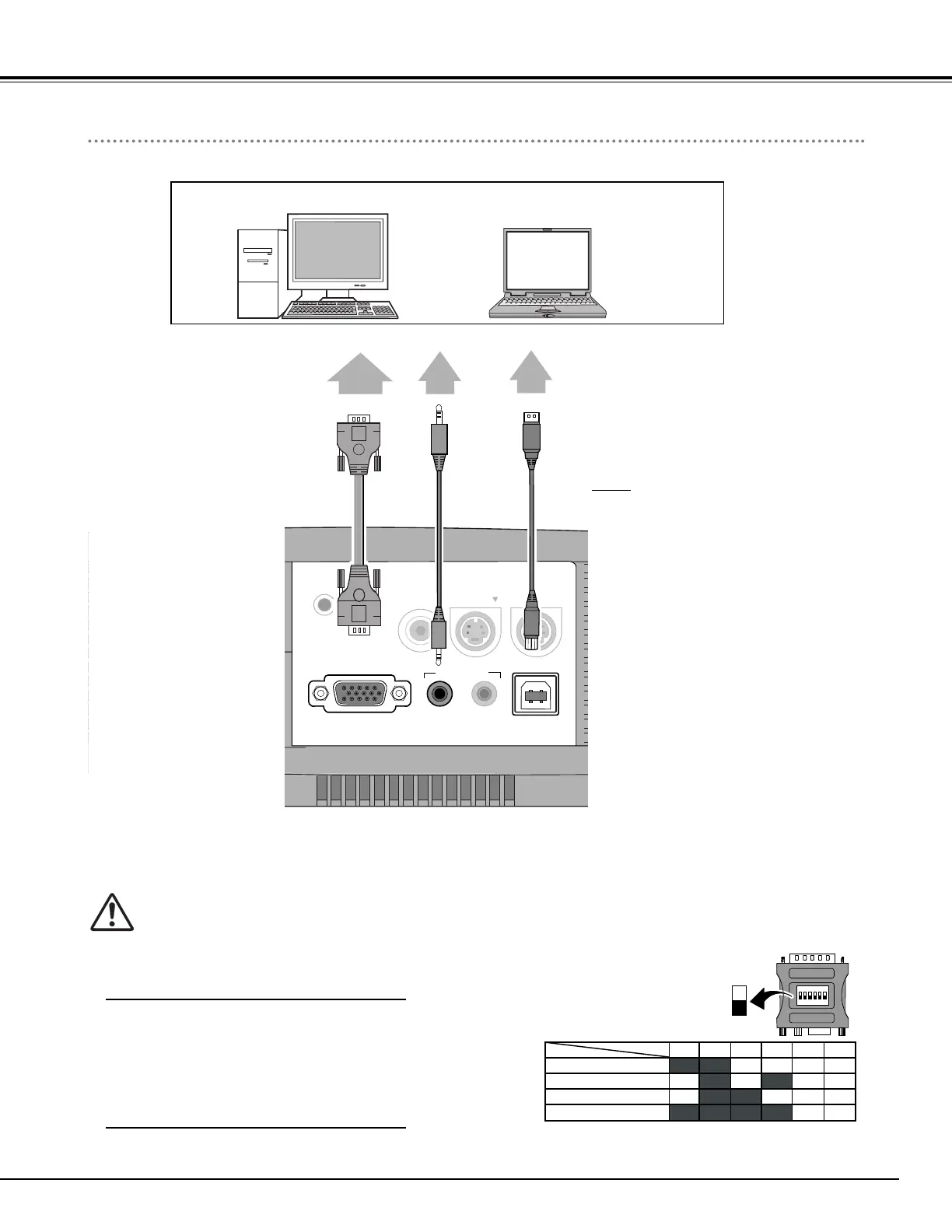

Connecting to a Computer
IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)
Note :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
AC outlet. Turn the projector and peripheral
equipment on before the computer is
switched on.
Installation
ONON
ON
1
DIP
ON
OFF
2 3 4 5 6
13" MODE (640 x 480)
16" MODE (832 x 624)
19" MODE (1024 x 768)
OFF
ON
ON
OFF OFF OFF
OFF OFF OFF
OFF OFF OFF
34 56
OFF OFFON ON21" MODE (1152 x 870)
ON ON
ON
ON
OFF
OFF
12
ON
ON
Set switches as shown in the
table below depending on RES-
OLUTION MODE that you want
to use before you turn on pro-
jector and computer.
◆ MAC ADAPTER (Not supplied)✽
VGA Cable
USB
Cable
✽
Audio Cable
(Stereo) ✽
USB portAudio Output Monitor Output
Terminals of the Projector
Cables used for connection
• VGA Cable ( HDB 15 pin )
• Audio Cable ( Mini Plug (stereo) ) ✽
• USB Cable ✽
• MAC Adapter ( For Macintosh ) ✽
✽ Not supplied.
If you wish to use Page ▲▼ buttons on
the remote control, connect USB port of
your computer to the USB socket of the
projector. ( ☞ P10, P38 )
A Macintosh adapter may be required when you use a
Macintosh computer.

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
