Sanyo PLC-SW30 User Manual

34
Video Input
Press Point 7 8 buttons
to adjust value.
Press MENU button to display the On-Screen Menu. Press
Point
7 8 buttons to move the red frame pointer to IMAGE
ADJUST Menu icon.
1
2
Press Point d button to move the red frame pointer to the item
that you want to adjust and then press SELECT button. The
level of each item is displayed. Adjust each level by pressing
Point
7 8 buttons.
Move the red frame point-
er to the item to be select-
ed and then press SELECT
button.

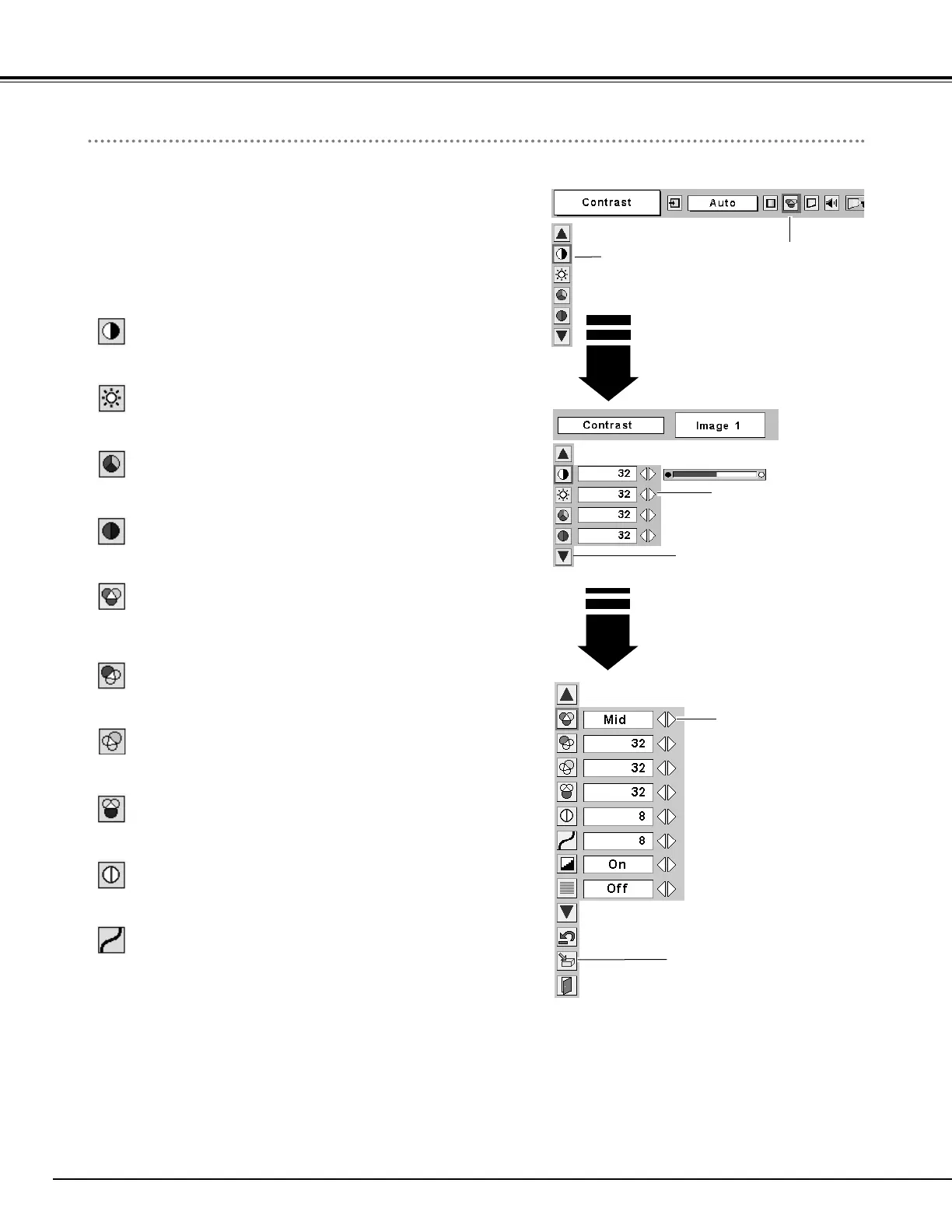

IMAGE ADJUST MENU
Image Level Adjustment
Press Point 7 8 buttons to adjust the image contrast. (From 0 to 63.)
Press Point 7 8 buttons to adjust the image brightness. (From 0 to 63.)
Contrast
Brightness
Press Point 7 8 buttons to obtain better balance of contrast. (From 0
to 15.)
Gamma
Press SELECT button at this
icon to display other items.
Image Adjust
Menu
Press Point 7 8 buttons
to adjust value.
Press Point 7 8 buttons to adjust color intensity. (From 0 to 63.)
Press Point 7 8 buttons to obtain proper color. (From 0 to 63.)
Color
Tint
Press Point 7 8 buttons to adjust the image sharpness. (From 0 to 15.)
Sharpness
Press Point 7 8 buttons to adjust the red tone. (From 0 to 63.)
White balance (Red)
Press Point 7 8 buttons to adjust the green tone. (From 0 to 63.)
White balance (Green)
Press Point 7 8 buttons to adjust the blue tone. (From 0 to 63.)
White balance (Blue)
NOTE : Tint cannot be adjusted when the video
system is PAL, SECAM, PAL-M or PAL-
N.
Press SELECT button at this icon
to store the value.
Press Point 7 8 buttons to select the Color temp. level that you
want to select. (XLow, Low, Mid, or High)
Color temp.

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
