Sanyo PLC-SW30 User Manual

10
S-VIDEO
COMPUTER IN
/
COMPONENT IN/
COMPUTER /
COMPONENT
AV
AUDIO IN
VIDEO
USB
SERVICE PORT
RESET
✽ RESET button
A microprocessor included in the projector may occasionally
malfunction and need to be reset. If necessary, press this
button with a sharp tool to restart the unit. Do not use it
excessively.
y AUDIO IN COMPUTER/ COMPONENT
Connect audio output from a computer or component to
this jack. (
☞ P15, P16 )

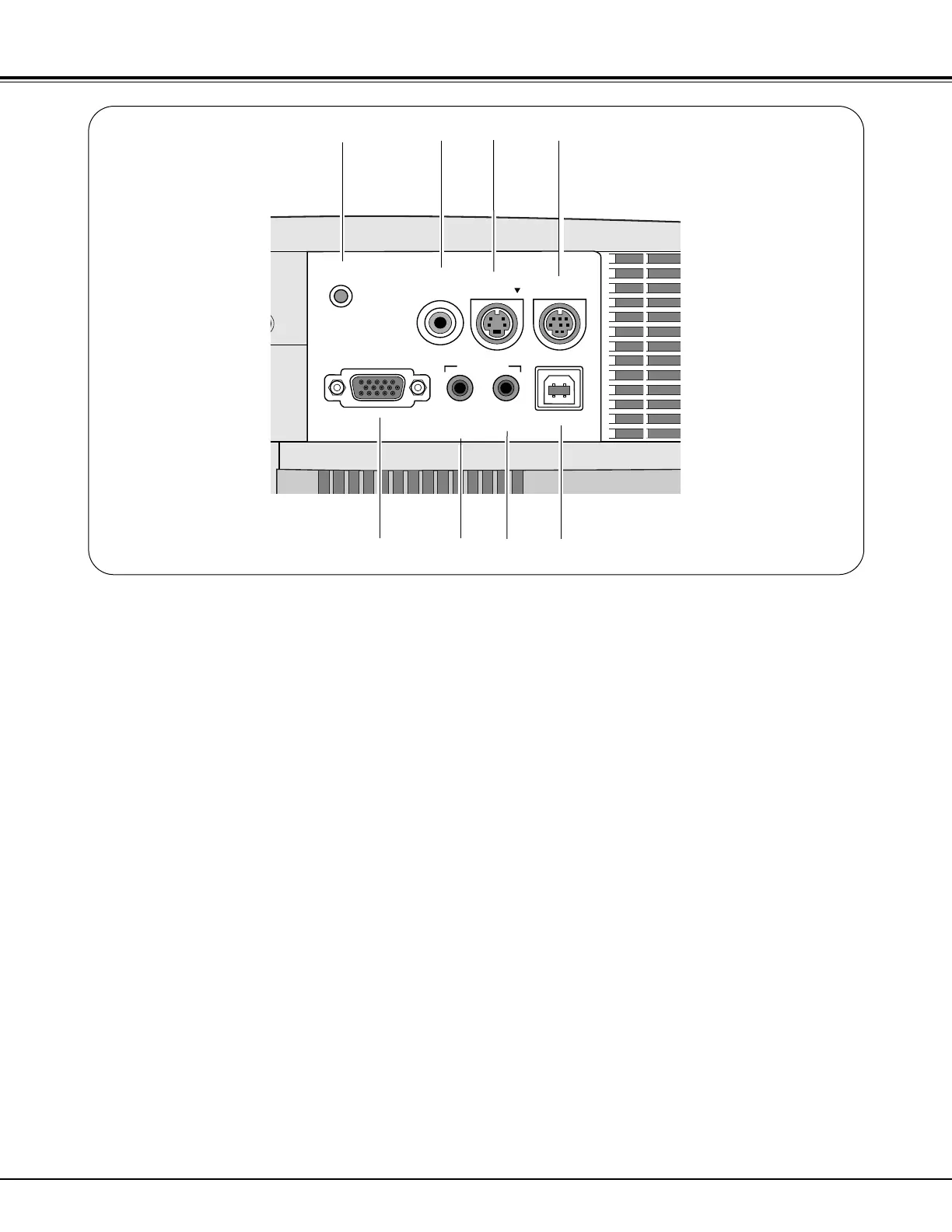

Te rminals
Overview
e
w
q
✽
u
t r
u COMPUTER IN / COMPONENT IN
Connect computer output, component output or
RGB
Scart 21-pin video output to this connector. ( ☞ P15,
P16 )
q VIDEO
Connect the composite video output from video
equipment. (
☞ P16 )
w S-VIDEO
Connect S-video output from video equipment. (
☞ P16 )
e SERVICE PORT
This jack is used to service this projector.
r USB
Connect the USB port of your computer to this port
when you wish to use the PAGE
ed buttons on the
remote control to scroll back and forth pages on the
screen of the connected computer.
( ☞ P15, P38 )
t AUDIO IN AV
Connect audio output from video equipment. (
☞ P16 )
y

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
