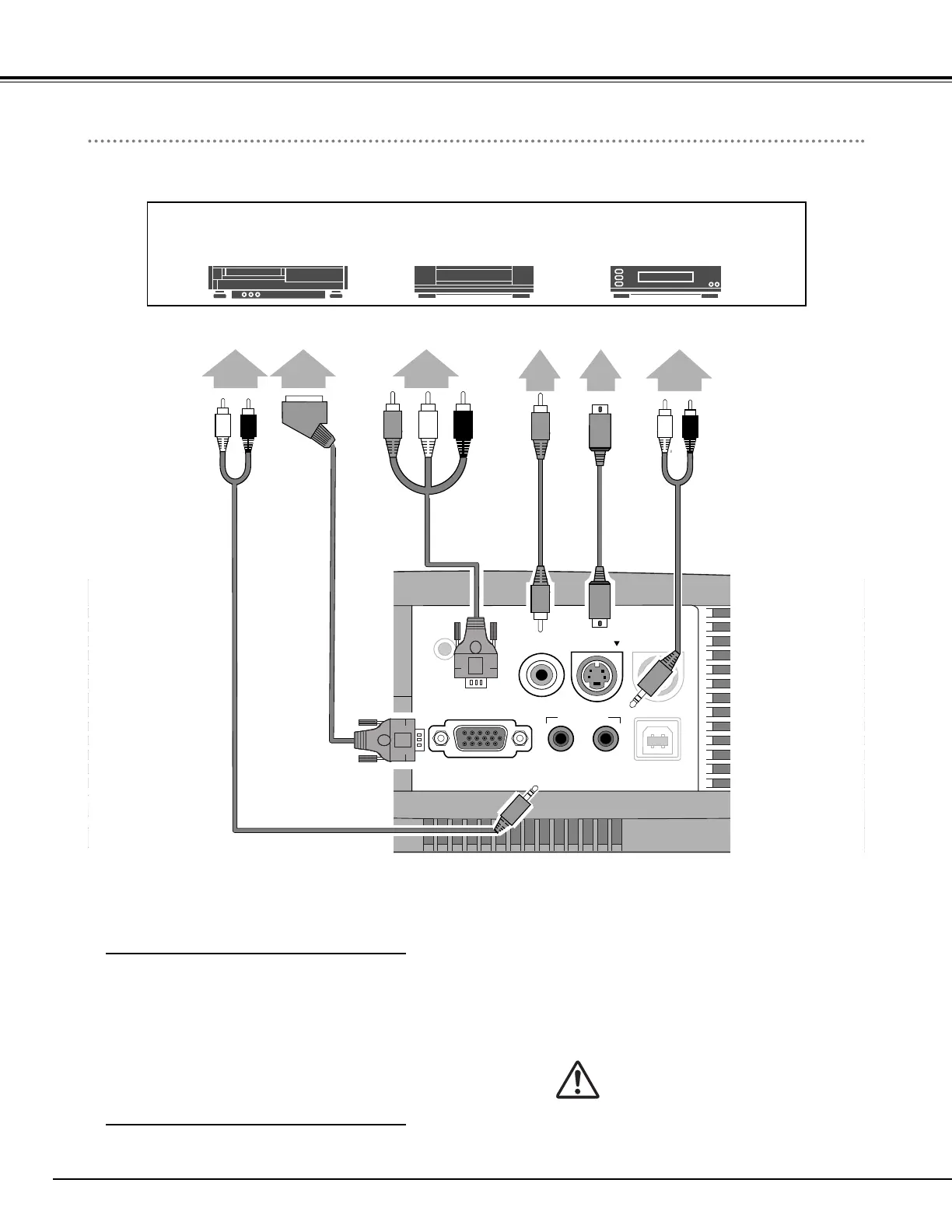

Video Source (example)
Video Cassette Recorder Video Disc Player
Video
Cable ✽
(RCA x 1)
S-VIDEO
Cable ✽
Note :
The S-VIDEO jack has priority over the VIDEO jack under the
condition of connecting both the S-VIDEO jack and the VIDEO
jack when selecting AUTO in the Input Menu.
S-VIDEO
Output
Note:
When connecting the cable, the power
cords of both the projector and the
external equipment should be
disconnected from AC outlet.
Audio Output
Audio Cable
(stereo) ✽
Component video output
equipment.
(such as DVD player or
high-definition TV source.)
Composite
Video Output
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Video Cable
(RCA x 3) ✽
Audio Output
Audio Cable
(stereo) ✽
Terminals of the Projector
Cables used for connection
• Video Cable (RCA x 1) ✽
• S-VIDEO Cable ✽
• Audio Cables (Mini Plug) ✽
• Scart-VGA Cable ✽
• Component-VGA Cable ✽
✽ Not supplied.
RGB Scart
21-pin Output
Scart
Cable
✽
To Next Page
