Sanyo PLC-SW30 User Manual

26
Computer Input
Note :
Display area, Display area (H/V) and Full screen cannot be adjusted when
“480p”, “575p”, “480i”, “575i”, “720i (HDTV)” , “1035i (HDTV)” or “1080i
(HDTV)” is selected on PC SYSTEM Menu (
☞
P23 ).
Selects area displayed with this projector. Select the resolution at
Display area dialog box.
Display area
Adjustment of horizontal area displayed with this projector. Press
Point
7 8 buttons to decrease/increase value to match the
resolution of image. Then press the SELECT button.
Display area H
Adjustment of vertical area displayed with this projector. Press Point
7 8 buttons to decrease / increase value to match the resolution of
image. Then press the SELECT button.
Display area V
Press Point 7 8 buttons to switch Full screen function to “On” or
“Off.” Set “On” to resize the image with 4 x 3 aspect ratio to fit the
screen.
Full screen
Reset
Store
Closes PC Adjust Menu.
Quit
To store adjustment parameters, move the red frame pointer to
Store icon and then press SELECT button. Move the red arrow
pointer to any of Mode 1 to 5 that you want to store to and then
press SELECT button.
Reset all adjust parameters on adjustment dialog box to previous
figure.
Mode free
Vacant Mode
Close this dialog box.
To store adjustment data
To clear adjustment data
To clear adjustment parameters previously set, move the red frame
pointer to Mode free icon and then SELECT button. Move the red
arrow pointer to the Mode that you want to clear and then press
SELECT button.

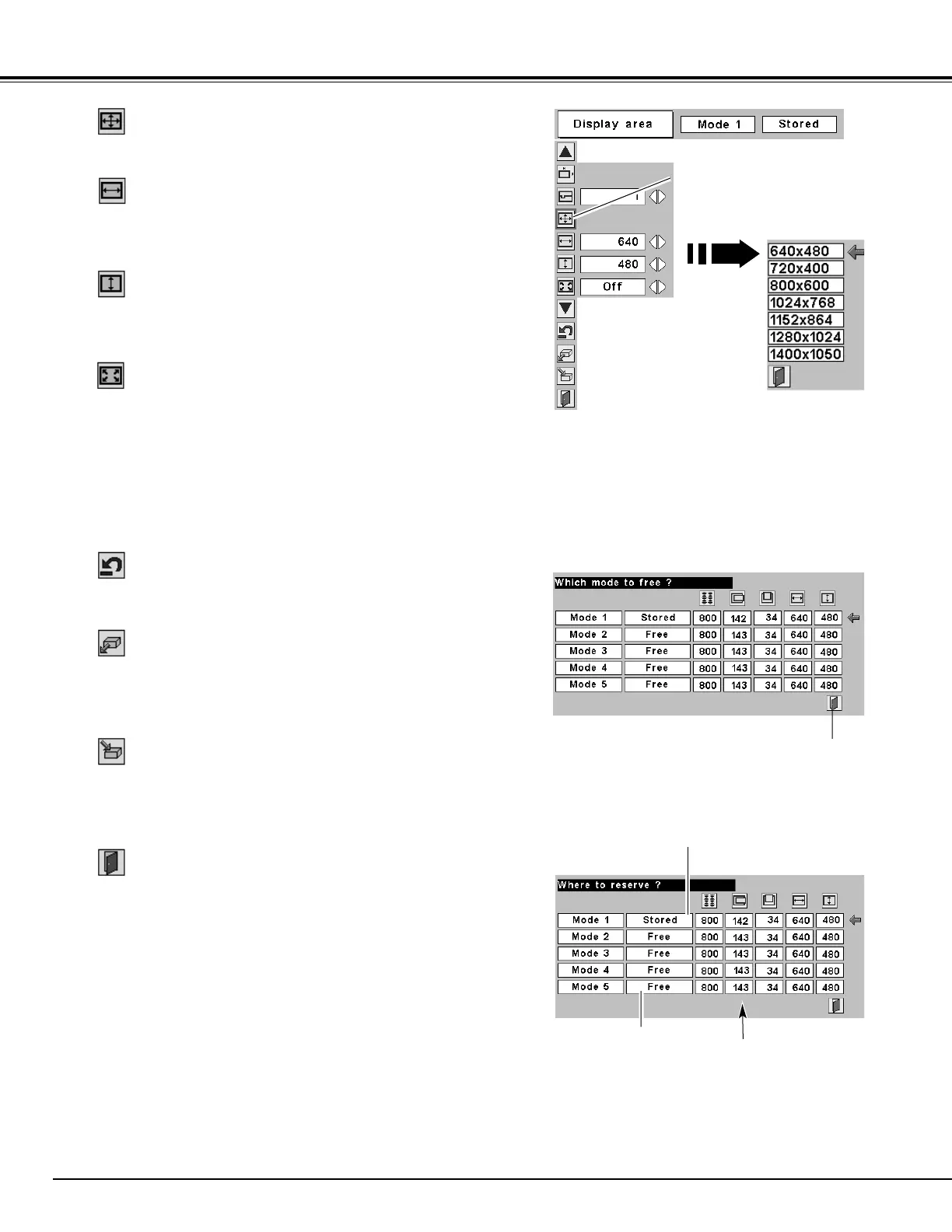

Press SELECT button at Display
area icon to show the Display
area dialog box.
Display area
This Mode has parameters being stored.
Shows values of “Total
dots,” “Horizontal,”
“Vertical,” “Display area H,”
and “Display area V.”

Sanyo PLC-SW30 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	3LCD
Contrast ratio (typical)	300:1
Screen size compatibility	34 - 200 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	20 °
Lamp type	UHP
Lamp power	150 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
RMS rated power	0.8 W
Number of built-in speakers	1
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Power consumption (typical)	244 W
Power consumption (PowerSave)	169 W
Focus	Manual
Throw ratio	1.6 - 1.9:1
Focal length range	- mm
Aperture range (F-F)	1.6 - 1.8
HDCP	-
Noise level	- dB
Dot clock scanning frequency	100 MHz
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	800 x 600 (SVGA)
USB connector type	USB Type-B
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	190 mm
Width	270 mm
Height	78 mm
Weight	2100 g
