- 20 -

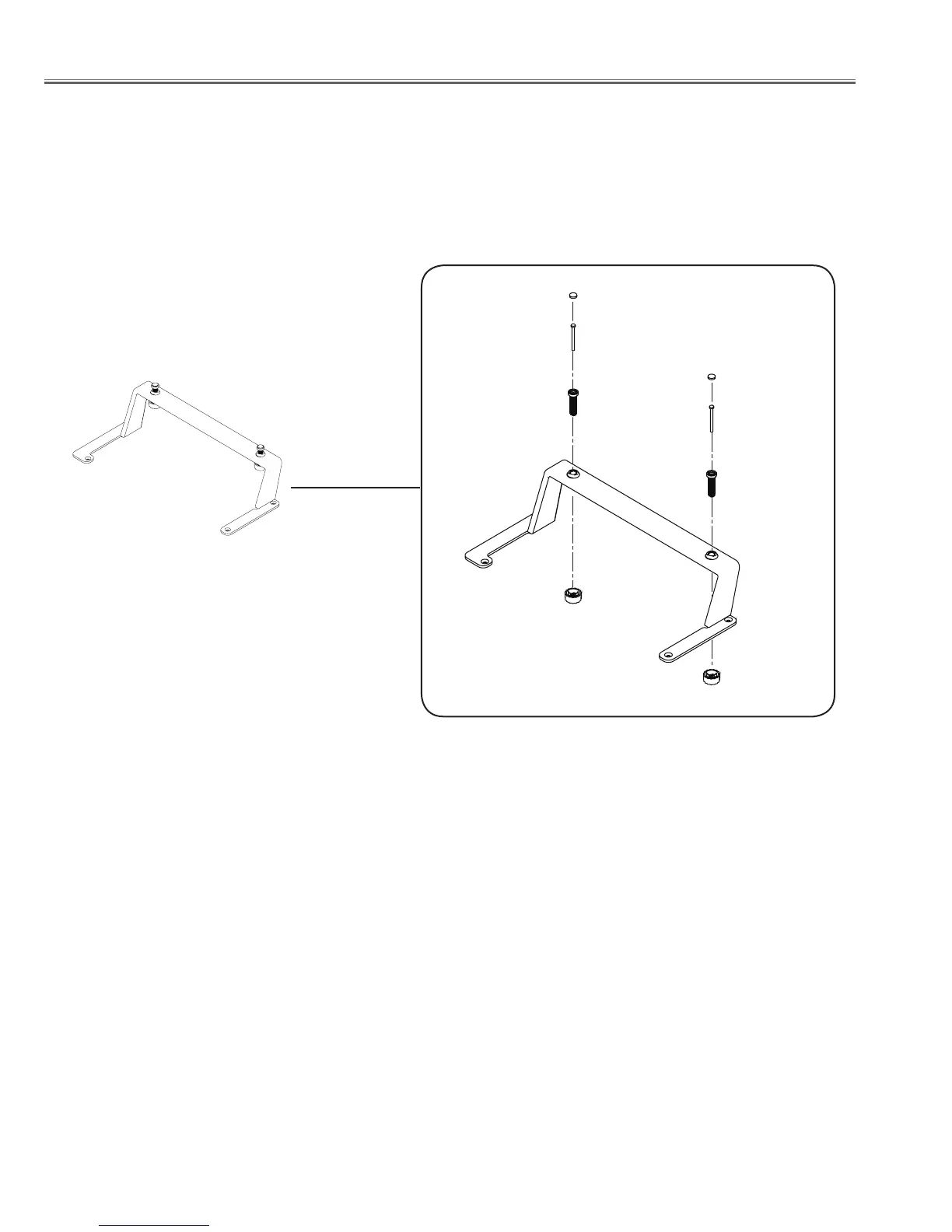

2. Remove the 2 DEC Legs.
3. Remove the 2 screws-B (M3x35).
4. Remove the 2 Stand Legs and Cap Stand Legs.
DEC Leg
B
B
DEC Leg
Stand Leg
Cap Stand Leg
Stand Leg
Cap Stand Leg
Stand Plate
Mechanical disassemblies
