- 27 -
5

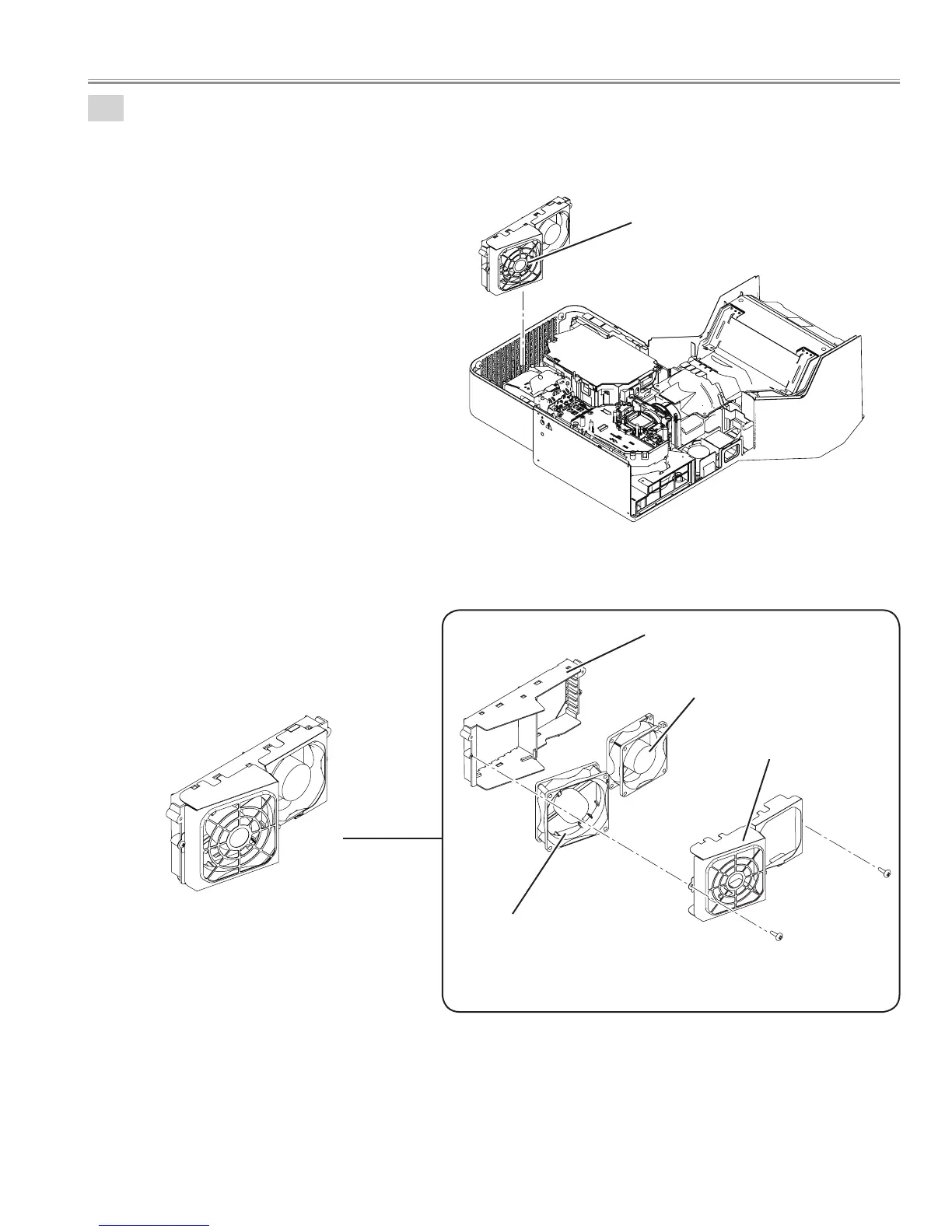

Exhaust Fan ass'y removal.
1. Remove the exhaust Fan ass'y(FN903, FN904) upward.
2. Remove the 2 screws-A(T3x8), remove the stopper exhaust Fan and remove the FN903, FN904.
Exhaust Fan ass'y
Exhaust Fan ass'y
A
A
Mounting exhaust duct
FN903
FN904
Stopper exhaust fan
Mechanical disassemblies
