- 28 -
6

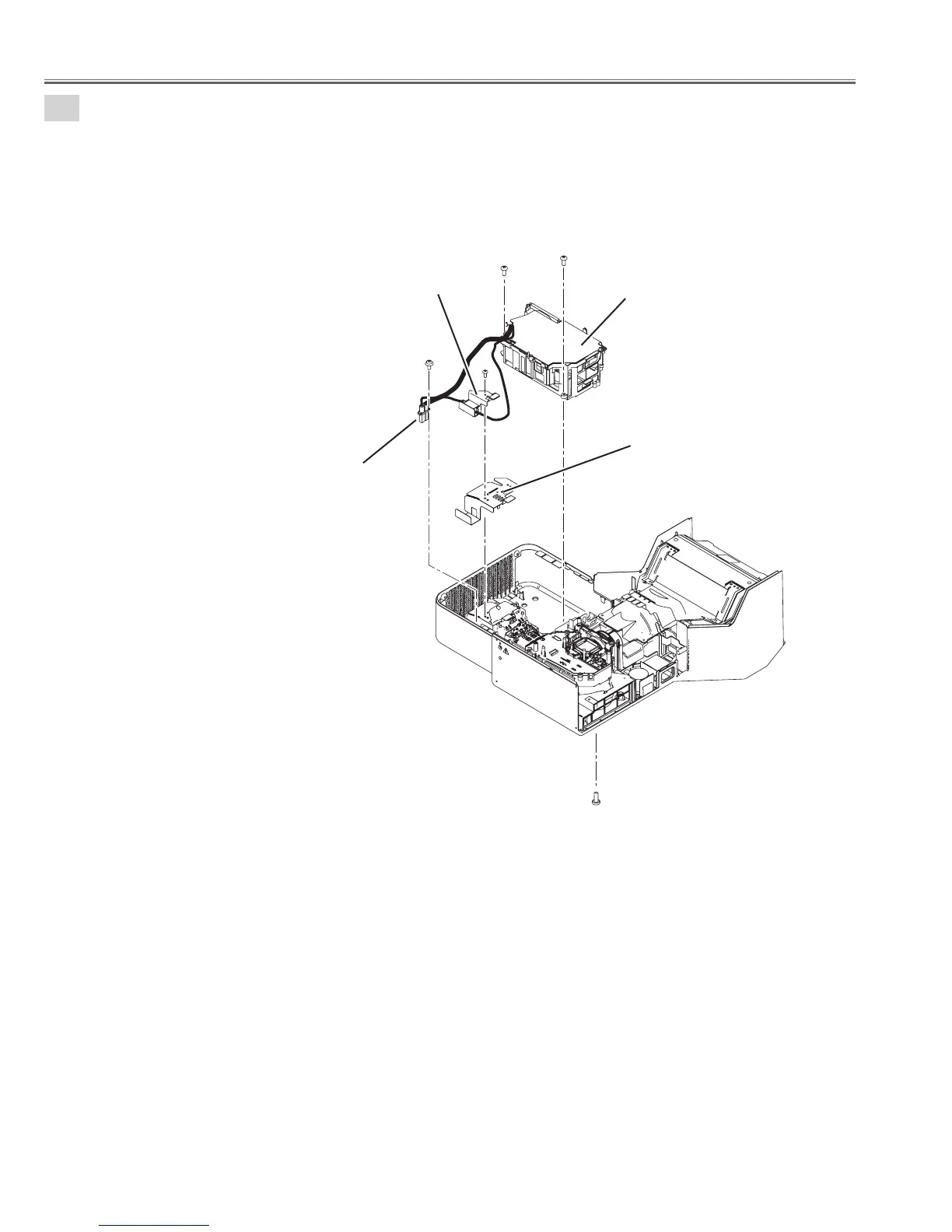

Power supply ass'y removal.
1. Remove the screw-A(M3x8) and remove the Lamp connector.
2. Remove the screw-B(M2.5x6) ,remove the Ballast trigger holder and shield plate.
3. Remove the 2 screws-C(T3x8), remove the screw-D(T3x8) and remove the Power Supply ass'y.
Lamp connector
A
B
C
C
D
Ballast trigger holder
Power supply ass'y
Shield plate
Mechanical disassemblies
