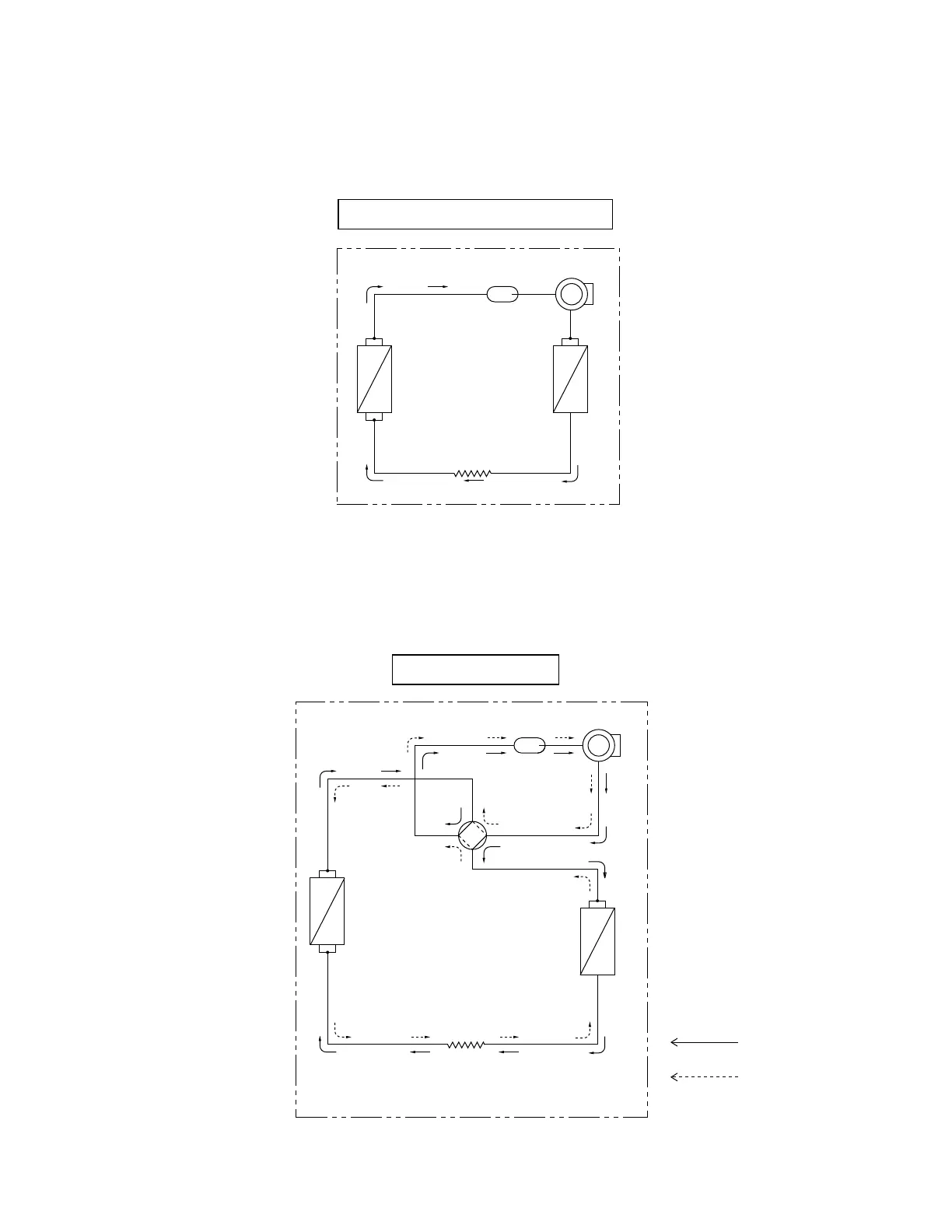

4. REFRIGERANT FLOW DIAGRAM
Compressor
4-way
valve
Accumulator
Outdoor heat
exchanger
Indoor heat
exchanger
Cooling cycle
Heating cycle
Capillary
tube
Heat Pump Models
Models STW * * * * H2
Compressor
Accumulator
Condenser
Evaporator
Capillary
tube
Cooling & Electric Heating Models
Models STW * * * * C2
