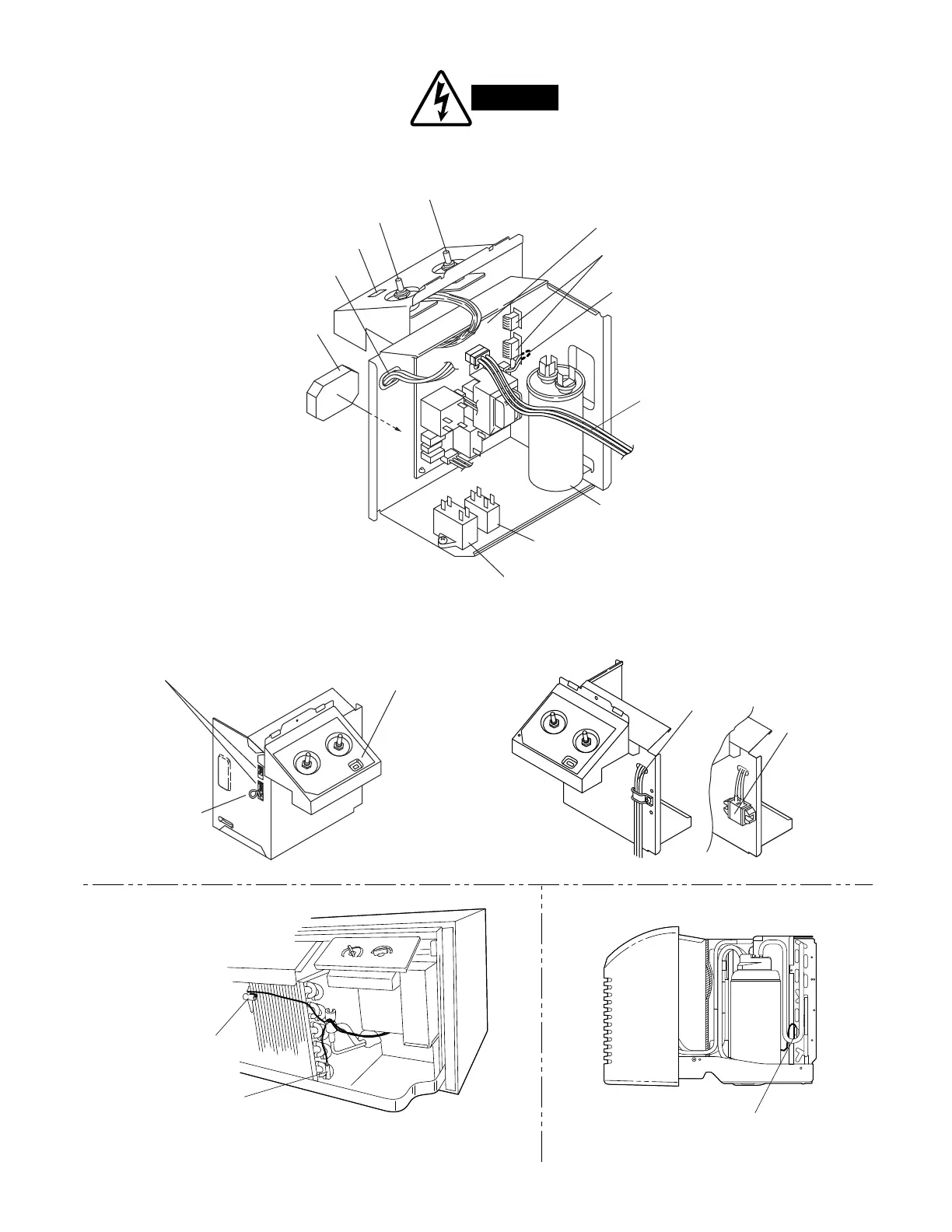

6-3. Electrical Parts Layout
Indoor coil thermistor
(IDC)
Room thermistor
(RTH)
Outdoor coil thermistor (ODC)
(Heat pump model only)
Controller
To thermistors
(RTH) (IDC) (ODC)
Jumper wire (Red)
Compressor motor
capacitor (CM)
For class 2
remote and FDC
Fan cycle switch
Power cord
(208/230V model only)
Outdoor fan motor
capacitor (FMO)
Indoor fan motor
capacitor (FMI)
Terminal base
(265V model only)
Selector switch
Thermo set
Terminal
base
Power cord
Fan cycle
switch
Jumper wire
(Red)
For class 2
remote and FDC
Left Side View Right Side View
< 265 V models >< 230 / 208 V models >
To avoid electrical shock hazard, be sure to
disconnect power before checking, servicing
and/or cleaning any electrical parts.
WARNING
