9-8. Removing Condenser

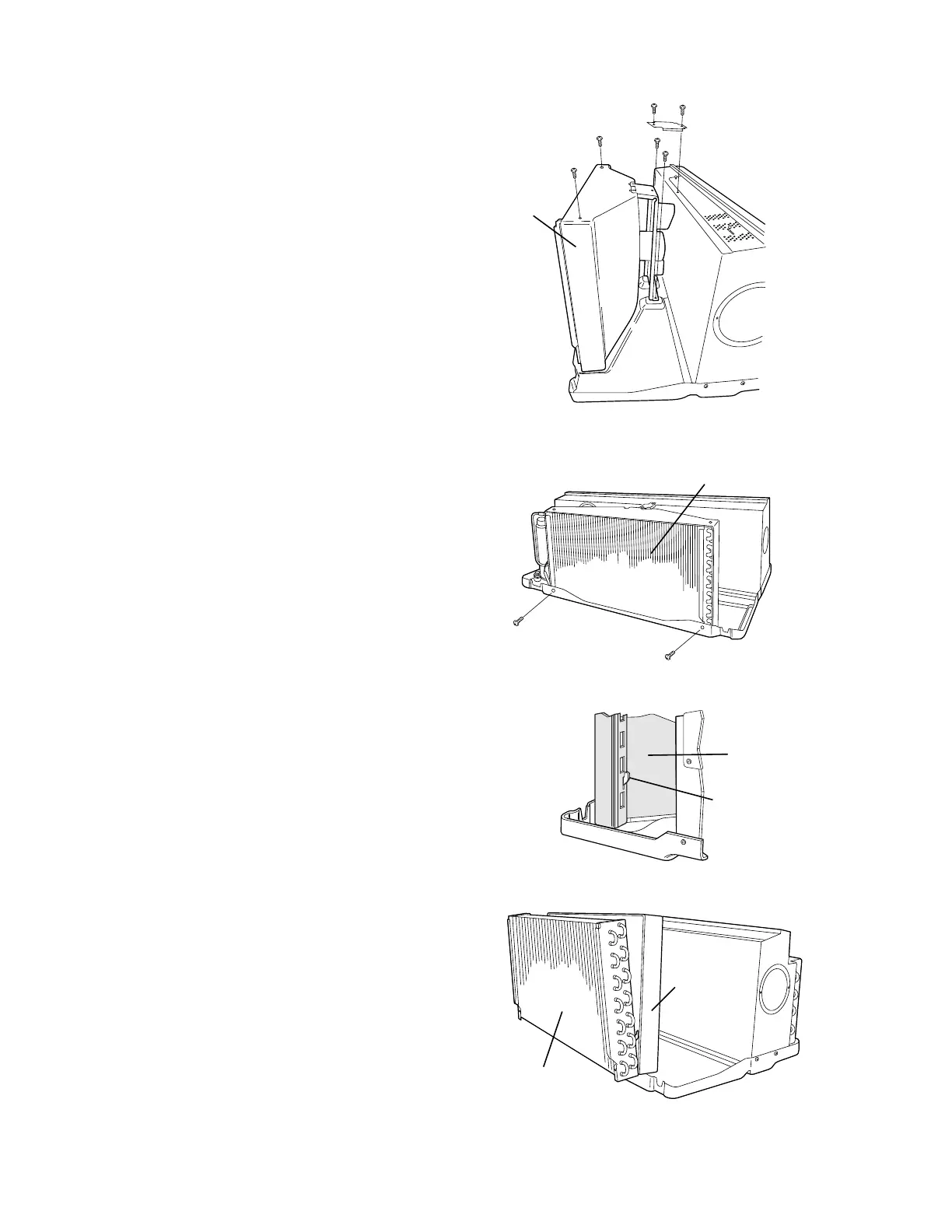

(1) Remove the screws holding the condenser casing.

(Fig. 17)

(2) Remove the screws holding the condenser at the

bottom. (Fig. 18)

(3) Lift the condenser casing off the brackets on the

front of the condenser end plates. (Fig. 19)

(4) Hold the lower part of the condenser with both

hands and tilt slightly, then lift up carefully to avoid

distorting the copper tube. (Fig. 20)

Condenser

casing

Fig. 20

Condenser

casing

Bracket of

condenser

Fig. 19

Condenser

Fig. 18

Condenser

casing

Fig. 17

Sanyo STW-2 Series Technical & Service Manual

Other manuals for Sanyo STW-2 Series
