137 English
OTHER DEVICES AND CONNECTIONS

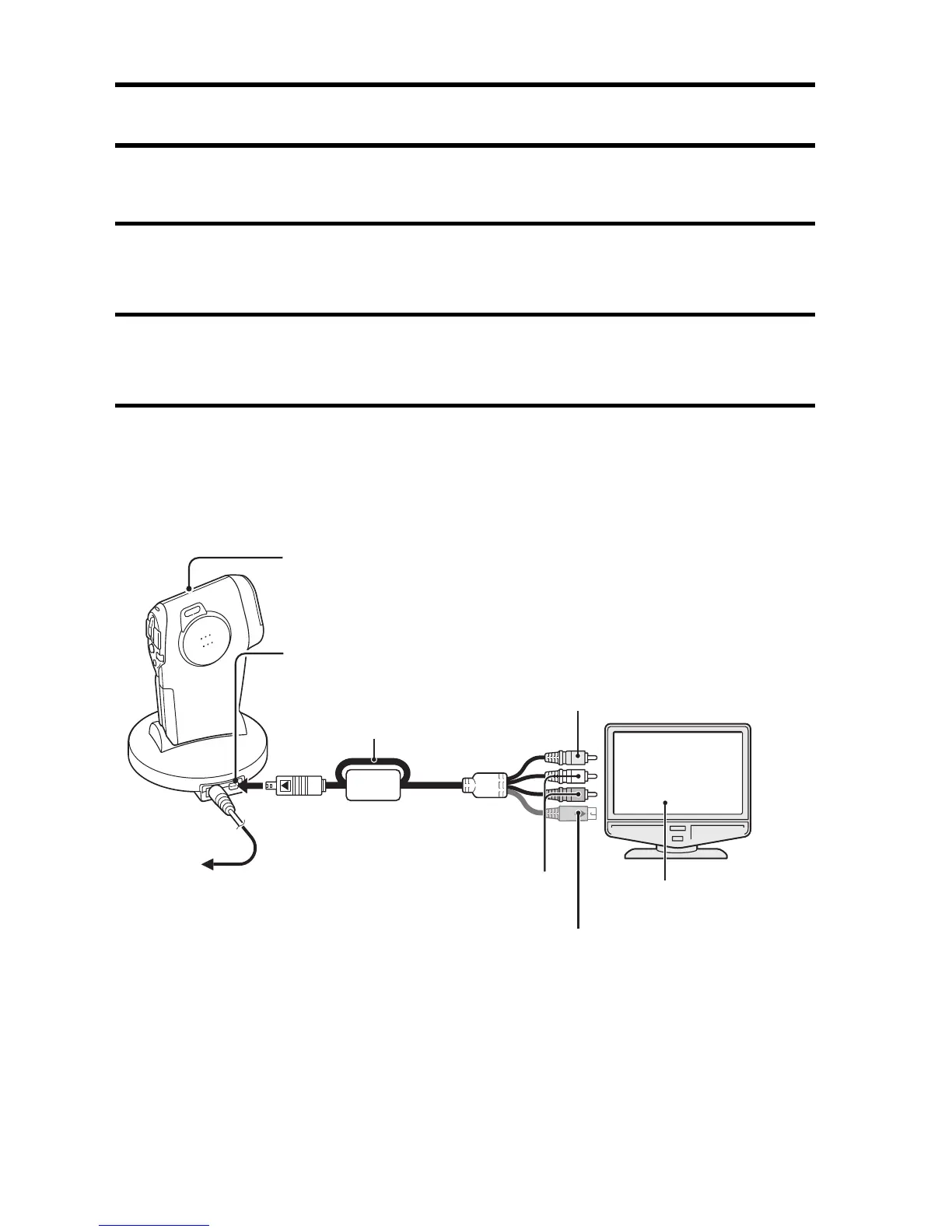

CONNECTING TO A TV
Use the supplied S-AV interface cable to connect the docking station to
the TV.
1 Connect the AC adaptor (supplied) to the docking station
(page 134).
2 Use the dedicated AV interface cable (supplied) to connect the
docking station to a TV.
3 Open the camera’s monitor unit, and set the camera in the docking
station.
h The CAMERA indicator on the docking station lights.
<When connecting to a standard video input terminal>
* When connected, the images are not produced normally on the TV
monitor.
To AC
adaptor
White plug: To Audio Input (LEFT)
terminal
Red plug: To Audio Input (RIGHT)
terminal
USB/AV terminal
Yellow plug:
To Video Input terminal
Set the input to
“VIDEO”.
Supplied S-AV
interface cable
The [n] mark on the
plug is facing down.
Not connected*
Set the “VIDEO OUTPUT” setting to “VIDEO”
(page 121).
To Next Page
