<When connecting to an S-VIDEO video input terminal>
* When connected, the images are not produced normally on the TV
monitor.
HINT
Is the docking station’s CHARGE indicator lit?
i If the camera is set in the docking station with the monitor unit closed and
the CHARGE indicator lights, the camera’s data cannot be accessed.
i Press the operation mode button [ ] on the docking station to turn on
the CAMERA indicator.
Is the power save (sleep) mode active?
i Press the operation mode button [ ] on the docking station.

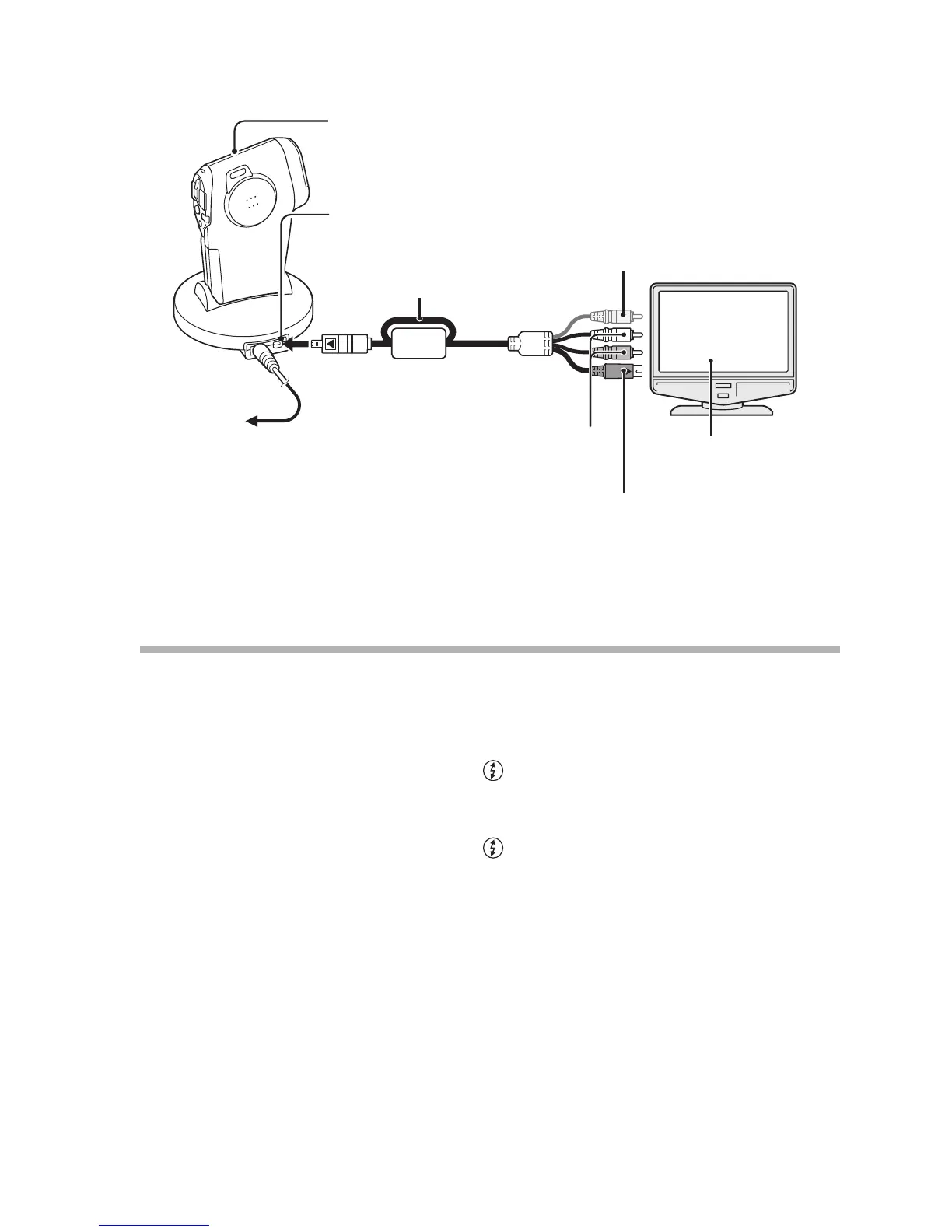

White plug: To Audio Input (LEFT)
terminal
Red plug: To Audio Input (RIGHT)
terminal
To AC
adaptor
USB/AV terminal
Yellow plug:
Not connected*
Set the input
to “VIDEO”.
Supplied S-AV
interface cable
The [n] mark on the
plug is facing down.
S-terminal
Set the “VIDEO OUTPUT” setting to
“S-VIDEO” (page 121).
