10 Operating Instructions EVO1S1 | SPO1S1

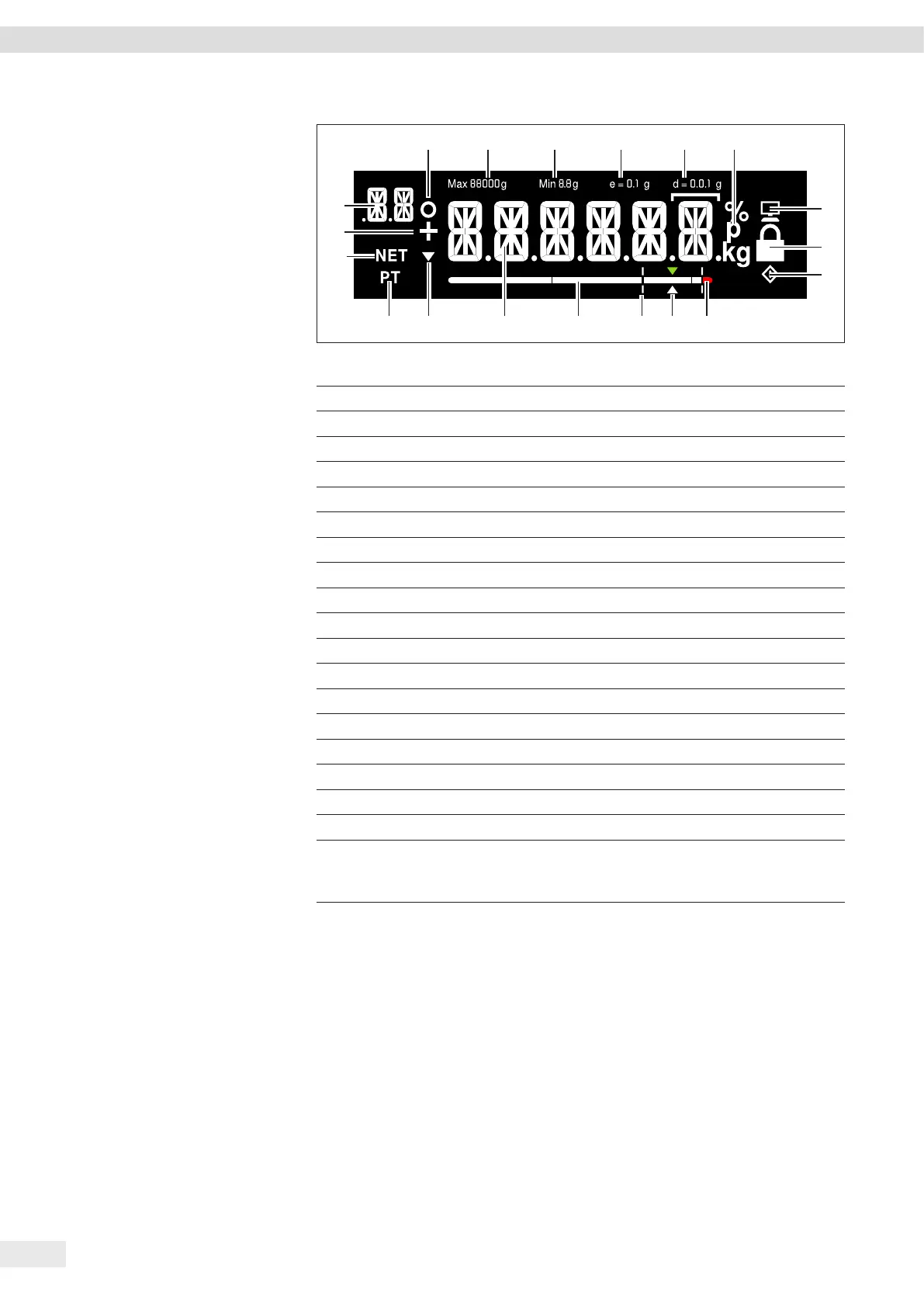

Device Overview
19
18
17
16 15 14 13 12 10
7
8
9
11
1 2 3 4 5 6
No. Function
1 Activated function in the menu list (see Chapter 3.4, page 11)
2 Maximum weighing range
3 Minimum load Min (for verified models only)
4 Verification scale intervals (verified models only)
5 Readability of the scale (scale interval d)
6 Weight unit and stability indicator
7 Communication with the PC
8 Activating the “LOCK” function / function activated
9 Busy symbol indicates that an internal process is in progress
10 Tolerance range has been exceeded
11 Target value for bar graph
12 Tolerance range
13 Bar graph: Scaled display showing capacity usage (in percent)
14 Fourteen segment display
15 Trend display
16 Info on weight entry via application keypad (preset tare)
17 Net value
18 Plus (or minus) sign of the weight
19 Display:
− Level setup level
− Component / Factor for paint-mixing applications
