ASD-150 (ASD-250)
Enter 2 digits:
1st digit – option to signal alarm from other ASD-150 / ASD-250 detectors: 0 (disabled) or 1
(enabled).
2nd digit – option to send out alarm to other ASD-150 / ASD-250 detectors: 0 (disabled) or 1
(enabled).
ATD-100 (ATD-200)
For each position taken by the detector, enter in turn:
• letter H (high temperature threshold) or L (low temperature threshold),
• number from a range of -30 to +70 (with 0.5 accuracy) to define temperature,
• number from a range of 0.5 to 10 (with 0.5 accuracy) to define tolerance.
AVD-100 (AVD-200)
Magnetic contact – enter the digit 0 (bottom reed switch) or 1 (side reed switch) to determine
which of the two reed switches is to be active. In the case of the AVD-200 detector – do not
configure.
Shock detector – enter 2 digits:
1st digit – sensitivity: from 1 to 8 (1 – minimum ; 8 – maximum).
2nd digit – the number of shocks: from 0 to 7. For the value 0, shocks are not counted. In the
case of the AVD-200 detector – do not configure.
ASP-105
Enter 2 digits:
1st digit – type of acoustic signaling: from 1 to 4.
2nd digit – maximum duration of acoustic signaling: 1 (1 minute), 2 (3 minutes), 3 (6 minutes)
or 4 (9 minutes).
ASP-205 (ASP-215)
For each position taken on the list by the siren, enter 3 digits:
1st digit – maximum duration of signaling: 1 (1 minute), 2 (3 minutes), 3 (6 minutes) or 4
(9 minutes).
2nd digit – type of acoustic signaling: 0 (disabled), 1 (sound type 1), 2 (sound type 2) or 3
(sound type 3) – see table 6.
3rd digit – optical signaling: 0 (disabled) or 1 (enabled).
1
Two sound frequencies (1450 Hz/2000 Hz) alternating within
1 second.
2
Sound with rising frequency (from 1450 Hz to 2000 Hz) within
1 second.
3
Sound with falling frequency (from 2000 Hz to 1450 Hz) within
1 second.

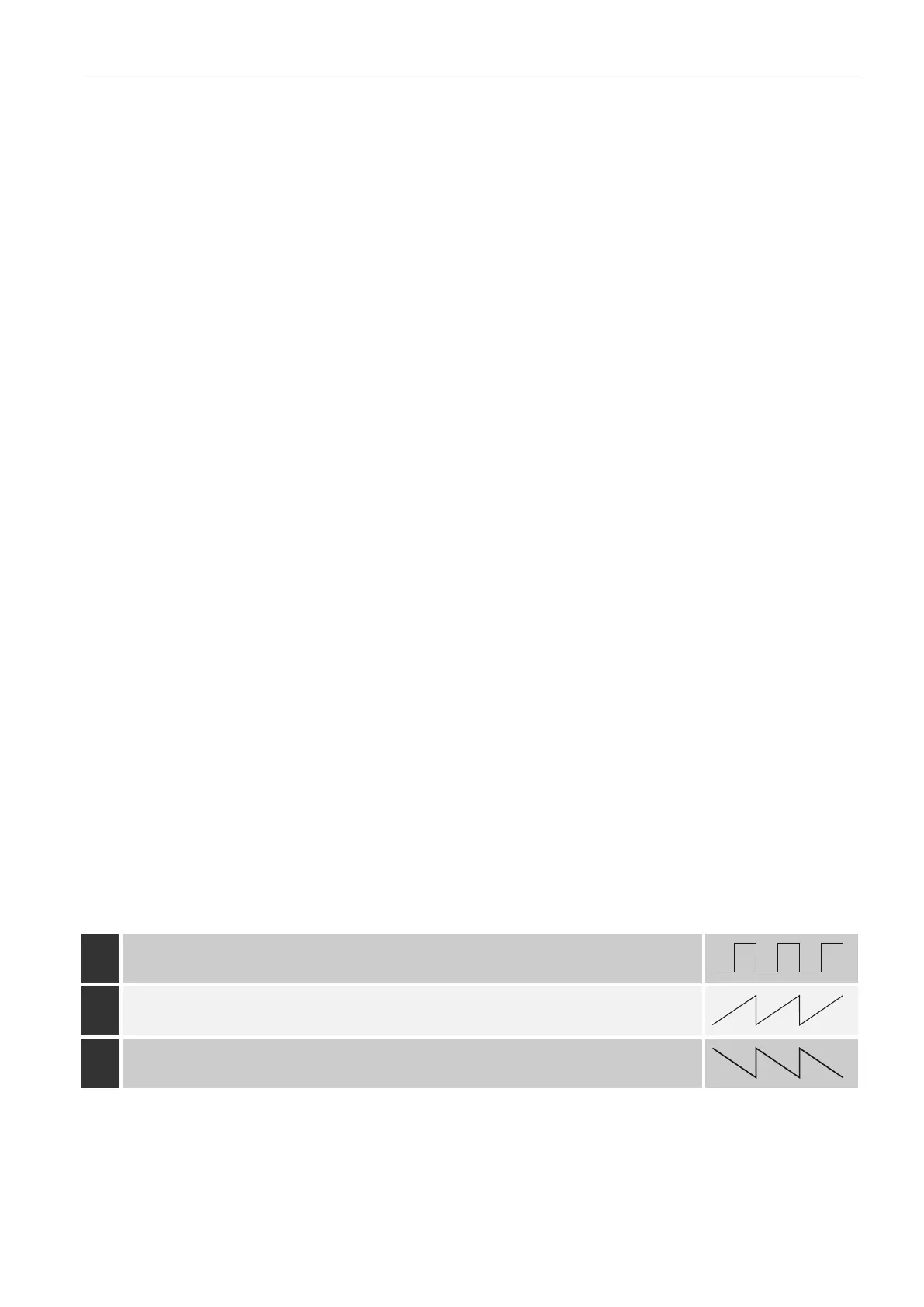

Table 6. Types of acoustic signaling available in the ASP-205 / ASP-215 siren.
ASW-100 (ASW-200)
Enter 0 (only remote control), 1 (remote or manual control) or 2 (remote or manual control,
but with option to manually block the remote control).
