SATO M-84PRO - Rear Panel

Section 2. Installation
Page 2-12 PN 9001105 Rev. A SATO M-84PRO

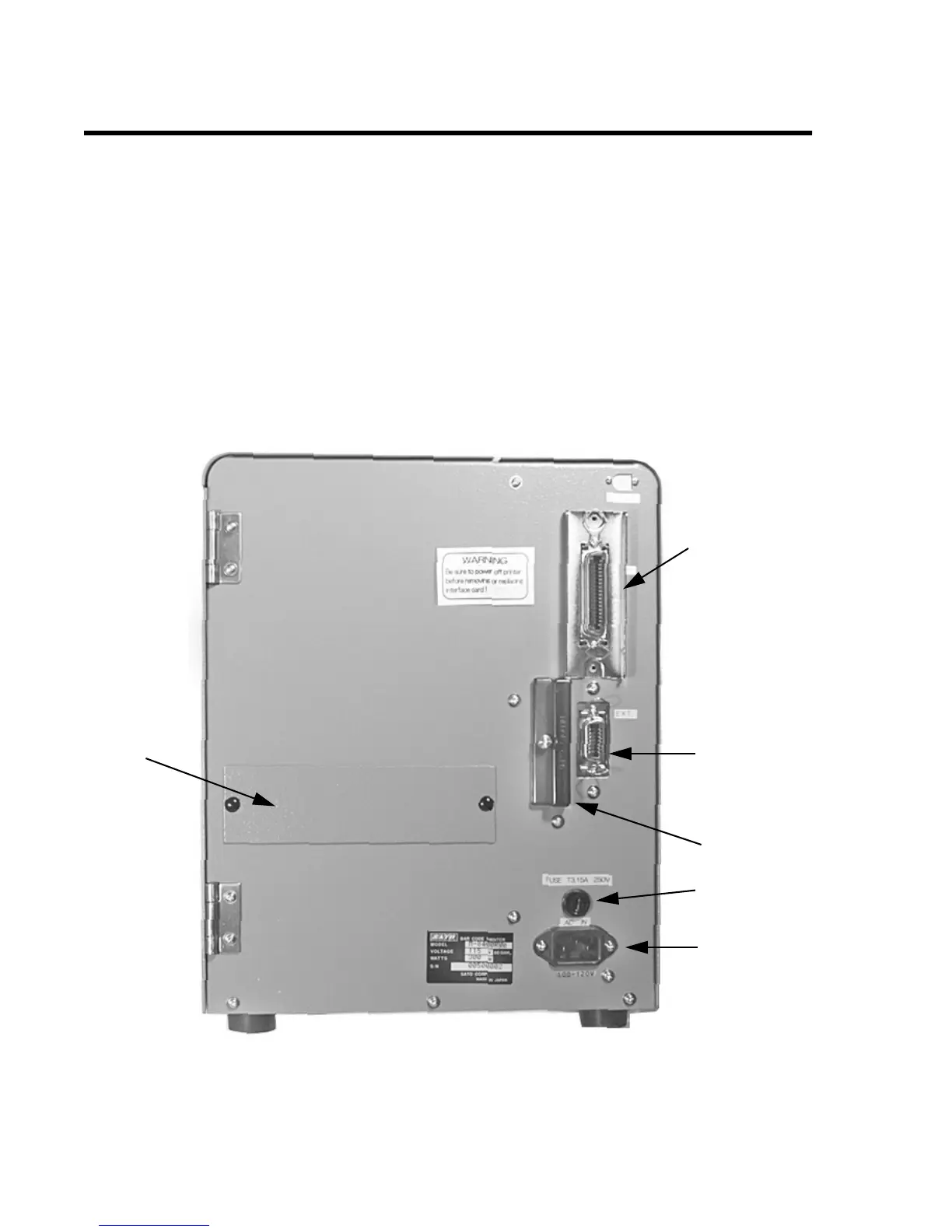

REAR PANEL
AC INPUT Input 115VAC, 50/60 Hz connector. Use cable provided.
AC FUSE Input power protection. 3A/250V rating.
INTERFACE SLOT Connector for Plug-In Interface Module.
MEMORY CARD SLOT Connector for optional PCMCIA Memory Card.
EXT External signal connector, AMP 57-60140.
EXT Port
Connector
PCMCIA
Card Cover
Fuse
AC Connector
Fan-Fold
Access Panel
Plug-In Interface
Module
