ADJUSTMENT OF HEAD POSITION, (Cont’d)
Front - Rear pressure balance (longitudinal position, forward and backward/alignment)
1.
Lock the print head in position. Locate the area represented in the figures below.
2. Loosen the screws indicated in Figure 6-10 with Phillips screwdriver. Do not completely unscrew.
3. Insert slotted screwdriver into the holes on the left and the right sides and adjust the head position by turning
the screwdriver in the relevant direction.
Direction A: Head position moves forward.
Direction B: Head position moves backward.
4. Tighten the screw loosened in Step 2.

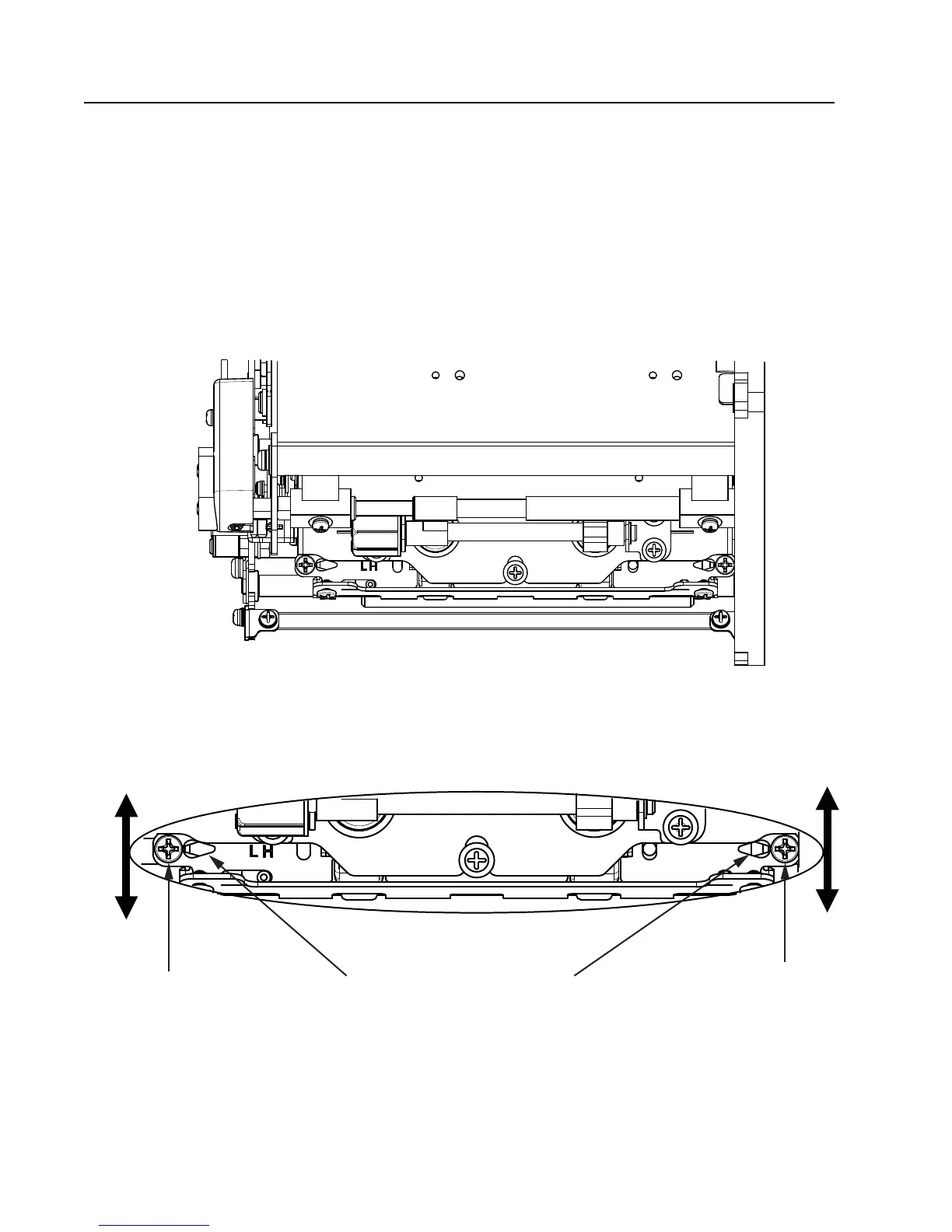

Figure 6-9, Print Head Adjustment, Front - Rear Balance
Figure 6-10, Print Head Adjustment, Enlargement of Portion of Figure 6-9
B
B
A
A
Insert slot screwdriver here
Screw
Screw
