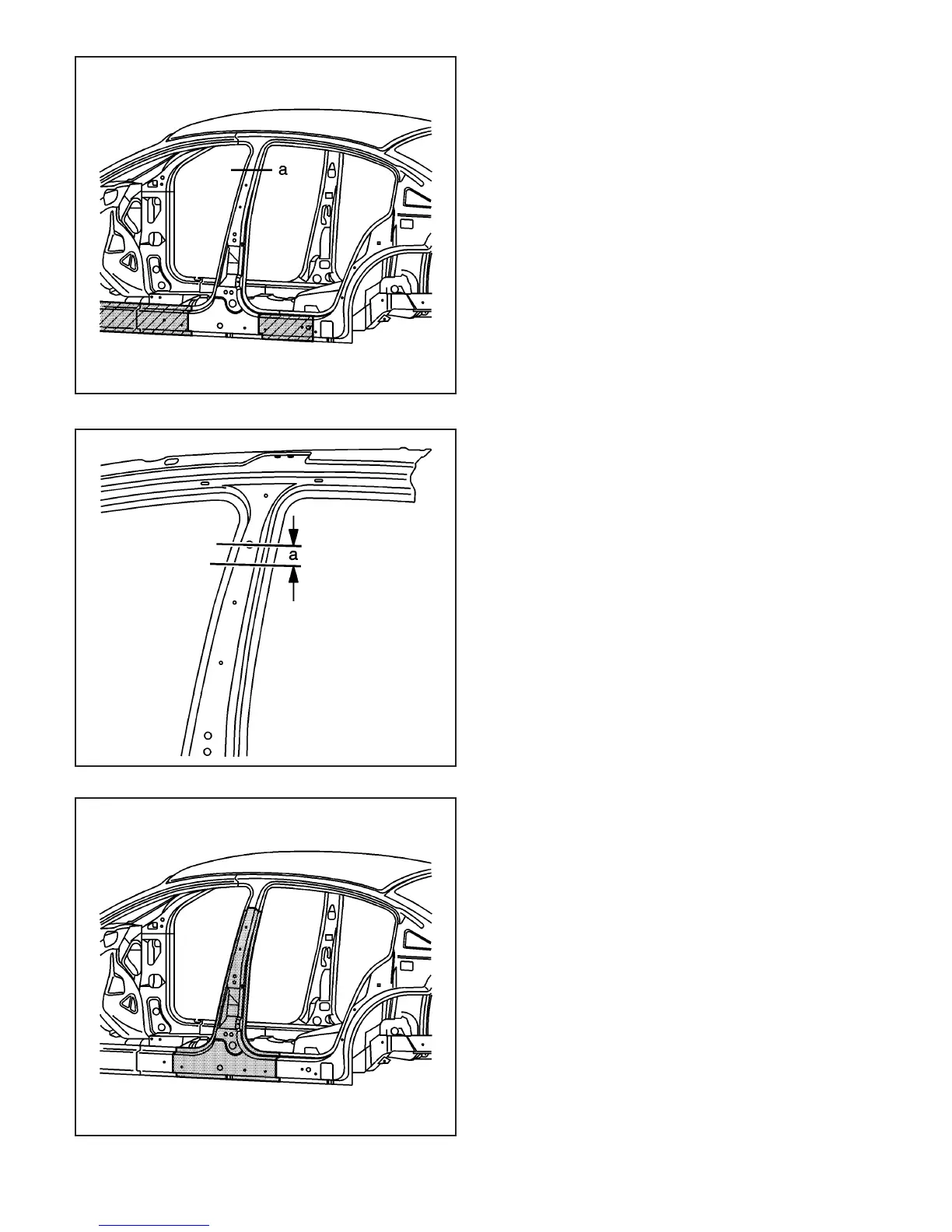

6. At the top of the center pillar, mark a line (a)
through the center of the second outer trim
attachment hole.
7. Measure down 50 mm (2 in) from the mark
created in the previous step.
Important: Sectioning procedures can only take place
in the straight areas of the body side panel.
8. Measure from any key feature in the panel. Lay
out the cut line location on the body side panel.
9. Create cut lines on the rocker panel within the
approved sectioning locations as needed.
10. Cut the panel at the center pillar where the lay out
line was previously formed.
874225
875628
876971
3-104 2003 Saturn Ion
