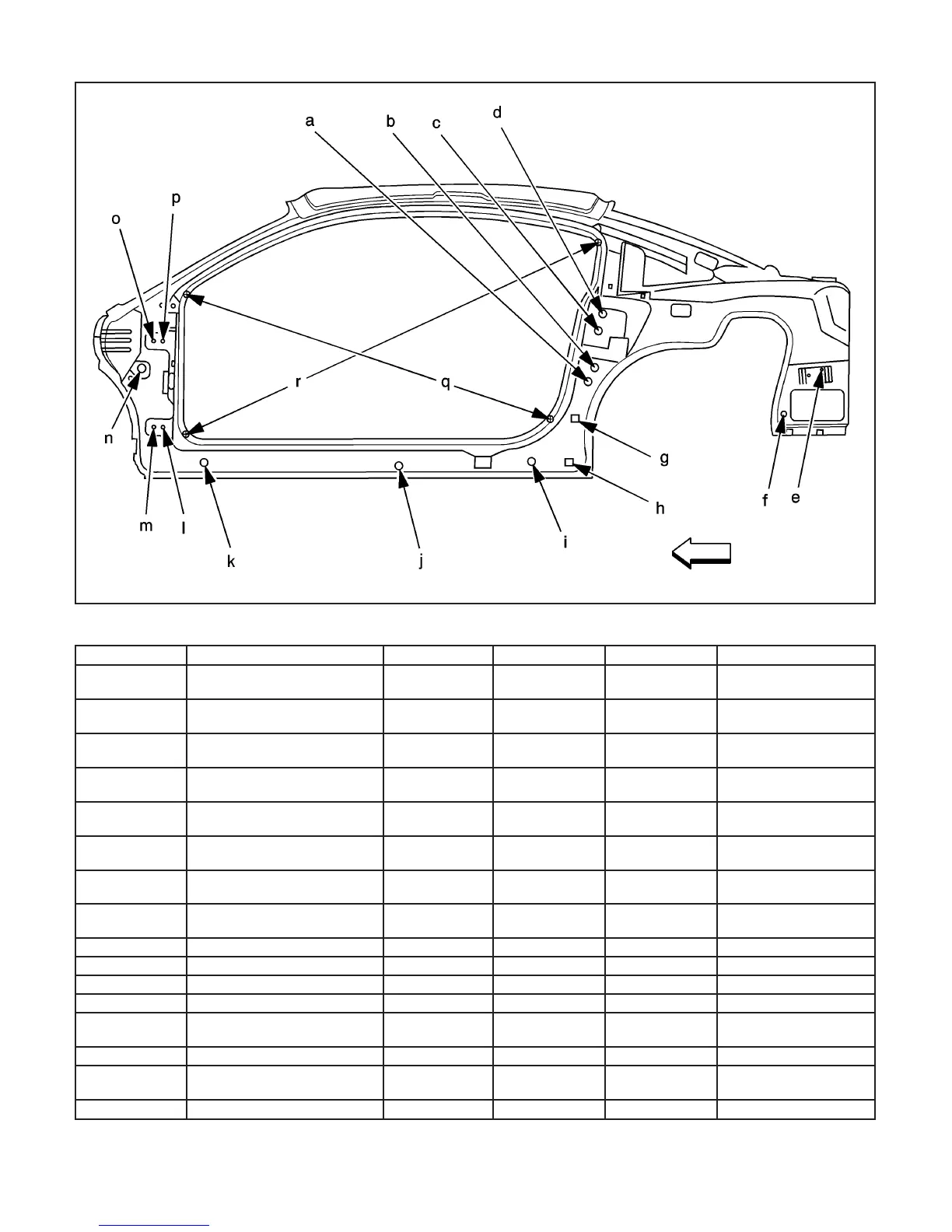

Coupe Side
Location Description Length = x Width = y Height = z Point to Point
a
Rear Lower Hinge
Lower Hole
3996 770 555 x
b
Rear Lower Hinge
Upper Hole
4046 759 649 x
c
Rear Upper Hinge
Lower Hole
4067 747 758 x
d
Rear Upper Hinge
Upper Hole
4056 738 863 x
e
Fascia Bracket Rear
Upper Hole
4989 768 798 x
f
Quarter Panel Rear Inner
Lower Hole
4822 730 445 x
g
Quarter Panel Dog Leg
Outer Attach Hole
3955 762 320 x
h
Quarter Panel Dog Leg
Outer Attach Hole
3961 762 235 x
i Rocker Panel Rear Hole 3780 762 250 x
j Rocker Panel Center Hole 3228 756 234 x
k Rocker Panel Front Hole 2432 762 250 x
l Front Lower Hinge Rear Hole 2260 750 396 x
m
Front Lower Hinge
Front Hole
2225 750 396 x
n Body Side Control Hole 2175 745 640 x
o
Front Upper Hinge
Front Hole
2225 739 754 x
p Front Upper Hinge Rear Hole 2260 739 754 x
876935
3-8 2003 Saturn Ion
