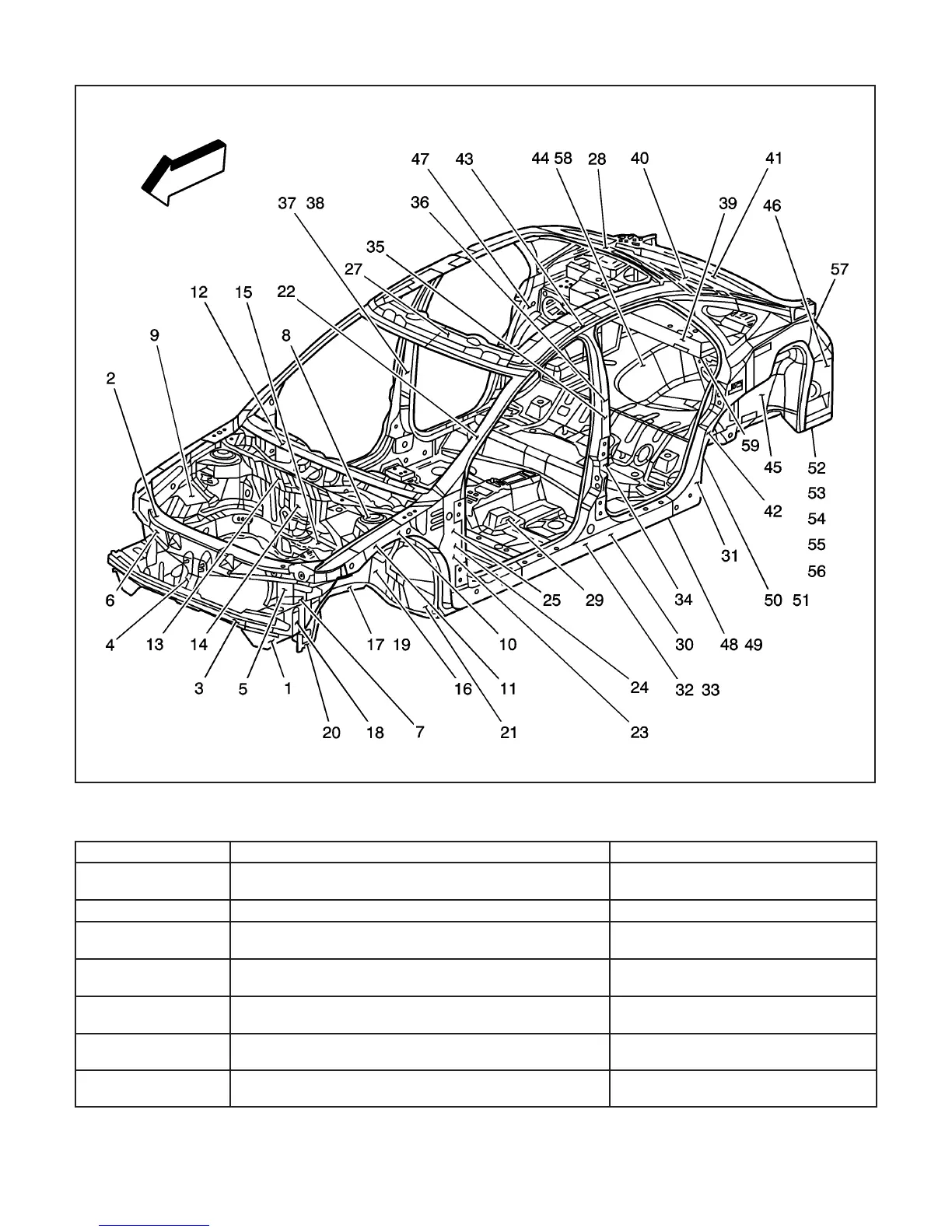

Saturn 2003 Ion - Structural Identification and Dimensions; Structure Identification Diagram

Structure Identification
Structure Identification
Number Description Procedure
1
Impact Bar Bracket Replacement – Front Bumper
Impact Bar Bracket Replacement -
Front Bumper on page 3-15
2 Tie Bar Replacement Tie Bar Replacement on page 3-17
3
Tie Bar Replacement – Lower
Tie Bar Replacement - Lower on
page 3-21
4
Latch Primary Support Replacement – Hood
Latch Primary Support Replacement -
Hood on page 3-26
5
Tie Bar Replacement – Left
Tie Bar Replacement - Left on
page 3-19
6
Tie Bar Replacement – Right
Tie Bar Replacement - Right on
page 3-23
7
Bracket Replacement Side Rail – Front Compartment
Bracket Replacement Front
Compartment - Side Rail on page 3-30
