Location Description Length = x Width = y Height = z Point to Point
q
Door Opening Point to Point
Measurement to Weld
Flange Die Marks
x x x 1588
r
Door Opening Point to Point
Measurement to Weld
Flange Die Marks
x x x 1868
All dimensions are measured from a zero line, a center line, and a common datum. All dimensions are symmetrical unless
otherwise specified.

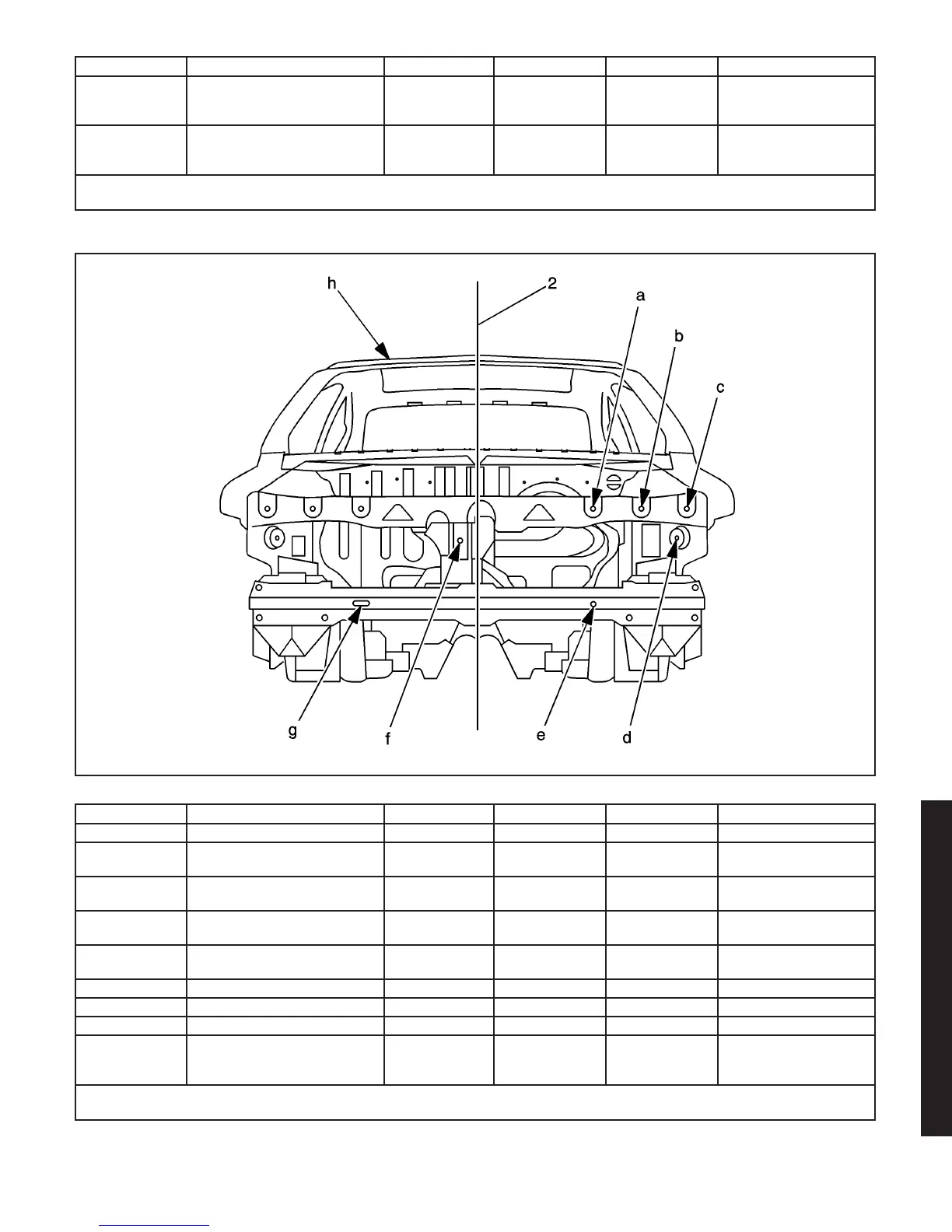

Front End
Location Description Length = x Width = y Height = z Point to Point
2 Center Line — — — x
a
Front Lamp Assembly Inner
Attach Hole
1146 327 675 x
b
Front Lamp Assembly Center
Attach Hole
1208 458 682 x
c
Front Lamp Assembly Outer
Attach Hole
1271 589 676 x
d
Front Lamp Assembly Lower
Attach Hole
1307 561 594 x
e Lower Tie Bar Outer Hole 998 314 428 x
f Center Brace Hole 1089 17 568 x
g Lower Tie Outer Slot 998 314 428 x
h
Front Header Panel Roof
Attachment Hole
(Sedan and Coupe)
2799 297 1307 x
All dimensions are measured from a zero line, a center line, and a common datum. All dimensions are symmetrical unless
otherwise specified.
