Saturn 2003 Ion User Manual

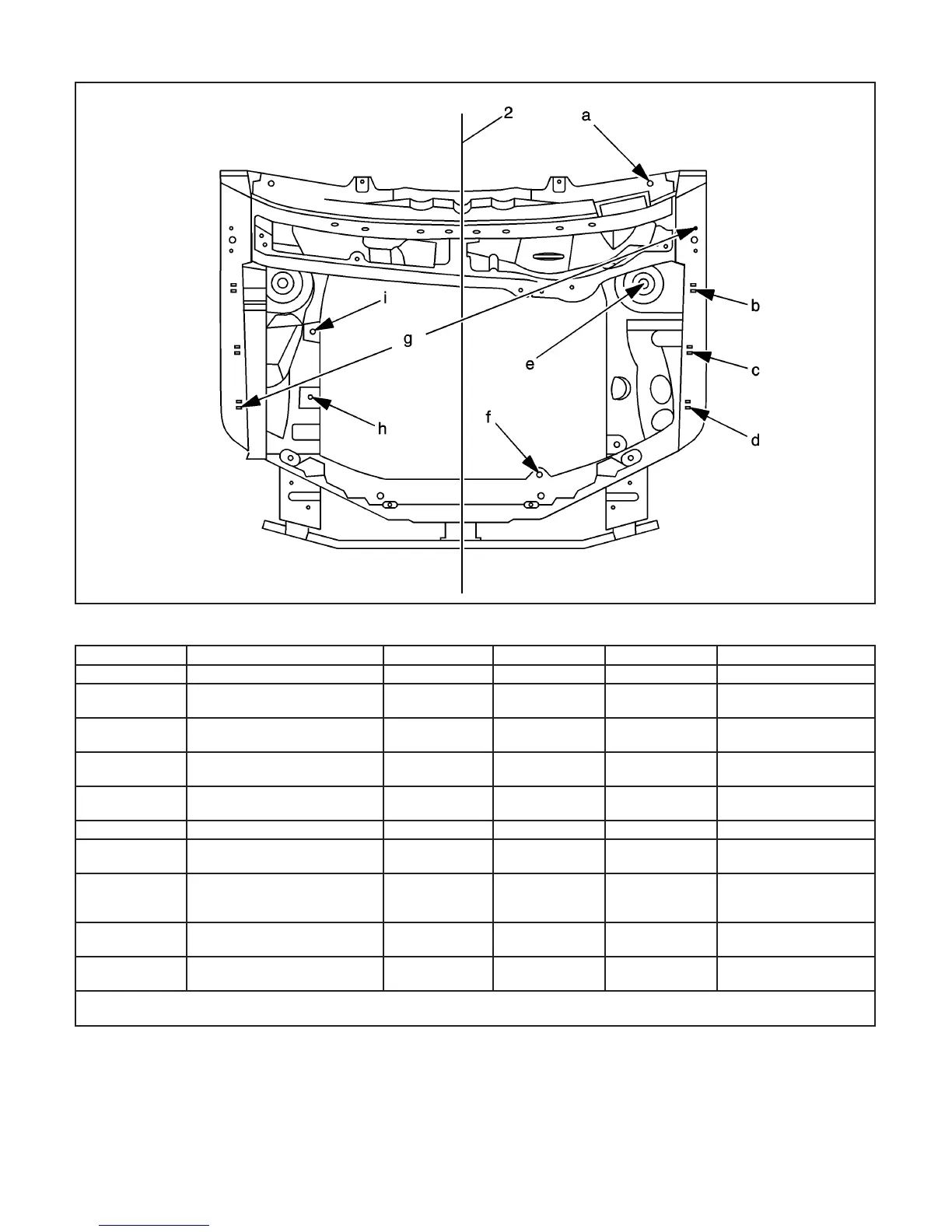

Engine Compartment
Location Description Length = x Width = y Height = z Point to Point
2 Center Line — — — x
a
Upper Cowl Panel Rear
Flange Hole
2115 590 873 x
b
Front Upper Rail Rear
Fender Attach
1786 698 805 x
c
Front Upper Rail Center
Fender Attach
1594 688 773 x
d
Front Upper Rail Front
Fender Attach
1425 681 739 x
e Strut Tower Center Hole 1811 553 815 x
f
Front Upper Tie Bar Rear
Flange Hole
1226 232 700 x
g
Point to Point Front Fender
Attach Hole to Rear Hinge
Attach Hole
— — — 1499
h
Front Engine Mount Hole
Rail Surface Not Top of Stud
1461 470 515 x
i
Rear Engine Mount Hole Rail
Surface Not Top of Stud
1657 465 515 x
All dimensions are measured from a zero line, a center line, and a common datum. All dimensions are symmetrical unless
otherwise specified.
876940
3-12 2003 Saturn Ion
