Saturn 2003 Ion - Page 144

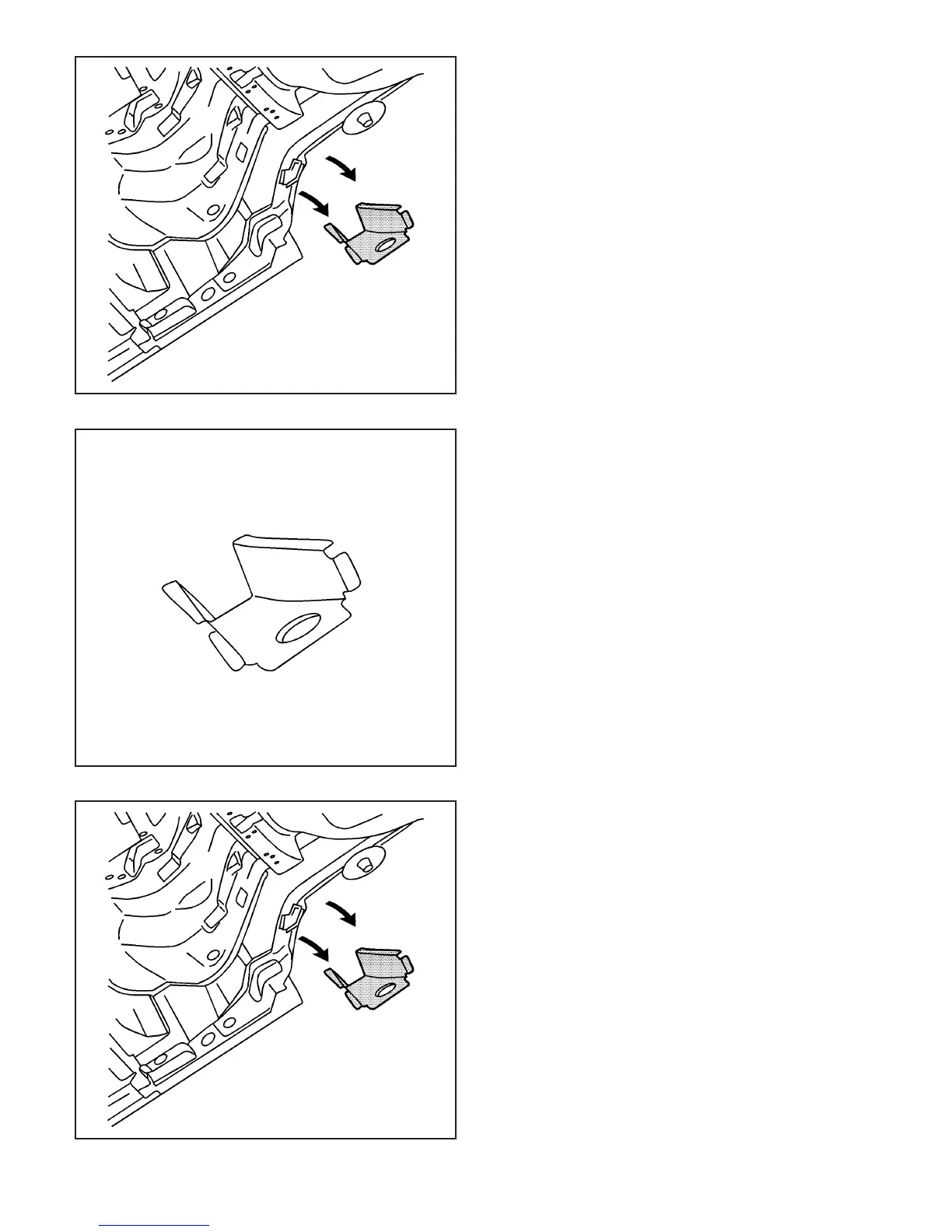

7. Remove the #5 bar extension.
Installation Procedure
Important: If the location of the original plug weld
holes can not be determined, space the plug
weld holes every 40 mm (1 1/2 in) apart.
1. Drill 8 mm (5/16 in) plug weld holes in the service
part as necessary in the locations noted from the
original panel.
2. Prepare all mating surfaces as necessary.
3. Apply 3M
®
Weld-Thru coating P/N 05916 or
equivalent to all mating surfaces.
4. Position the #5 bar extension.
874205
874199
874205
3-144 2003 Saturn Ion
