Important: With the AIR BAG fuse removed and the
ignition switch in the ON position, the AIR BAG
warning indicator illuminates. This is normal operation,
and does not indicate an SIR system malfunction.
5. Locate and remove the AIR BAG fuse from
the body control module fuse center.

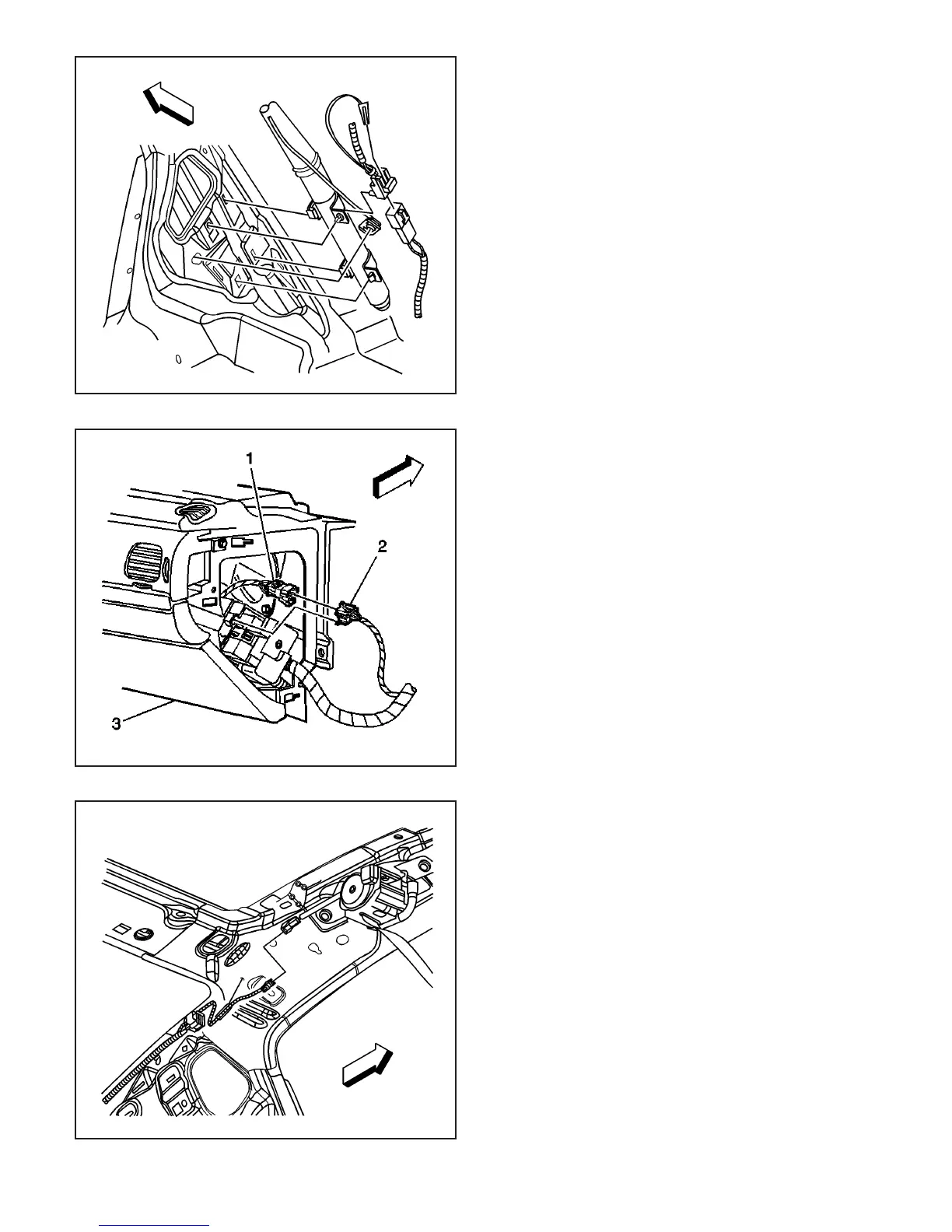

6. Remove the garnish molding from the upper
lock pillar.
7. Remove the connector position assurance (CPA)
from the right/passenger roof rail module yellow
connector.
8. Disconnect the right roof rail module yellow
connector from the vehicle harness yellow
connector.
9. Remove the passenger/right outer trim cover from
the I/P (3).
10. Remove the CPA from the I/P module yellow
connector (1).
11. Disconnect the I/P module yellow connector (1)
from the vehicle harness yellow connector (2).
12. Remove the coat hooks.
13. Remove the trim panel from the high mount stop
lamp by pulling at the clip locations.
14. Gently pull back on the headliner to access the
right/passenger pretensioner connector.
15. Remove the connector position assurance (CPA)
from the right/passenger connector.
16. Disconnect the right/passenger pretensioner
connector
899820
816857
899819
3-178 2003 Saturn Ion
