Saturn 2003 Ion User Manual

7. Remove the side rail bracket from the front
compartment lower rail.
Installation Procedure
Important: If the location of the original plug weld
holes can not be determined, space the plug
weld holes every 40 mm (1 1/2 in) apart.
1. Drill 8 mm (5/16 in) plug weld holes in the service
part as necessary in the locations noted from the
original panel.
2. Prepare all mating surfaces as necessary.
3. Apply 3M Weld-Thru Coating P/N 05916 or
equivalent to all mating surfaces.

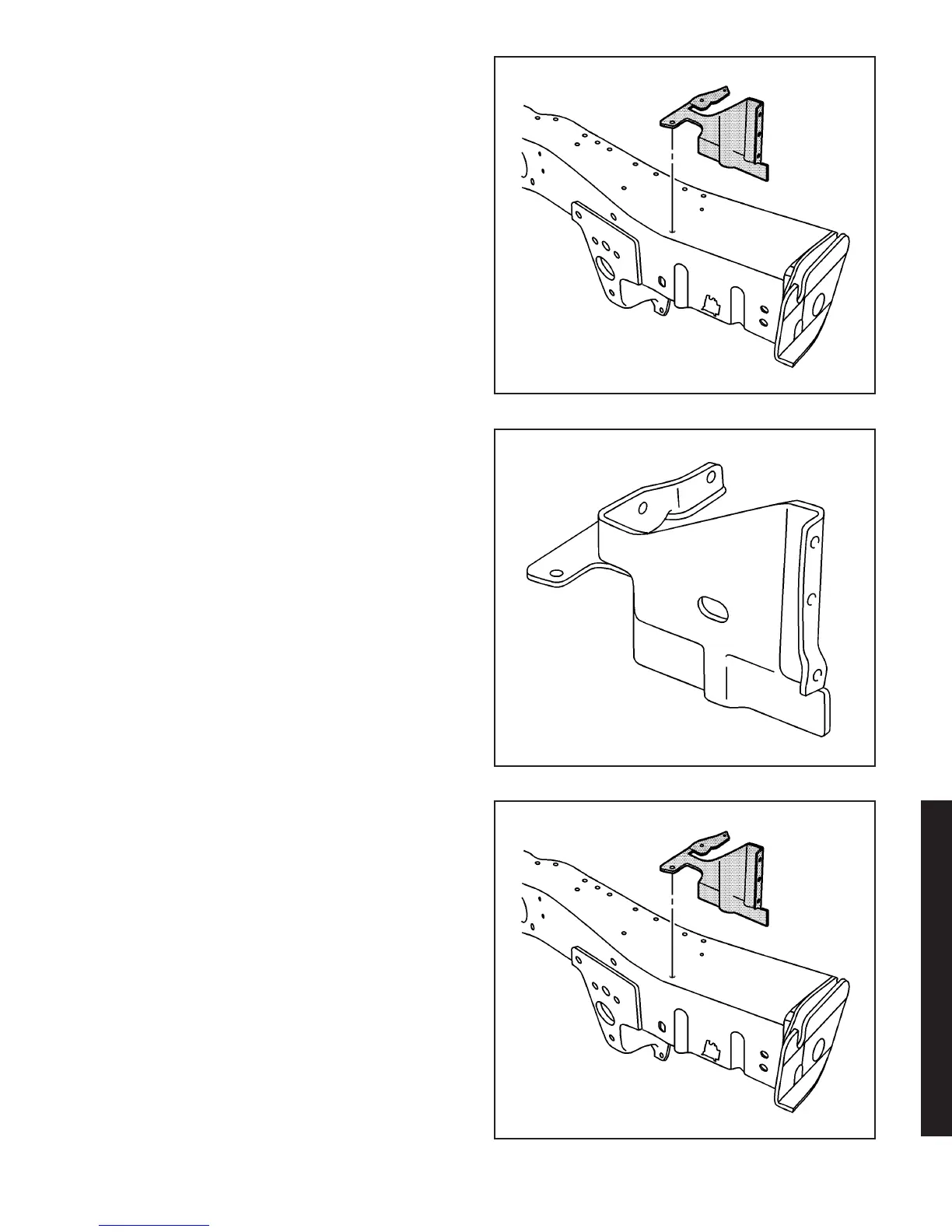

4. Position the side rail bracket to the front
compartment lower rail and tie bar side panel.
Clamp the bracket in place.
867618
865267
867618
2003 Saturn Ion 3-31
