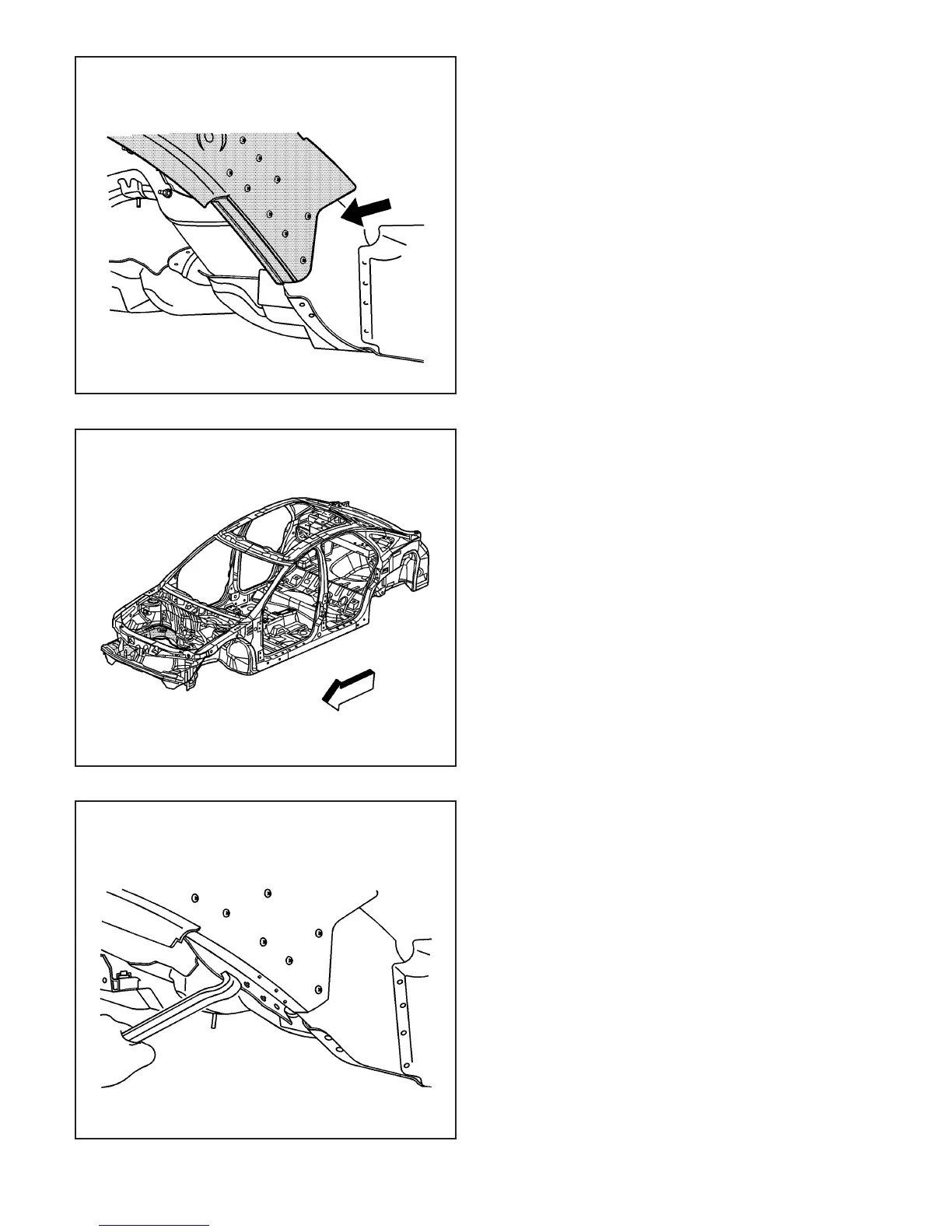

6.
Locate
the
area
where
the
front
compartment
will
be
separated
from
the
rail.
7.
Locate
and
drill
the
factory
welds
along
the
flanges
of
the
rail,
only
up
to
and
including
the
rail
mid
joint
just
forward
of
the
dash
panel.
8.
Drill
out
the
factory
welds.
9.
Pry
open
the
outer
layer
of
the
rail
at
the
front
rail
mid
joint
to
allow
the
front
portion
of
the
rail
to
be
removed
from
the
vehicle.
872672
867545
867551
3-56
2003
Saturn
Ion
55
57
Table of Contents
Description and Operation
1
General Body Construction (Unibody)
1
Door Frame Description
1
Component Locator
2
Panel Identification
2
Structure Identification
4
Specifications
7
Dimensions - Body
7
Coupe Side
8
Front End
9
Underbody
10
Engine Compartment
12
Sedan Side
13
Repair Instructions
15
Impact Bar Bracket Replacement - Front Bumper
15
Installation Procedure
16
Tie Bar Replacement
17
Tie Bar Replacement - Left
19
Tie Bar Replacement - Lower
21
Tie Bar Replacement - Right
23
Latch Primary Support Replacement - Hood
26
Battery Tray Replacement
28
Bracket Replacement Front Compartment - Side Rail
30
Wheelhouse Replacement - Front
32
Wheelhouse Extension Replacement - Front
34
Rail Replacement Front Compartment - Side Upper
36
Installation Procedure
38
Rail Sectioning Front Compartment - Side Upper
39
Plenum Panel Replacement - Upper
43
Plenum Panel Replacement - Lower
45
Dash Panel Replacement
48
Cross Bar No.1 Replacement - Floor Panel
51
Rail Replacement Front Compartment - Front
53
Rail Replacement Front Compartment - Front Half
55
Rail Sectioning Front Compartment - Front
59
Rail Replacement Front Side Underbody - Outer
63
Suspension Support Replacement - Front
66
Extension Replacement Front Compartment Side Rail - Rear
68
Windshield Frame Reinforcement Replacement - Inner Upper
70
Installation Procedure
72
Hinge Pillar Body Reinforcement Replacement - Front Inner
73
Hinge Pillar Body Replacement - Front Inner
75
Hinge Pillar Body Sectioning - Front
78
Roof Panel Replacement - Outer
81
Windshield Frame Header Panel Replacement - Front
85
Rear Window Frame Header Panel Replacement - Rear
87
Floor Panel Replacement - Center
89
Rocker Panel Replacement - Inner
93
Rocker Panel Extension Replacement - Inner
95
Rocker Panel Reinforcement Replacement - Inner
97
Rocker Panel Reinforcement Sectioning - Inner
100
Pillar Lock Front Door Sectioning - Outer
103
Pillar Lock Front Door Reinforcement Replacement - Outer
107
Pillar Lock Front Door Reinforcement Sectioning - Outer
109
Pillar Lock Front Door Replacement - Inner
112
Rear Window Reinforcement Replacement - Lower Front
114
Rear Window Panel Replacement
116
Rear Window Reinforcement Replacement - Rear
119
Pillar Lock Rear Door Replacement - Inner
121
Body Side Panel Replacement - Outer
123
Rear Compartment Floor Panel Sectioning
126
Wheelhouse Replacement - Rear Inner
130
Quarter Panel Sectioning - Outer
133
Quarter Panel Replacement - Inner
136
Cross Bar No.4 Extension Replacement - Floor Panel
138
Cross Bar No.4 Replacement - Floor Panel
140
Cross Bar No.5 Extension Replacement - Floor Panel
143
Cross Bar No.5 Replacement - Floor Panel
145
Rail Replacement Rear Side Underbody
147
Rail Sectioning Rear Side Underbody
150
Rail Underbody Gusset Replacement - Rear
155
Rail Underbody Reinforcement Replacement - Rear
157
Impact Bar Anchor Plate Replacement - Rear Bumper
160
Body Rear End Panel Replacement
162
SIR Zone Identification Views
166
Component Locator
166
SIR Disabling and Enabling Zone 2 (Coupe)
167
SIR Disabling and Enabling Zone 2 (Sedan)
169
SIR Disabling and Enabling Zone 3
171
SIR Disabling and Enabling Zone 5
172
SIR Disabling and Enabling Zone 6 (Coupe)
173
SIR Disabling and Enabling Zone 6 (Sedan)
175
SIR Disabling and Enabling Zone 8 (Coupe)
177
SIR Disabling and Enabling Zone 8 (Sedan)
182
