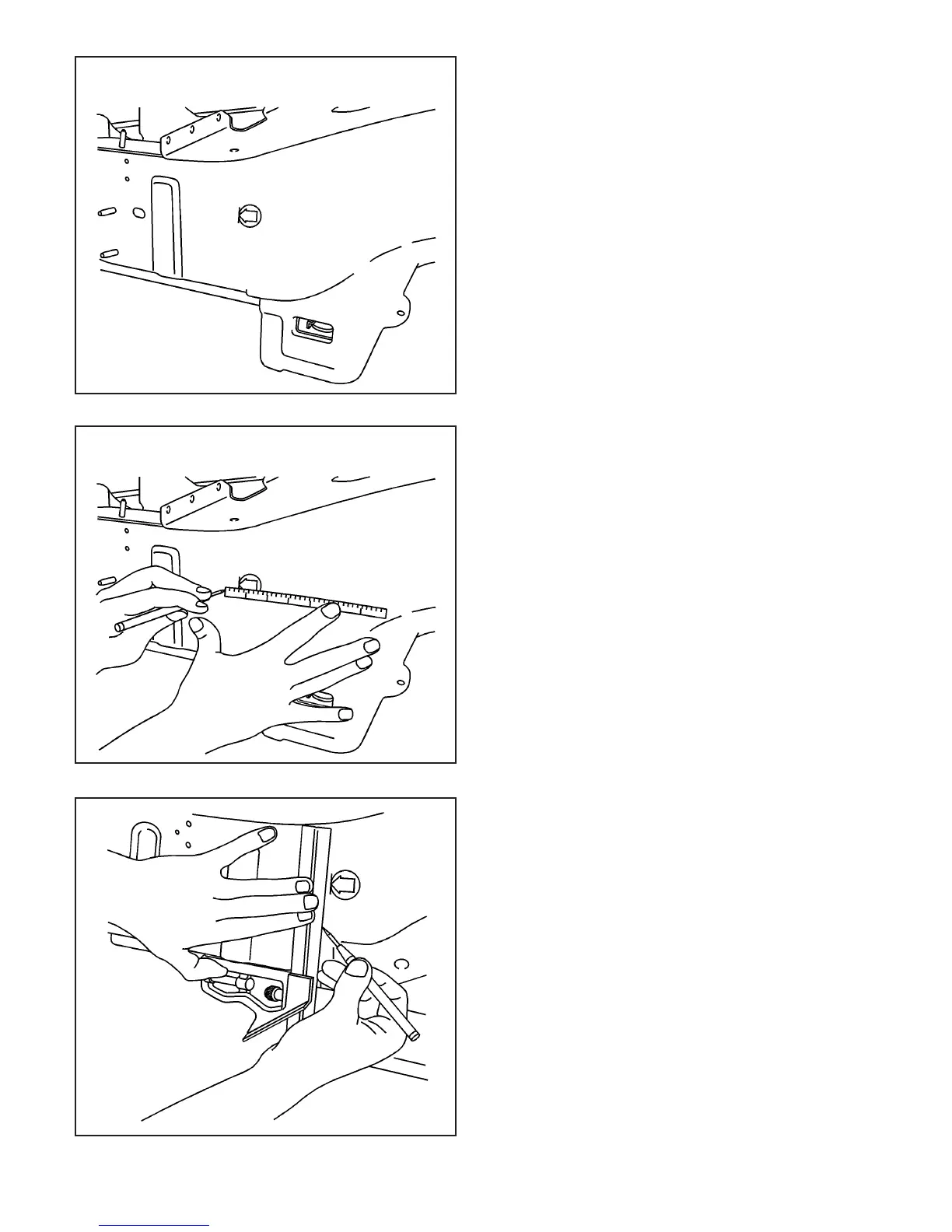

6. Locate the die marks on the inner and outer
halves of the front rail.
Important: Do not section the rail except where
indicated.
7. Measure forward of the straight line shown on the
die marks 7 mm (
1
⁄ 4 in). Mark the rail at both die
mark locations.
8. At the marks made forward of the die marks, align
a sliding square or similar tool to the bottom side
of the front rail. Scribe a line 360 degrees
around the frame rail, 7 mm (
1
⁄ 4 in) forward of the
die marks.
867581
867583
867585
3-60 2003 Saturn Ion
