Savant IP Video with Audio Processing Deployment Guide
Copyright © 2018 Savant System, LLC

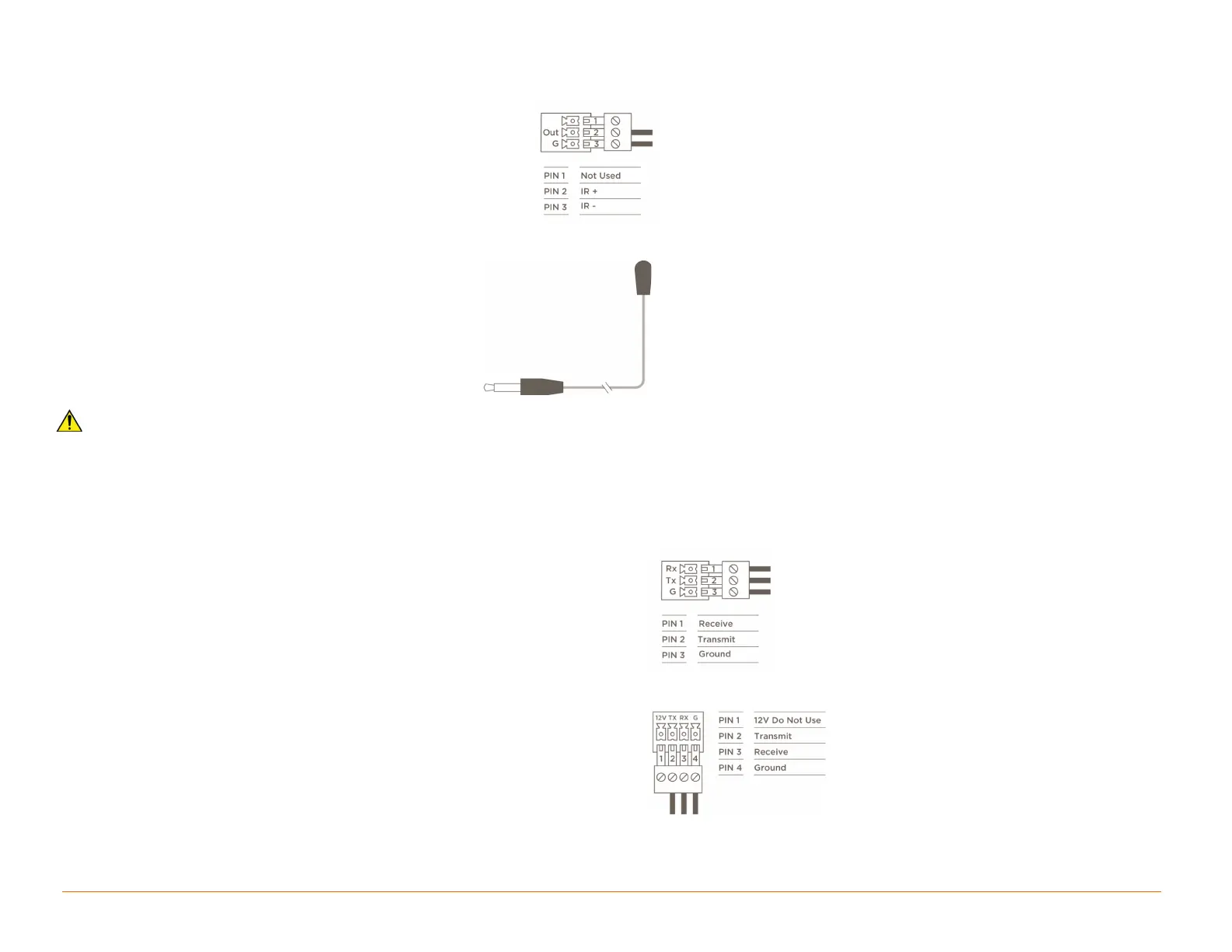

4.4 IR Wiring
PAV-VIMAPxS
IR connections are made using a 3-pin Control
Connector supplied with the device. The wire slips into
the hole and locks with a screw located at the top of
the connector.
PAV-VOMVP1x
IR connection are made using 3.5 mm IR Emitter
supplied with the device.
IMPORTANT: IR Wiring Precautions
Ensure that all IR emitters are within 15 feet (4.6 meters) from the controller’s location.
Use of 3rd party blinking IR emitters with Talk Back is not recommended. These types of emitters can draw voltage away from the IR signal that can
degrade IR performance.
4.5 RS-232 Wiring
PAV-VIMAPxS
Serial control connections are made using a 3-pin Control Connector
supplied with the device. The wire slips into the hole and locks with a
screw located at the top of the connector.
PAV-VOMVP1x
Serial control connection are made using a 4-pin Control Connector
supplied with the device. The wire slips into the hole and locks with a
screw located at the top of the connector.
