Savant IP Video with Audio Processing Deployment Guide
Copyright © 2018 Savant System, LLC
009-1621-01 | 181107
9 of 32
3.3 PAV-VOMVP1x

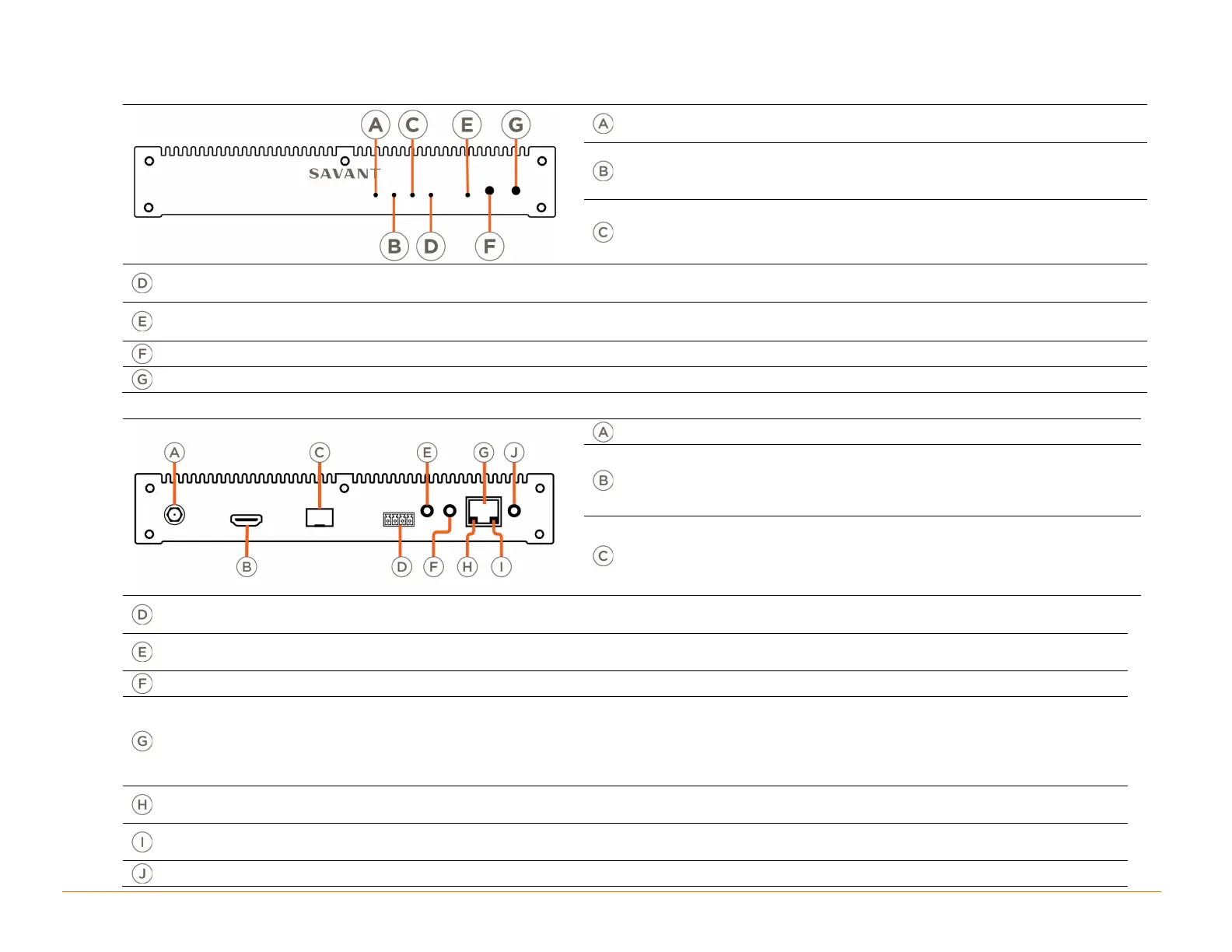

Front Panel
RSVD LED
Reserved for future use.
Blue - LED on by default.
Link TX LED
Off - No valid connection
Blue - Valid link
Blinking - Sending Ethernet Data
Link RX LED
Off - No valid connection
Blue - Valid link
Blinking - Receiving Ethernet
Video LED
Off - No video signal detected.
Blue
- Video signal detected.
Power LED
Off
- Device is off. No power applied.
Red
- Main board is powered
P1 Reserved for future use.
RSVD Reserved for future use.
Rear Panel
Power Input 12V DC
HDMI Out
19-Pin Type A HDMI female digital audio/video
output.
Supports HDMI 2.0a
HDMI 2.0 complaint cable required for 4K content.
Optical In
or
10 GbE
10G input from the Audio/Video over IP 10G network
switch.
SFP+ (PAV-VOMVP1F)
RJ-45 (PAV-VOMVP1C)
RS-232
4-pin Control Connector. Transmits and receives serial data to and from serial controllable devices.
For pin-out information, refer to the RS-232 Wiring section below.
IR OUT
3.5 mm IR Emitter connection. Transmits IR signals via an IR Flasher (5V tolerant) to devices with an
IR input or IR receiver
IR IN Not used.
LAN (C)
1G of reserved network data bandwidth commonly used to connect any network compliant device to
transmit its data onto the Ethernet network by sharing the 10G network link. 8-pin RJ-45 female
connection. This is a courtesy port it will not work for all network functions. Example: Spanning tree
devices are not supported by this port.
IMPORTANT!
Do not connect this port to a network switch.
Link LED
Solid Orange
- Link is established.
OffNo link established
Link Activity LED
Green Blinking
- Indicates data activity.
OffNo Activity
Audio Out Reserved for future use.
