6.7 AVB Expansion
Up to twenty five Savant IP Audio devices can be connected using a Savant certified AVB/TSN switch.
NOTE: da Vinci 8.8 has an upper limit of sixteen devices.
6.8 External AVB Sources
The Savant IP Video with Audio Processing Input chassis can be used to pass AVB audio to IP Video endpoints. There is a 4 stream limit per PAV-
VIMAPxS. The audio service path must be set in Blueprint. Below is an example of how to configure AVB services for PAV-VOM endpoints.
IMPORTANT! PAV-VOM1C do not support this feature.

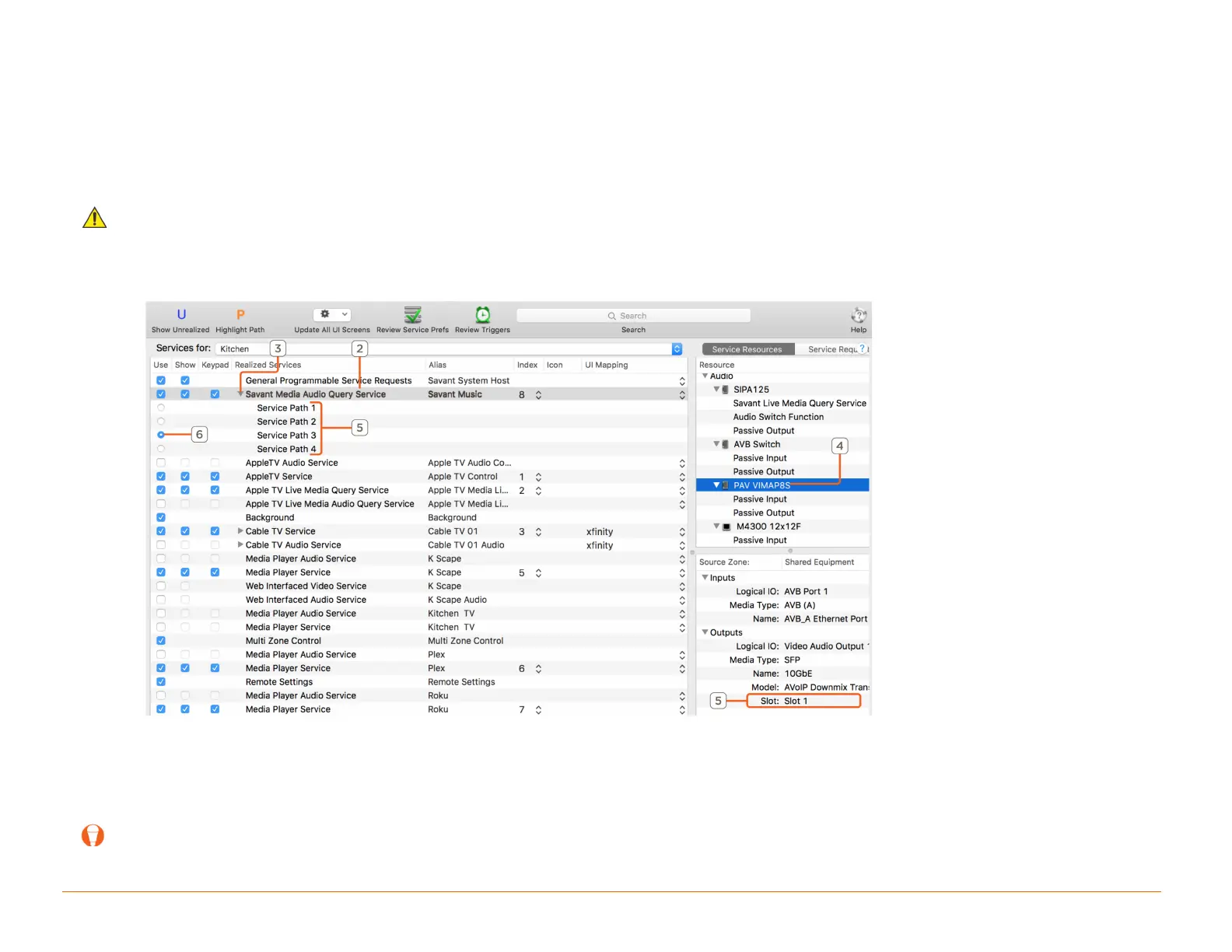

In an open Blueprint configuration do the following:
1. Open the Services Window.
2. Select the service for a AVB source.
3. Click the disclosure triangle to expand the available Service Paths.
4. Select the PAV-VIMAP8S in the Service Resources Window.
5. Highlight each service path to view input and output details at the lower right.
In this example, Service Path 3 uses the desired output Slot 1.
6. Select the desired Service path.
TIP! Service paths are generated in random order for each service. Therefore, the input and output details may differ across service for a given path
number. Use the same slot number for a given service in every zone.
