3. Installation
3.1. PWM-ENC3
Both surface and In-Wall mounting (between two studs) is available. Both methods are described below.
Surface Mount Instructions
1. Loosen the four hold down screws that secure the lid to the
enclosure.
2. Push up on the lid and pull away from the enclosure. Set lid
aside.

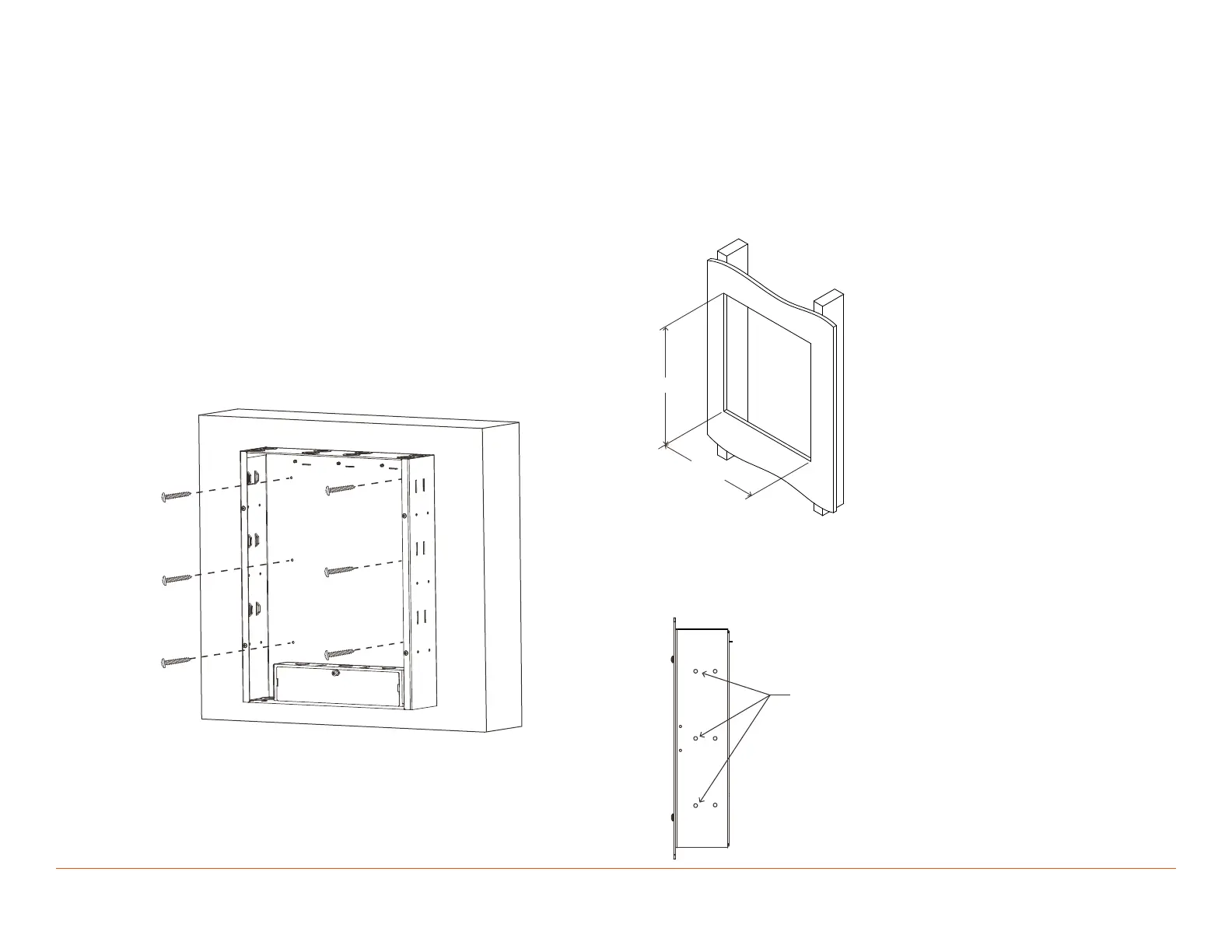

3. Place the panel on wall where it will be mounted and make a
mark on the wall for each of the mounting holes in the enclosure.
Refer to image below.
4. Drill a starter hole for each screw location. Secure the enclosure
to wall using (6) #8 x 1 / inch self tapping screws into a solid
sub wall. If the surface the panel is being mounted to is drywall
with no solid surface behind it, sturdy wall anchors that can hold
a minimum of 50 lbs ( 22.7 kg) is sucient.
5. Screw the panel to the wall and ensure it is securely mounted.
#8 x 1 / inch
In-Wall Mount Instructions
1. Loosen the four hold down screws that secure the lid to the enclosure.
2. Push up on the lid and pull away from the enclosure. Set lid aside.
3. Locate two adjacent studs that are 16-inch on center. If there is drywall
installed, cut drywall to the dimensions shown in image.
in.
18 in.
14
1/2
4. Secure the keypad power panel enclosure between the studs using
appropriately sized #6 self tapping screws. Screw to studs using the three
holes positioned toward the front of the panel. Using the holes closest to
front panel allows access to the screws when the three keypad modules
are installed. See image below.
Mounting Holes
for Studs
