Savant Low Voltage Keypad Deployment Guide 21 of 22
Copyright © 2019 Savant Systems, LLC
009-1731-00 | 190401
Location: Dinning Room
Type: ECL02
Dinning Table lights
Address: 002
Location: Living Room
Type: ECL04K
Living Room keypad
Address: 001
Location: Master Bedroom
Type: ECL04D
Master Bedroom keypad
Show bound devices
Devices: 7
Discovered
001AAE0000000086
10.0.100.164
1.0.108
0 available of 3 discovered
UID:
IP:
Firmware:
Keypads:
Connect Scan
Low Voltage Keypad Controllers
1
Echo Wireless Keypads
6
DMX Controllers
1
PBC Controllers
1
Stop Discover
Hide bound devices
Configured
Devices: 3
Echo Wired Low Voltage Keypads
0 discovered of 3
Bound LED icon

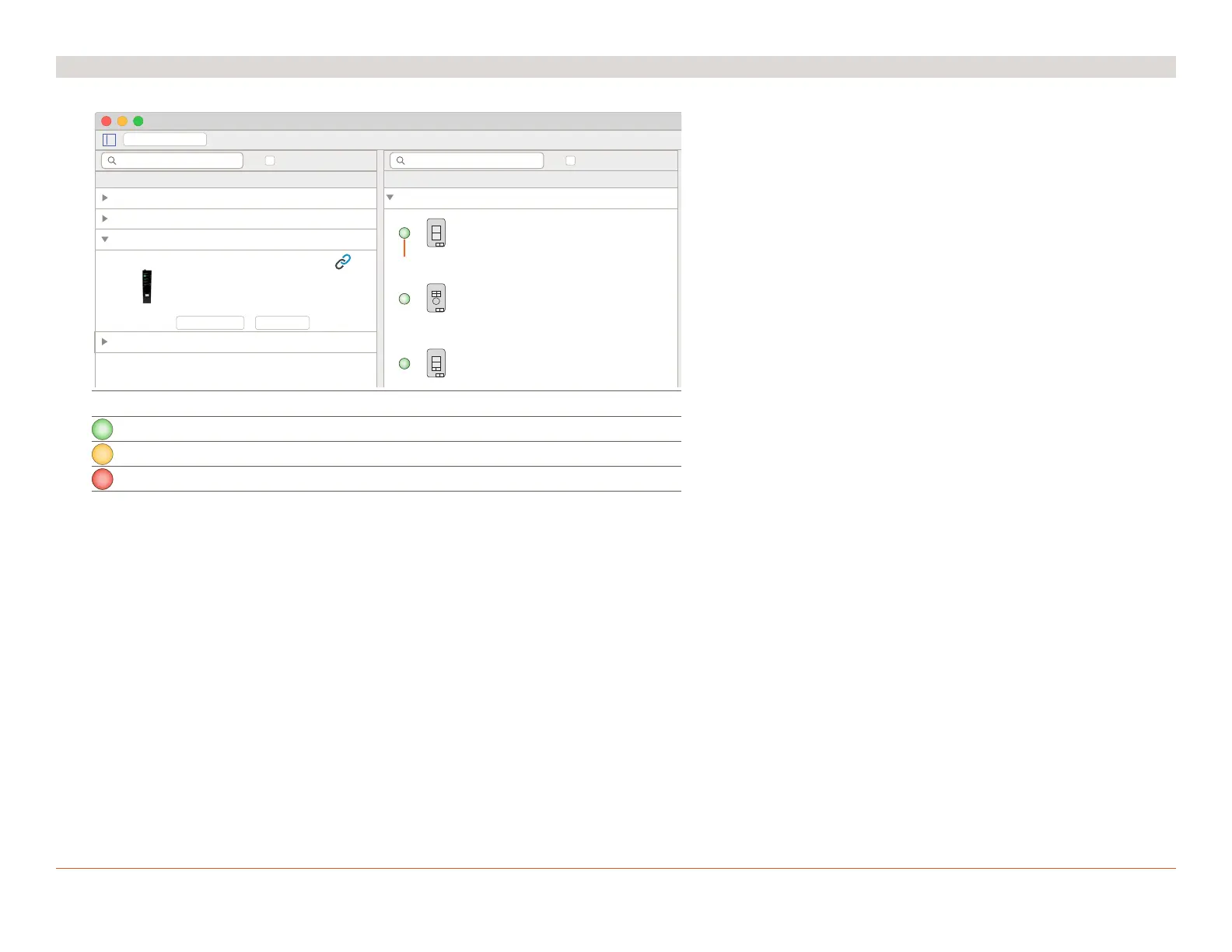

Appendix: Keypad Binding Indicator Information
This appendix gives information on Lighting Manager Binding LED icon. A keypad that is bound means that the UID of the keypad and the keypad link have
been assigned in the configuration. The image below shows the icon. The table under the image has the information.
None UID not assigned.
Green Bound and discovered.
Yellow Bound, but discovery has not yet been run.
Red Bound but not discovered after discovery completed.
