2.4. WPB-xxLV02
Box Contents
(1) Echo Low-Voltage Paddle Keypad (WPB-xxLV02-00)
(1) Cable Control Station Pigtail 5-Pin (064-0456-00)
(1) Product and Regulatory Insert
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weights
Height 4.13 in (10.50 cm)
Width 1.72 in (4.36 cm)
Depth 0.97 in (2.46 cm)
Weight Shipping: 0.6 lbs (0.27 kg)
Power
Input 24V DC 2A
Avg Power 0.5 Watts
Max Power 1.4 Watts
Regulatory
Safety and
Emissions
FCC Part 15B
CE Mark C-Tick
RoHS Compliant
Minimum Support Requirements
Savant OS da Vinci 9.0

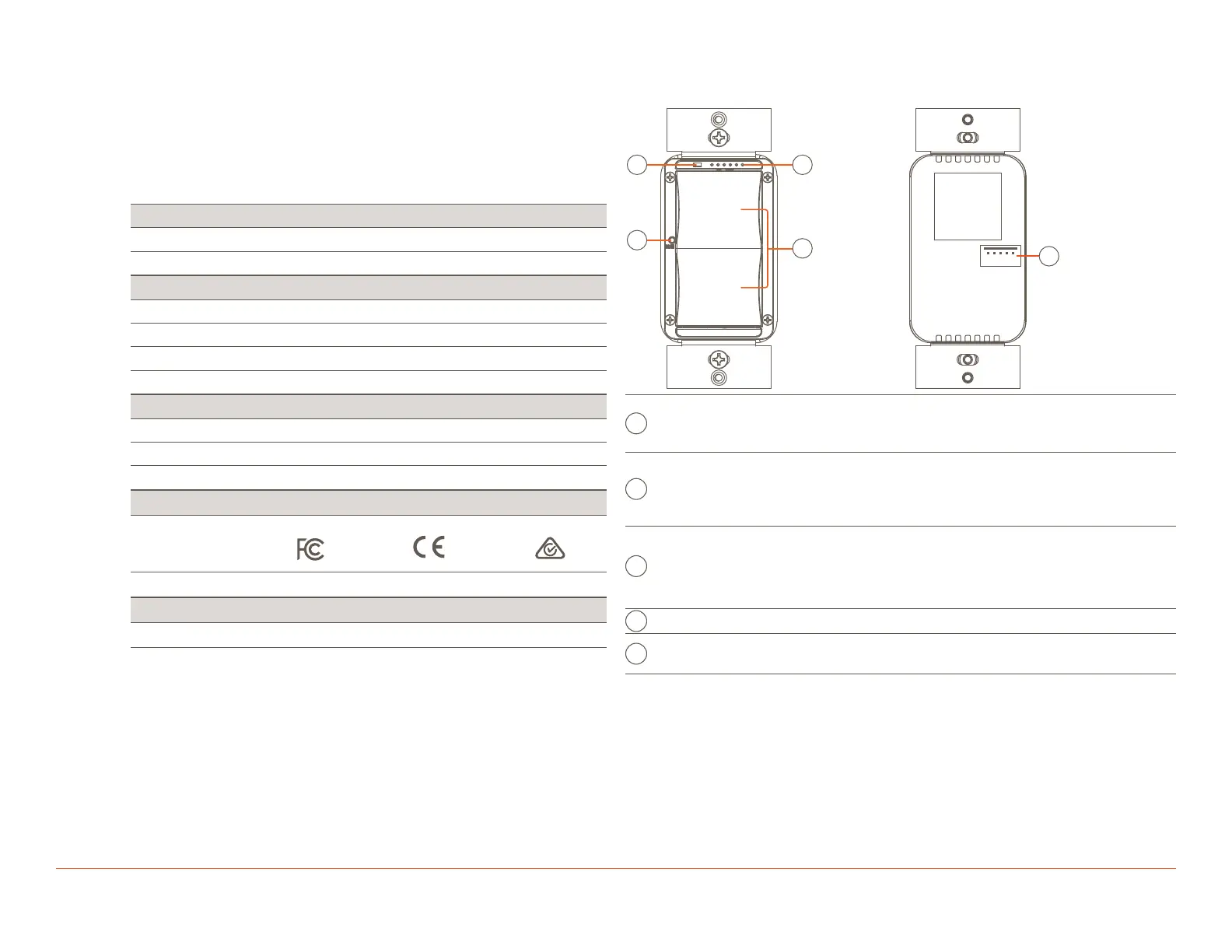

Front View Rear View
A B
C
D
Ambient Light Sensor - Detects the level of ambient light in the room and
adjusts the LED brightness on the front panel. The ambient light sensor
operation is modified using RacePoint Blueprint®.
Dimming Level - Six indicator LEDs track the brightness of the load. LEDs
turn on from left to right as intensity on load increases and turns o from
right to left as intensity decreases. Once configured in Blueprint, the LEDs
track the brightness of the scene configured.
C
Reset Button - The reset button has two functions:
– Press and release the reset button will reboot the keypad.
– Press and hold the reset button for five seconds will Factory reset the
keypad. This will erase the stored keypad address.
Buttons - Two buttons programmable with Blueprint.
Station Control Connection - 5-Pin female port for the Cable Control
Station Pigtail to be connected.
