Savant Low Voltage Keypad Deployment Guide 16 of 22

009-1731-00 | 190401

4.2. Wiring Contact Closure Control

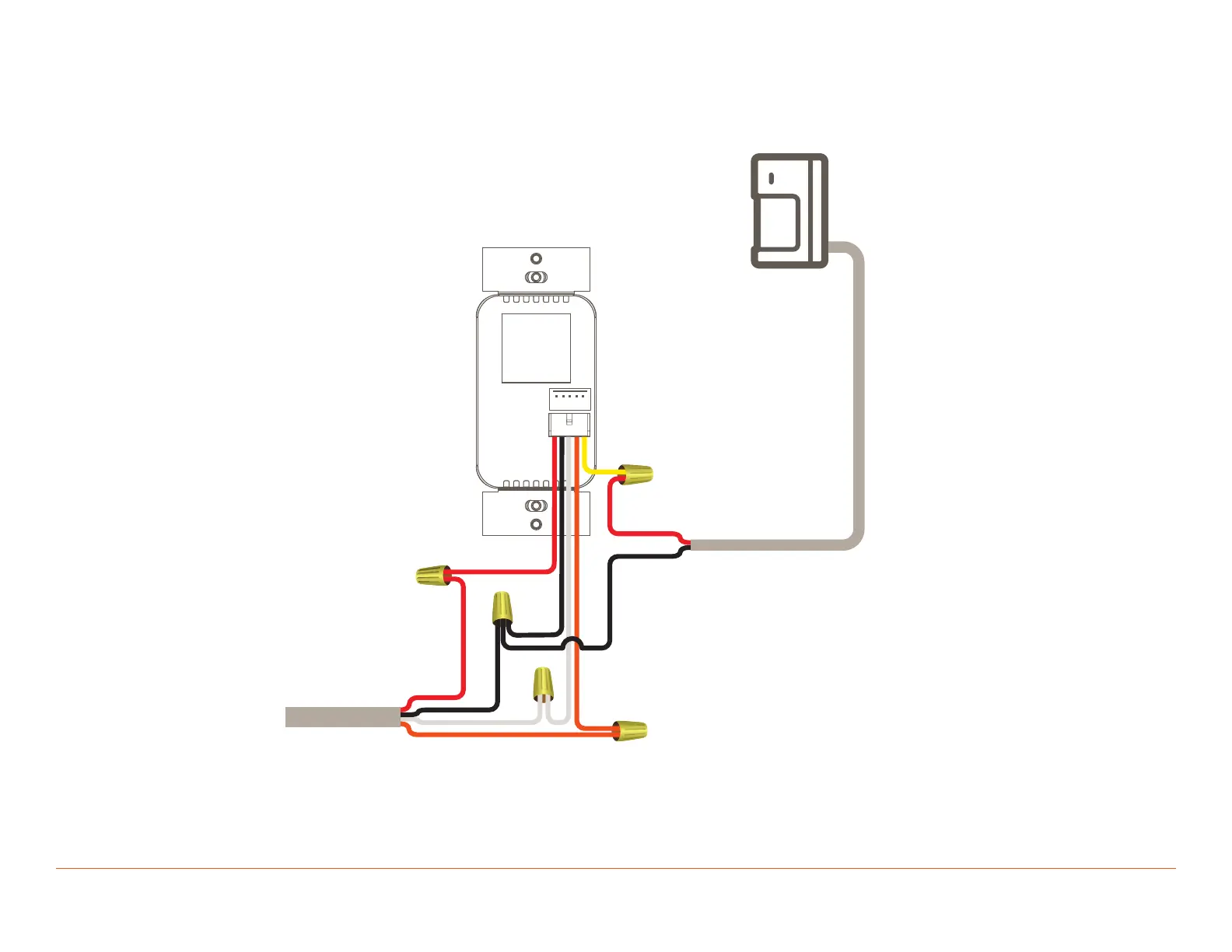

This diagram shows how to wire a contact closure device to a Echo Low-Voltage keypad the control of what this does is programmed in Blueprint like

a keypad button.

Contact Closure

Output

To Keypad Link

Occupancy

Sensor

NOTE: Contact Closure wire colors do not represent any standard.
