Savant WPB-LV06 Series - SKL-1010 Keypad Power and Control Module

Savant Low Voltage Keypad Deployment Guide 7 of 22
Copyright © 2019 Savant Systems, LLC
009-1731-00 | 190401
2.3. SKL-1010
Box Contents
(1) 10 Keypad Power and Control Module
(1) 4-pin Screw Down Plug-in Connectors
(1) Power Supply
(1) Product Info and Safety Insert
Additional Required Items
– Up to 10 Savant Echo Low-Voltage Keypads per Module.

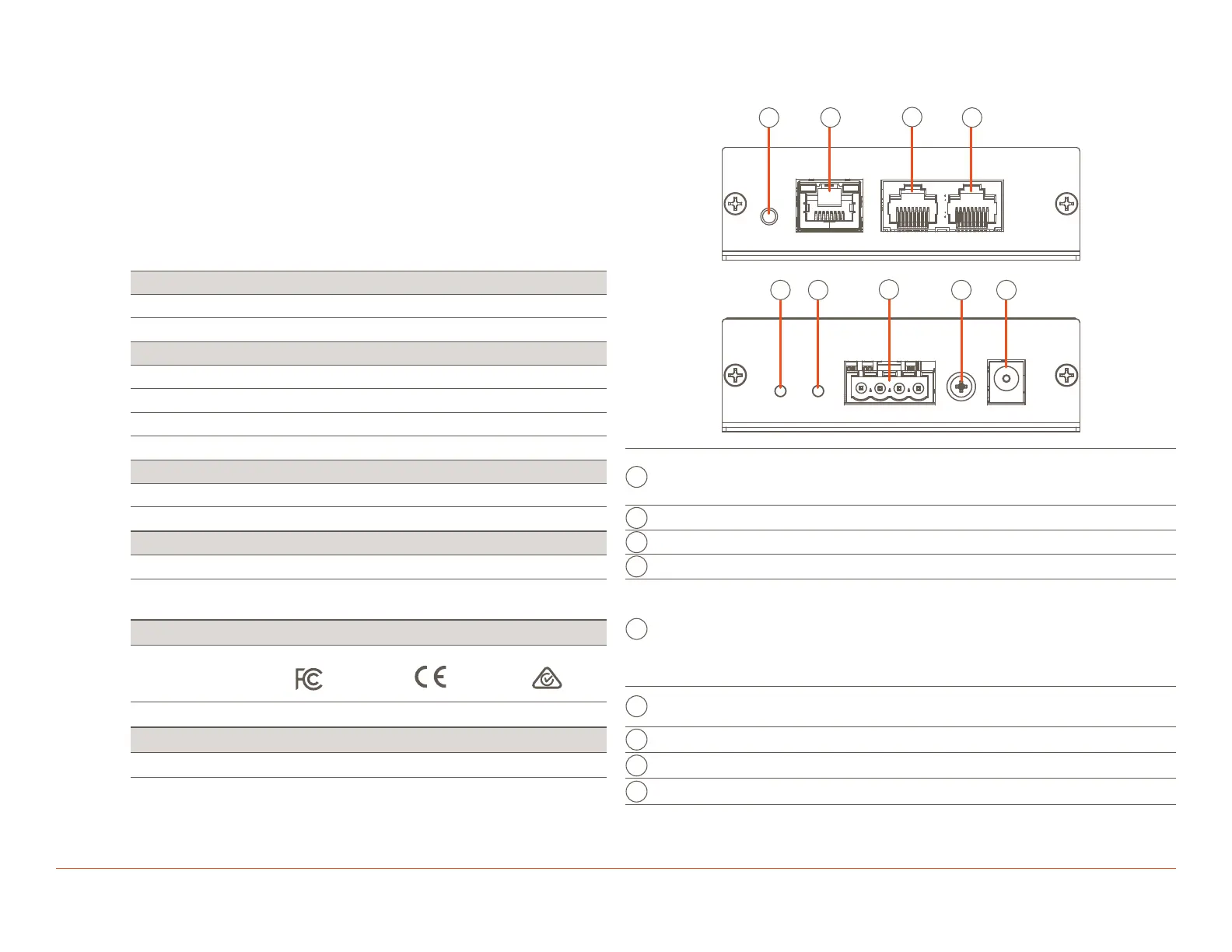

Side Views
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weights
Height 3.80 in (9.64 cm)
Width 5.65 in (14.35 cm)
Depth 1.06 in (2.68 cm) - including connectors
Weight Shipping: 3.30 lbs (1.50 kg)
Power
Input 24V DC
Output Power 48 W
A
Reset Button - Resets the network settings of the device. Hold Reset
Button for 5 seconds while powered on to clear network settings. Status
LED will rapidly blink red when reset is complete.
B
Ethernet - Connect to network via CAT5/5E/6.
C
Bus In - Reserved for future use.
D
Bus Out - Reserved for future use.
E
Status LED
– No Network Connection - .5 second blink, 1.5 second o.
– No Host Connection - 2 rapid blinks.
– Host Connected - On (solid green).
– Firmware Upgrade in Progress - long blink with short o.
F
Keypad Power LED - Green: normal,
Amber: Keypad Address Discovery mode
G
Keypad Bus - 4-Pin connector for wiring Echo Low-Voltage keypads.
H
Ground - Chassis Ground (optional)
I
Power Input - 24V DC
Regulatory
Safety and
Emissions
FCC Part 15B CE Mark C-Tick
RoHS Compliant
Minimum Support Requirements
Savant OS da Vinci 9.0
Specifications
E F
G
H I
Left Side
A
B
C
D
Right Side
Maximum Wiring Distance (per keypad bus)
#14 AWG Max = 1000 ft (304.8 m)
Use of Shade or Low-Voltage Keypad Wire (SHA-W1000-00) is
recommended
