Savant Low Voltage Keypad Deployment Guide 9 of 22
Copyright © 2019 Savant Systems, LLC
009-1731-00 | 190401
2.5. WPK-xxLV05
Box Contents
(1) Echo Low-Voltage Dial Keypad (WPK-xxLV05-00)
(1) Cable Control Station Pigtail 5-Pin (064-0456-00)
(1) Product and Regulatory Insert
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Regulatory
Safety and
Emissions
FCC Part 15B
CE Mark C-Tick
RoHS Compliant
Minimum Support Requirements
Savant OS da Vinci 9.0
Dimensions and Weights
Height 4.13 in (10.50 cm)
Width 1.72 in (4.36 cm)
Depth 1.24 in (3.15 cm)
Weight Shipping: 0.6 lbs (0.27 kg)
Power
Input 24V DC 2A
Avg Power 0.5 Watts
Max Power 1.4 Watts

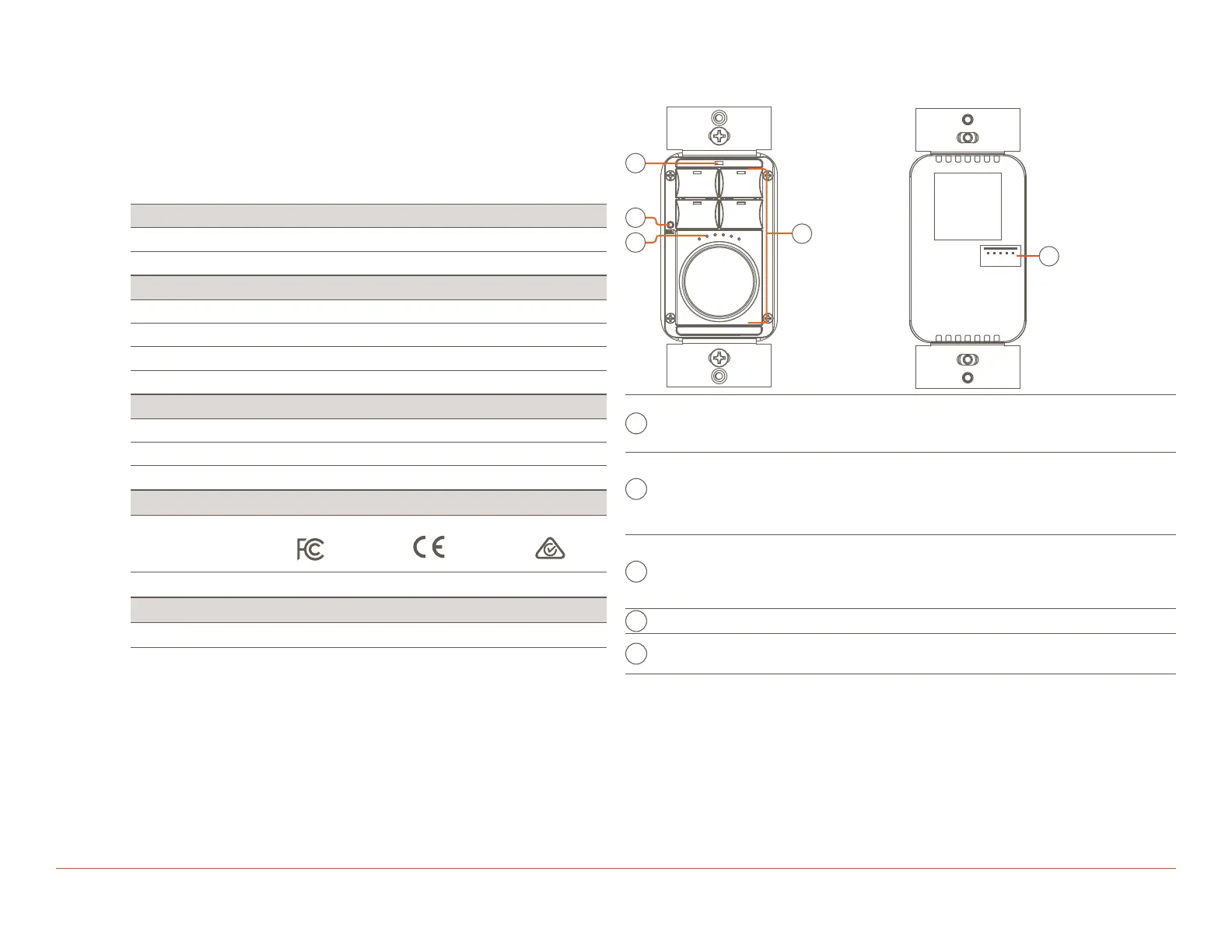

Front View Rear View
Ambient Light Sensor - Detects the level of ambient light in the room and
adjusts the LED brightness on the front panel. The ambient light sensor
operation is modified using RacePoint Blueprint®.
Reset Button - The reset button has two functions:
– Press and release the reset button will reboot the keypad.
– Press and hold the reset button for five seconds will Factory reset the
keypad. This will erase the stored keypad address.
C
Dimming Level - Six indicator LEDs track the brightness of the load. LEDs
turn on from left to right as intensity on load increases and turns o from
right to left as intensity decreases. Once configured in Blueprint, the LEDs
track the brightness of the scene configured.
Buttons - Four buttons and a dial. With status LED on the four buttons.
Station Control Connection - 5-Pin female port for the Cable Control
Station Pigtail to be connected.
E
D
