Savant Low Voltage Keypad Deployment Guide 5 of 22
Copyright © 2019 Savant Systems, LLC
009-1731-00 | 190401
2. Equipment Overview
2.1. PWM-ENC3
Box Contents
(1) Enclosure (PWM-ENC3)
(1) Enclosure Cover with Handles (093-3046-xx)
(4) M4 x 6mm Phillips - Front Cover Screws (039-0383-xx)
(2) WAGO 6-Position Push Connector (028-0815-xx)
(1) Quick Reference Guide
Additional Required Items
– One, Two, or Three Savant 40 Keypad Power and Control
Module (SKL-3040)
– Up to 40 Savant Echo Low-Voltage Keypads per Module.
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Regulatory
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 9.0
Dimensions and Weights
Height Width Depth Weight
Enclosure
18 in
(45.72 cm)
14.25 in
(36.20 cm)
3.5 in
(8.89 cm)
14.55 lbs
(6.60 kg)
Enclosure
with Cover
19 in
(48.26 cm)
15.25 in
(38.74 cm)
4.72 in
(11.99 cm)
15.85 lbs
(7.08 kg)
Shipping
21.0 in
(53.34 cm)
17.0 in
(43.18 cm)
5.0 in
(12.7 cm)
16 lbs
(7.26 kg)

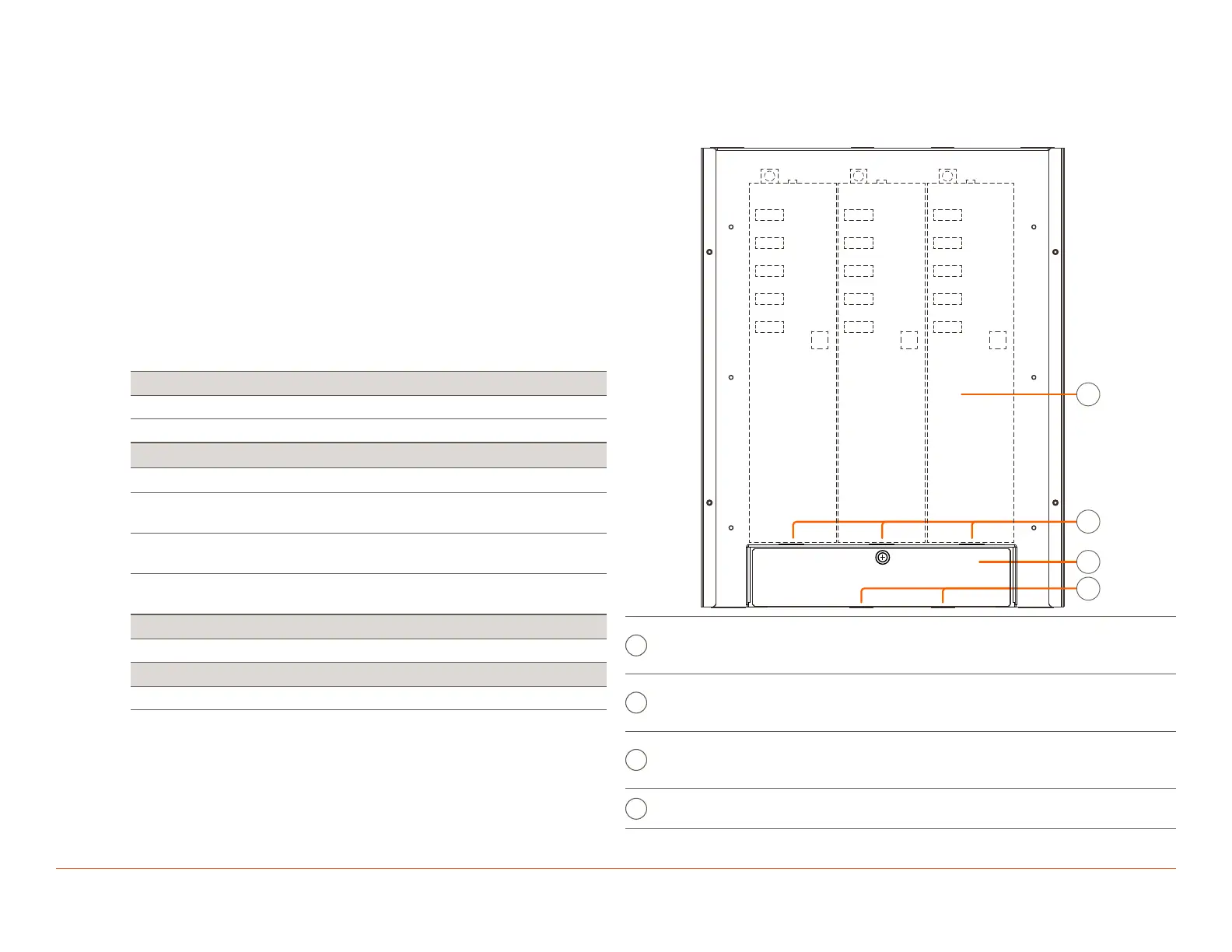

Front View
C
B
D
A
A
The PWM-ENC3 enclosure supports up to three (SKL-3040) 40 Keypad
Power and Control Modules. The Keypad Modules are not included with
the enclosure and need to be purchased separately.
B
Three 1/2 inch electrical knockouts. Prior to installing the keypad module,
remove the knockout associated with the module being installed and snap
in the 1/2 inch nylon bushing supplied with each Keypad module.
C
AC Compartment cover. To remove the cover, turn the captive panel screw
counterclockwise (CCW) until the screw pops up and out of the threaded
insert. Slide cover up and then out away from the enclosure.
D
Electrical knockouts (1/2 inch) for supplying power from a breaker panel
or similar. Remove appropriate knockout(s) and install cable clamp.
