Savant Low Voltage Keypad Deployment Guide 6 of 22
Copyright © 2019 Savant Systems, LLC
009-1731-00 | 190401
2.2. SKL-3040
Box Contents
(1) 40 Keypad Power and Control Module
(5) 4-pin Screw Down Plug-in Connectors
(1) Quick Reference Guide
Additional Required Items
– 3-Unit Power Module Enclosure (SHA-PEN3C/PWM-ENC3)
per every 3 SKL-3040
– Up to 40 Savant Echo Low-Voltage Keypads per Module.
Specifications

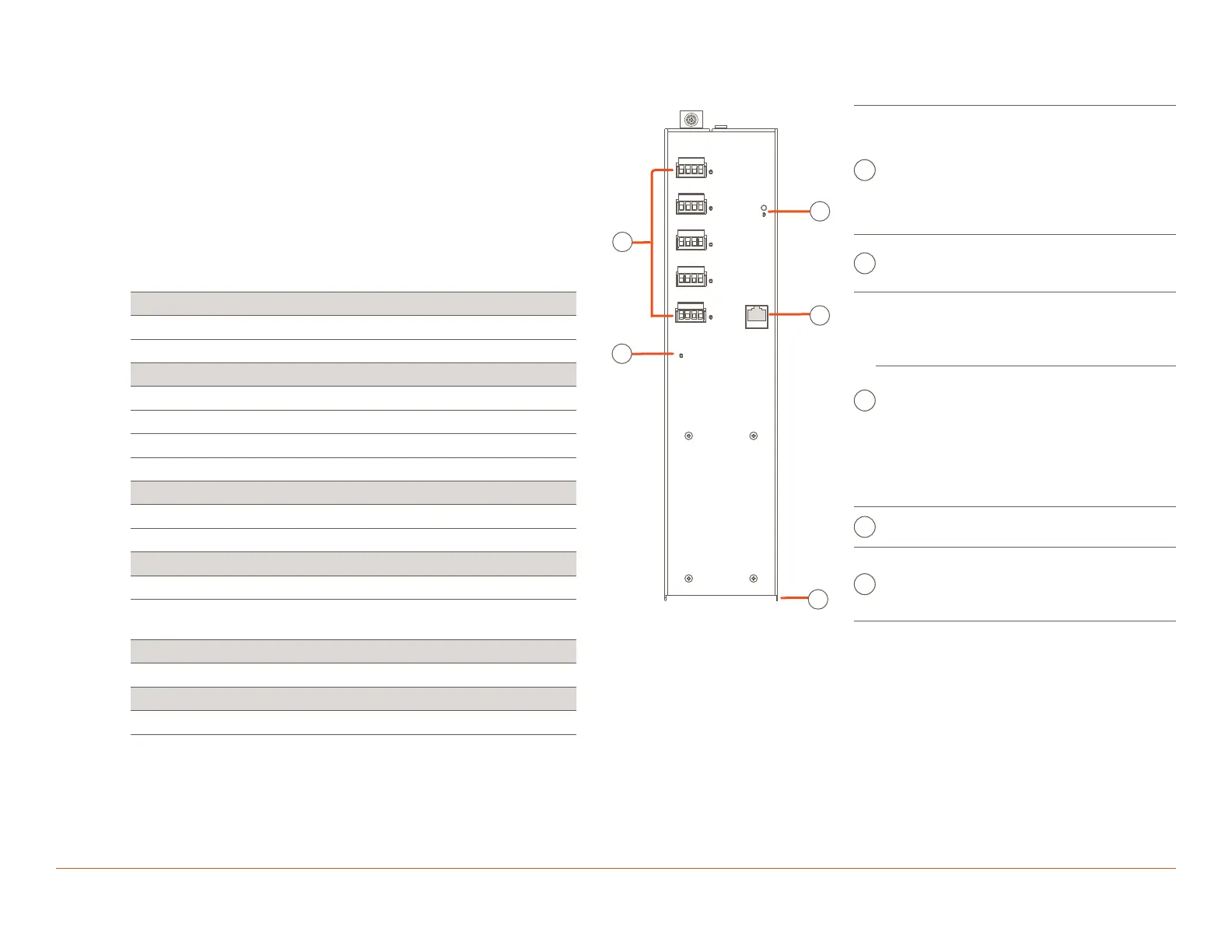

Front View
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weights
Height 12.35 (31.37 cm)
Width 3.43 in (8.71 cm)
Depth 2.25 in (5.72 cm) - including connectors
Weight Shipping: 3.30 lbs (1.50 kg)
Power
Input 120-240V AC 50/60Hz (7.2 A)
Output Power 24V DC 2A per keypad bus
Maximum Wiring Distance (per keypad bus)
#14 AWG Max = 1000 ft (304.8 m)
Use of Shade or Low-Voltage Keypad Wire (SHA-W1000-00)
is recommended
Regulatory
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 9.0
Main Power
Keypad Bus 1
Keypad Bus 2
Keypad Bus 3
Ethernet
Keypad Bus 4
Keypad Bus 5
Reset
Status
A
C
D
E
B
Keypad Bus (1-5) - The 40 Keypad Power
and Control Module supports up to 10
low-voltage keypads per bus, wired in
series/”daisy-chained” with a total of up
to 40 keypads per module.
Keypad Bus Status LED - Green: normal,
Amber: Keypad Address Discovery mode
Main Power LED - Green light indicates
power is connected, o indicates power
has been removed.
C
Reset - Using a paperclip or similar, press
to reset unit and discover keypads, press
and hold (5 seconds) to default network
settings.
Status LED
– No Network Connection - .5 second
blink, 1.5 second o.
– No Host Connection - 2 rapid blinks.
– Host Connected - On (solid green).
– Firmware Upgrade in Progress - long
blink with short o.
D
Ethernet - Connect to network via
CAT5/5E/6.
E
When installing 40 Keypad Power and
Control Module into enclosure, use
tabs to align. Refer to Keypad Module
Installation section for further details.
