Scania DC12 - Page 15

© Scania CV 2009 15
10
8
1, 2
4
3
12
9
11
5
7
6
15
17
13
18
16
14

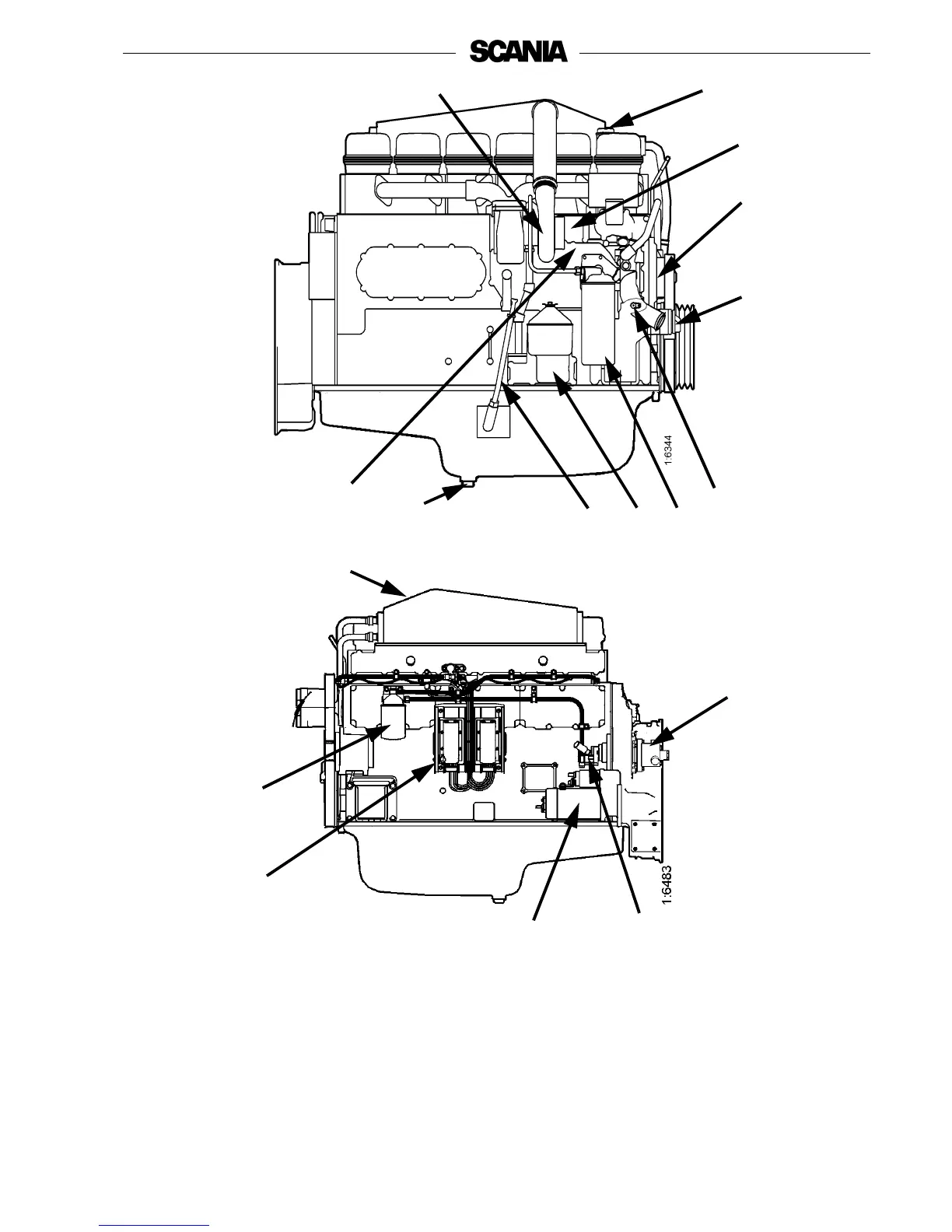

1. Type plate
2. Engine number, stamped
into the cylinder block
3. Coolant pump
4. Automatic belt tensioner
5. Draining, coolant
6. Oil filter
7. Oil filter unit
8. Oil dipstick
9. Draining, engine oil
10. Oil cooler
11. Turbocharger
12. Oil filler
13. Hydraulic pump
14. Fuel pump with hand pump
15. Starter motor
16. S6 control unit
17. Fuel filter
18. Charge air cooler
The illustrations show a normal version of a DI12-engine.
Your engine may have different equipment from that illustrated.
