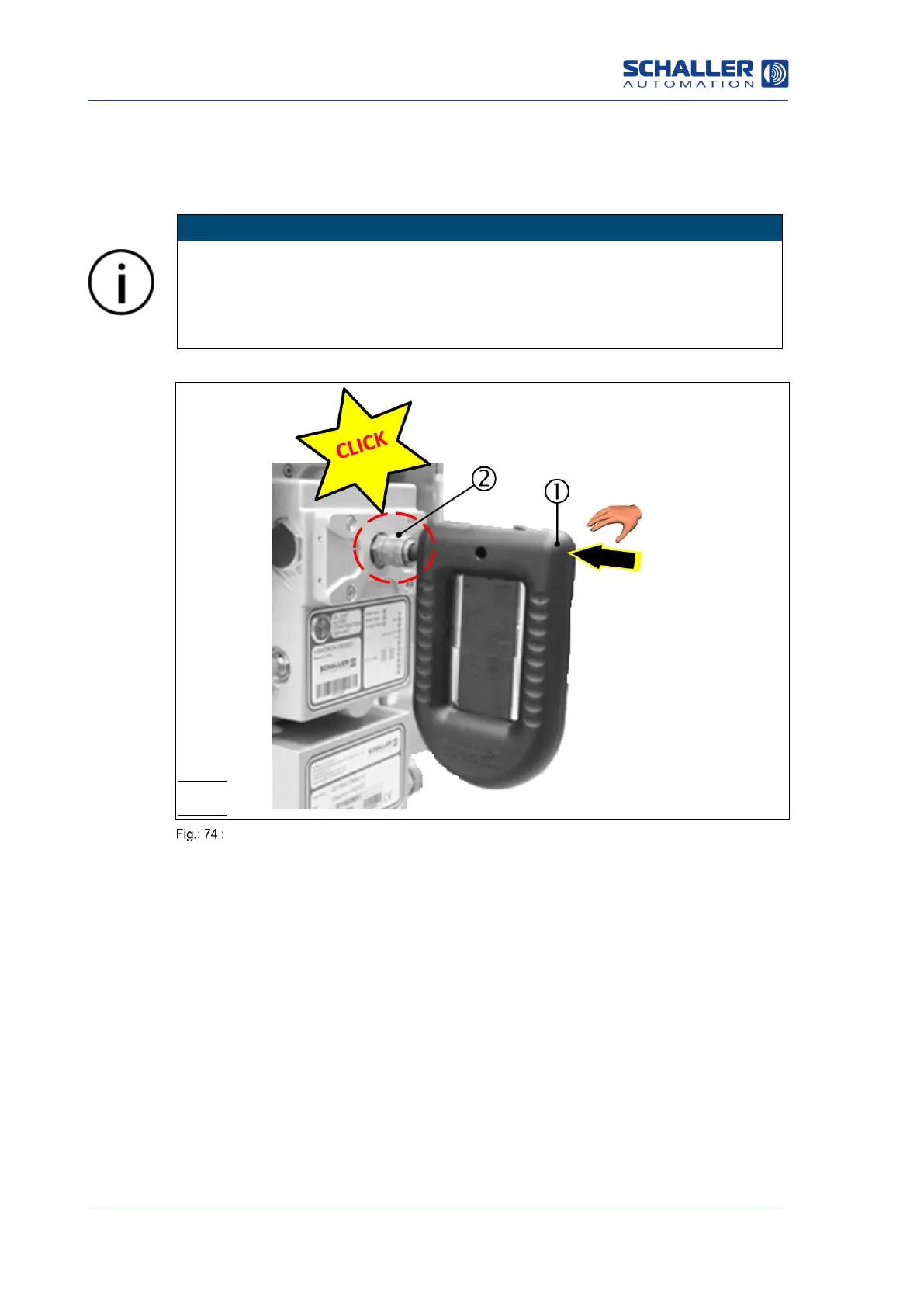

Operating manual VISATRON® Oil Mist Detector VN2020 / VN2020 EX
Part number 183001 Version 3.0
MAINTENANCE AND REPAIR
Note on steps 7 and 8: Start by pushing the filter cover [] into the pressure
regulator unit [] and then turn it to the right until the blue locking lever []
engages automatically.
NOTE
Checking the supply pressure on the oil mist detector
After completing installation step 8, the supply pressure on the VN2020
measuring head has to be checked again and readjusted if necessary.
To carry out installation step 8, first see Section 6.5.3
Section 6.5.3 Setting the
negative pressure at the measuring head of the VN2020 / VN2020 EX
#
Replacing the air filter element on the pressure regulator unit (steps 1-9)
1: U-tube manometer
2: Quick-release coupling
9
