Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

125

MAINTENANCE AND REPAIR

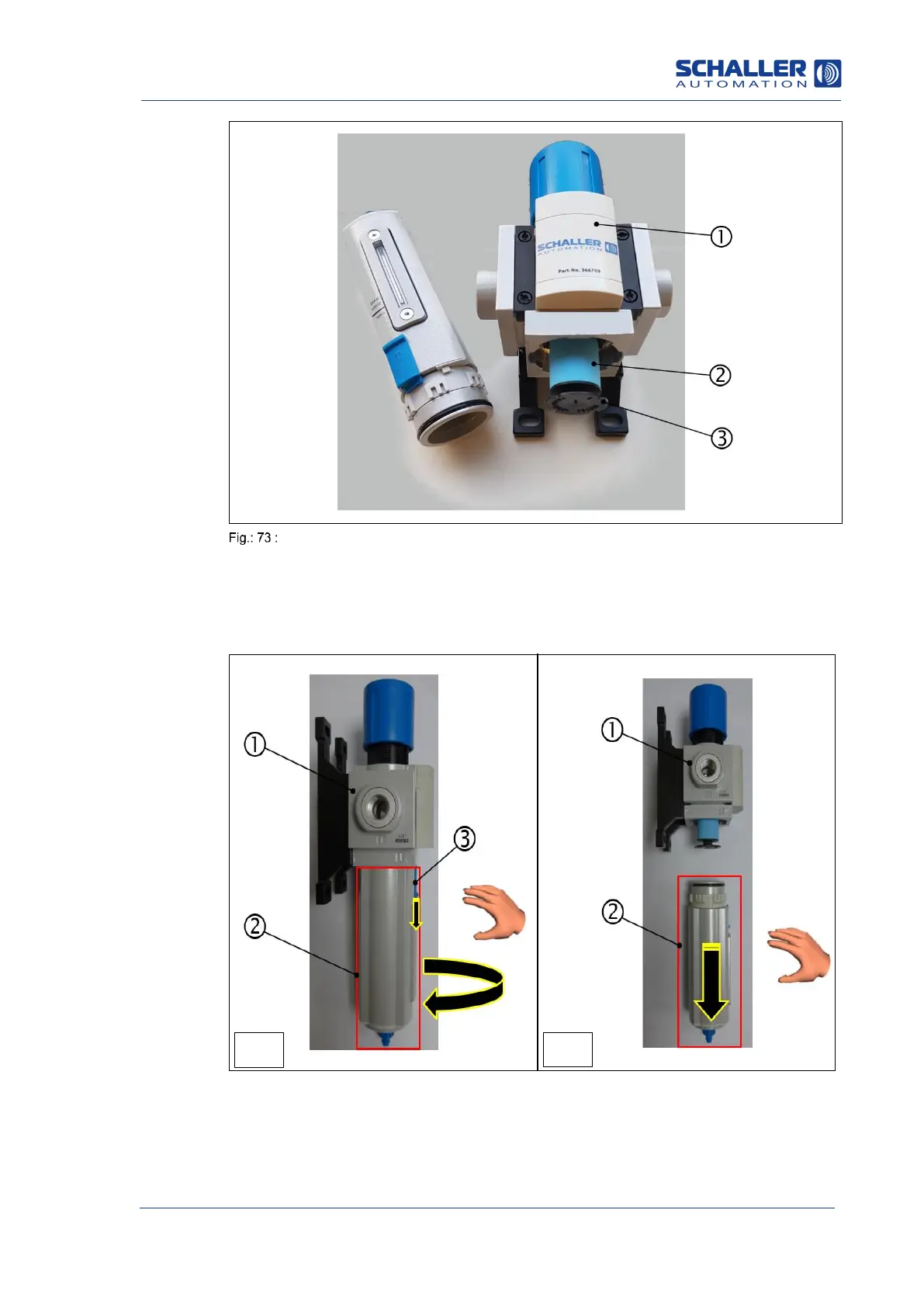

Replacing the air filter element on the pressure regulator unit

1: Pressure regulator unit

3: Plastic disc

2: Air filter element

The air filter element is replaced according to the following steps:

1: Pressure regulator unit

3: Locking lever

2: Filter cover

 Note on steps 1 and 2: Start by pressing the locking lever [] down and then

unscrew the air filter cover []. Then pull the air filter cover down.
