Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX
Part number 183001  Version 3.0
83
ASSEMBLY AND INSTALLATION

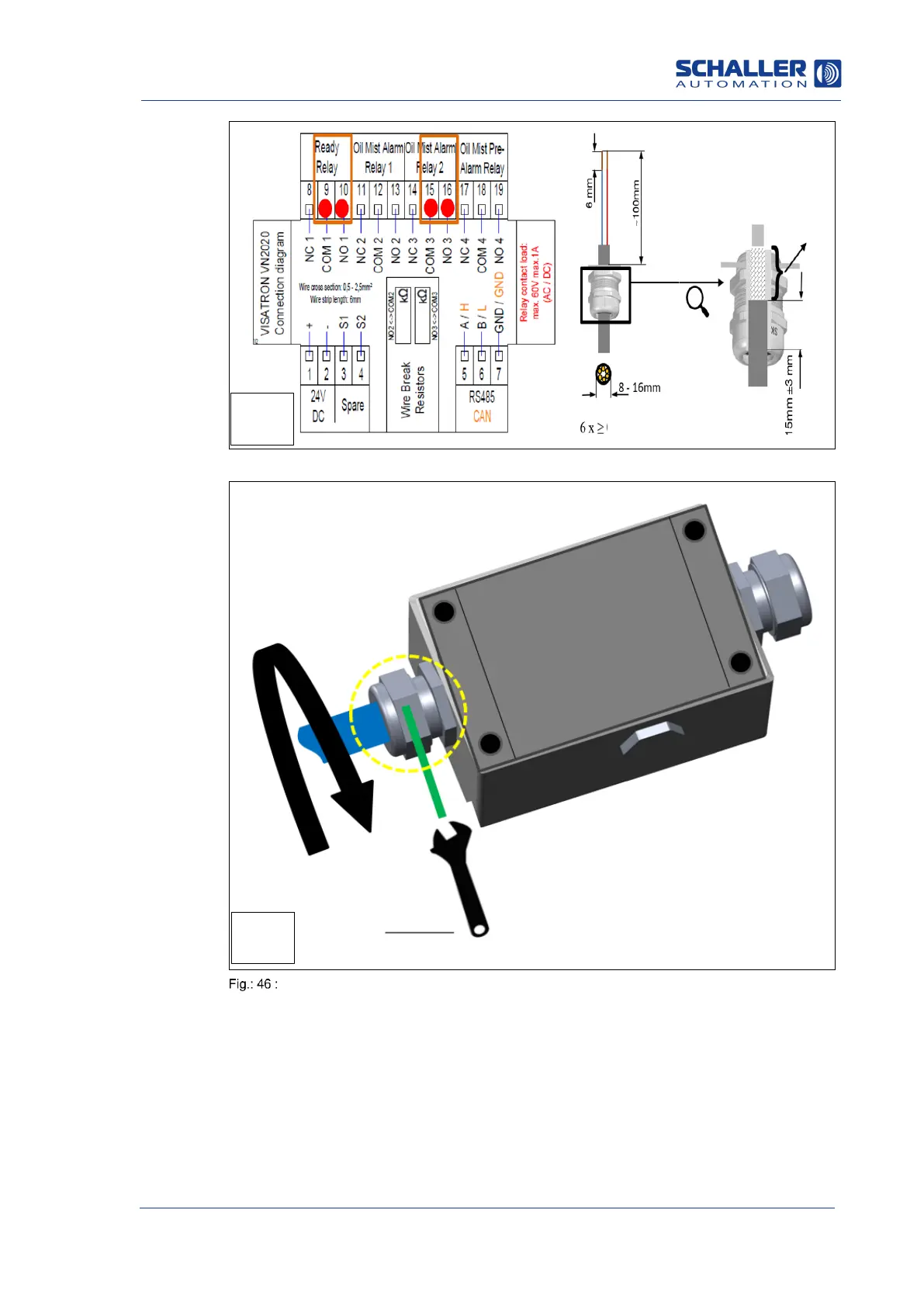

Establishing the power and relay supply (example installation; installation steps 1-4)
4
3a
Shielding
AF size 24
6.7 Nm
0.5 mm
2
