Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX
Part number 183001  Version 3.0
PRODUCT OVERVIEW
4.6 Descriptions of the controls and indicators
4.6.1 Controls and indicators, VISATRON
®
VN2020 / VN2020 EX

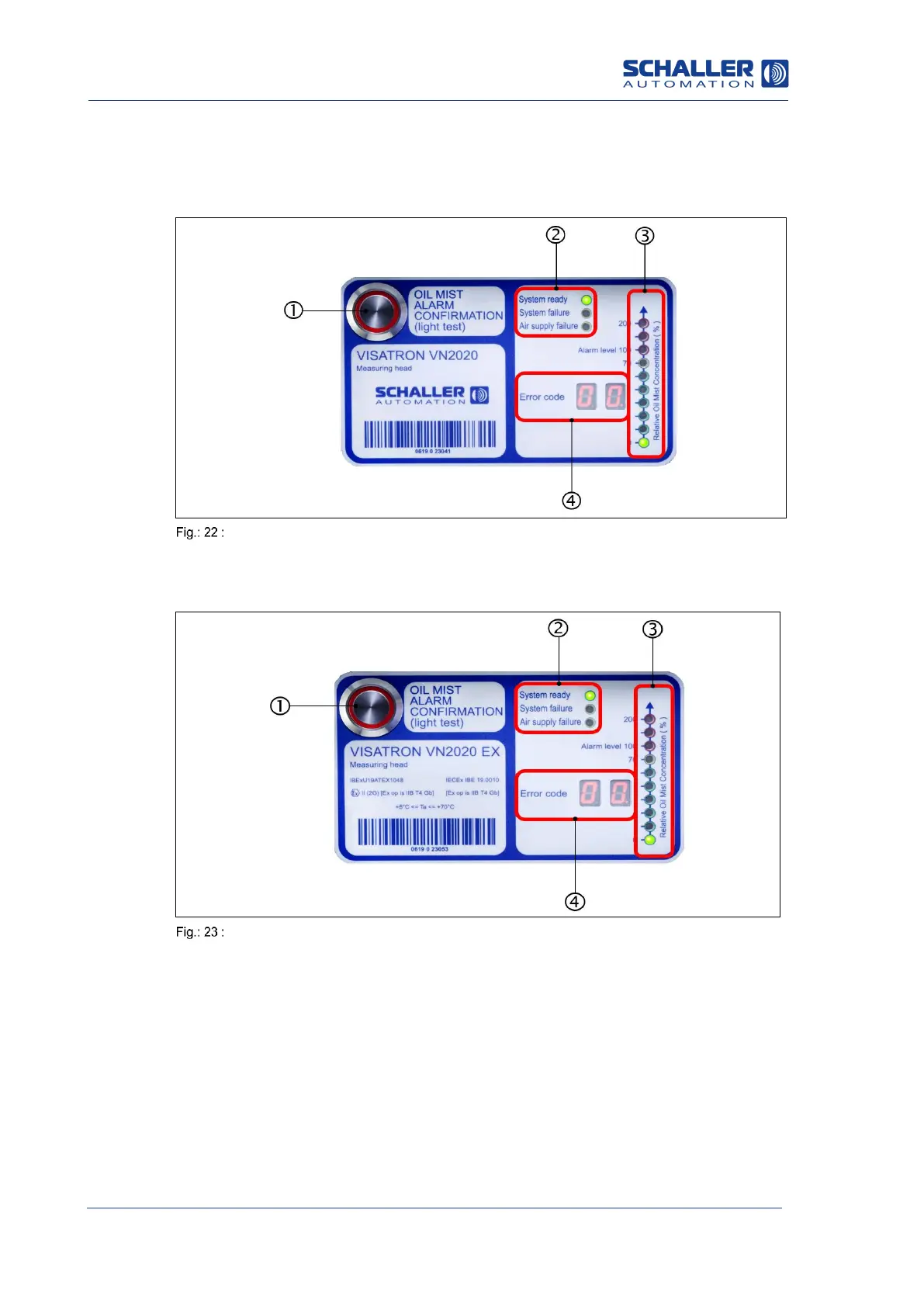

Controls and indicators, VN2020
1: Confirmation button
3: Display; Relative Oil Mist Concentration
2: System status
4: Display, error code
Controls and indicators, VN2020 EX
1: Confirmation button
3: Display; Relative Oil Mist Concentration
2: System status
4: Display, error code
4.6.1.1 Fault indicators, VISATRON
®
VN2020 / VN2020 EX
As shown in Figures 22 and 23, system faults are shown by the following indicators:
2: System status
4: Display, error code
System faults are described in detail in Section 10 “Troubleshooting”.  Section 10 Error
diagnosis and troubleshooting
