Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX
Part number 183001  Version 3.0
105
MANUFACTURER SETTINGS

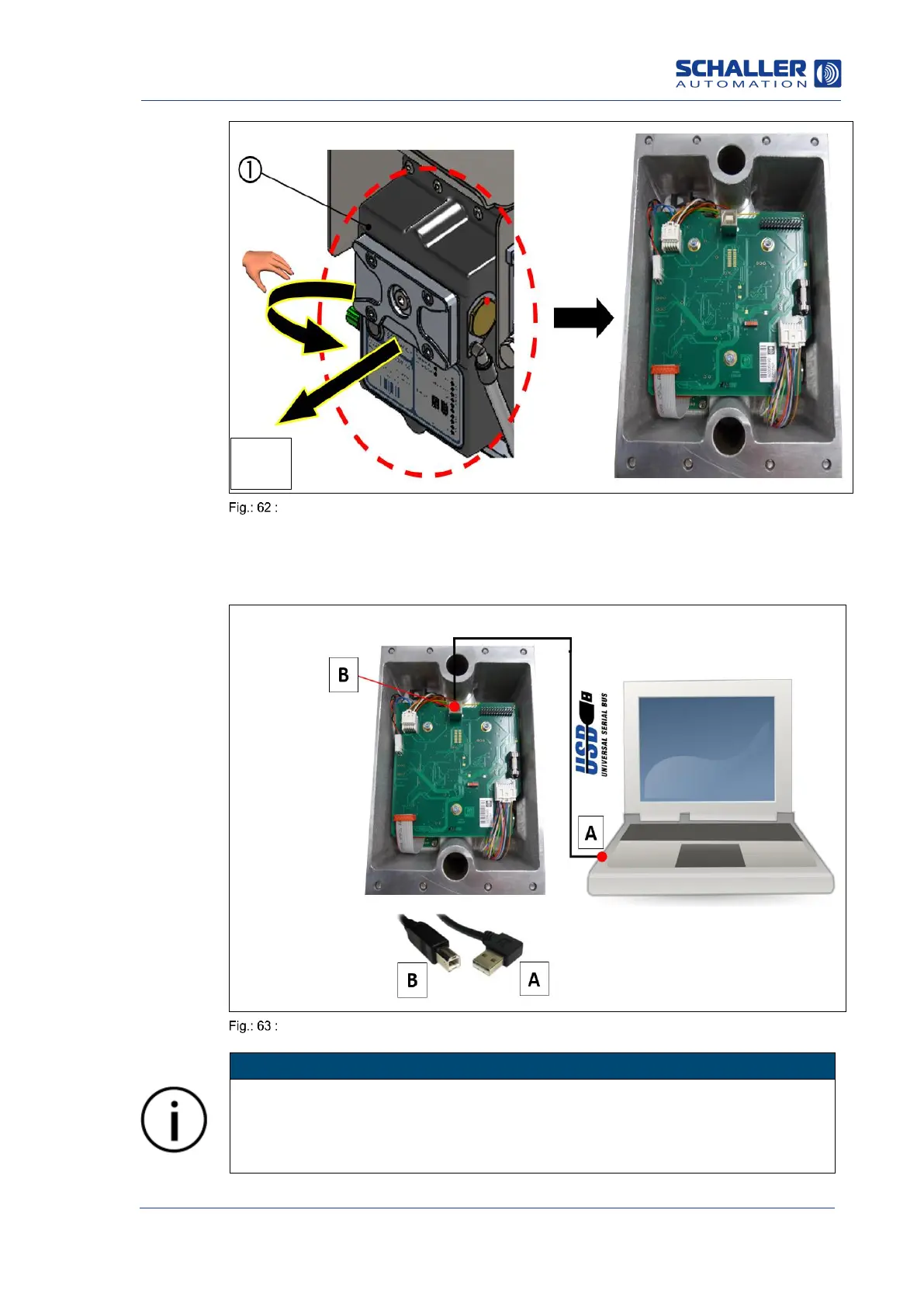

Removing the VN2020 measuring head (installation steps 1-2)
1: VN2020 measuring head
The laptop and the measuring head are connected as shown in the figure below:
Establ. the USB connection between the VN2020 measuring head & service PC
NOTE
Adjusting the parameters of the VISATRON
®
VN2020 measuring head
 When adjusting the parameters, only the parameters of the connected
measuring head are adjusted.
 Sensitivity level 2 is the factory setting.
2
USB port
VISATRON VN2020 / VN2020 EX connection unit
Service laptop/netbook
