Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

155

MAINTENANCE AND REPAIR

After the electrical installation, the terminal box on the VN2020 is closed again, as

shown in the figure below. Tighten the screws crosswise. Then re-establish the electrical

connection between the terminal box and the measuring head.

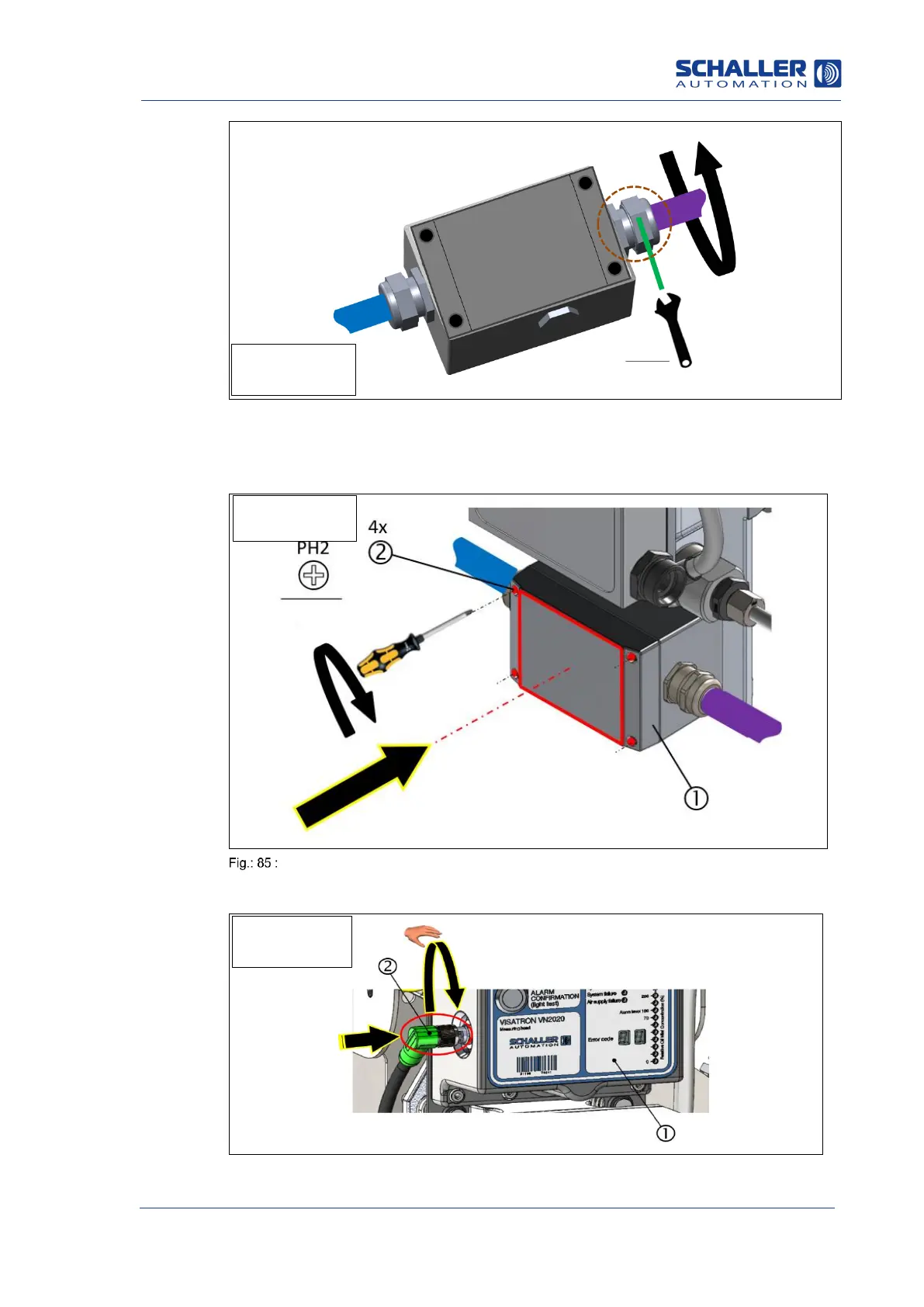

Replacing the VN2020 terminal box (installation steps 1-8)

1: Cover, VN2020 terminal box

2: 4x fixing screws

1: VN2020 measuring head

2: Measuring head plug connection, VN2020

For 2)

For 4)

For 1)

AF size 27

6.7 Nm

2.5 Nm
