Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

ASSEMBLY AND INSTALLATION

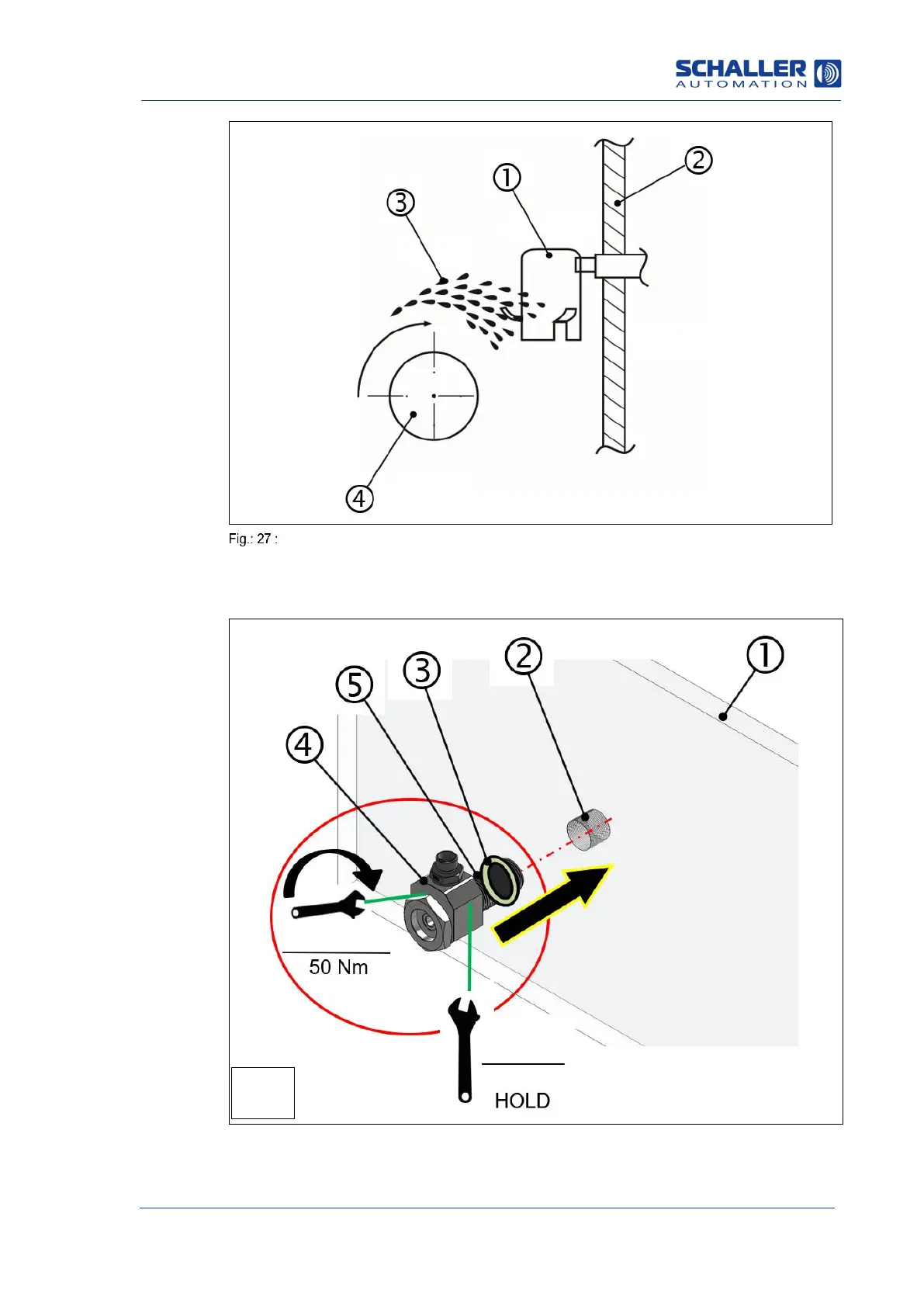

Recommended install. for the engine wall connection (view from the crankshaft end)

1: Intake funnel

3: Splashing oil

2: Engine wall

4: Rotating crankshaft

1: Engine wall

3: Seal M27, oil-resistant

5: Threadlocker (Loctite 243)

2: Screw-in thread: G3/4" or M27x1.5

4: Screw connection body

AF size 41

AF size 46
