Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

MAINTENANCE AND REPAIR

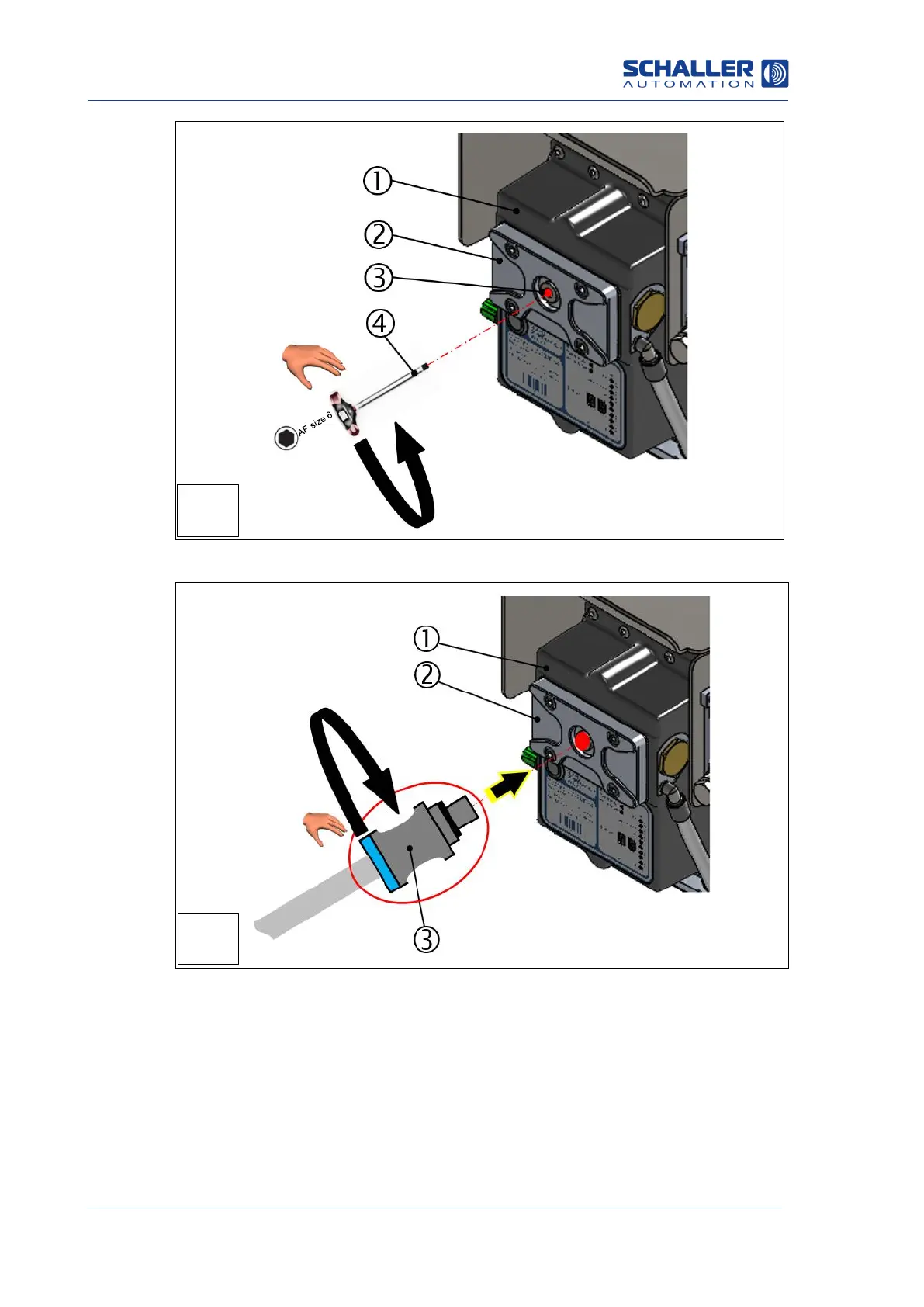

1: Measuring head

3: Screw plug

2: Inspection cover

4: Allen key, size 6/torque spanner for 15 Nm

1: Measuring head

3: Push-in fitting with flexible hose

2: Inspection cover

 [] is the same as 4 and 5 in Figure 70.

 [] is screwed hand-tight into the inspection cover [].
