Operating manual VISATRON® Oil Mist Detector VN2020 / VN2020 EX
Part number 183001 Version 3.0
ASSEMBLY AND INSTALLATION
Part numbers:
150260 – Siphon block (standard)
150166 – Siphon block with measuring connection
270923 – Connection unit 03 (standard)
270371 – Filling pump
Required tools:
Allen key, size 6 (1), open spanner, size 10 (1)
Open spanner, size 17 (1)
Filling pump with lubrication oil for filling the siphon block (1)
Open spanner, size 24 (2), open spanner, size 32 (2)
The safety instructions in Section 6.3.4.
Section 6.3.4 Installing engine wall connection and
intake funnel, and Section 2.4.1
Section 2.4.1 apply. Safety instructions for potentially explosive
atmospheres
The alignment of the cutting ring must be taken into account when installing
the cutting ring.
The allowed assembly tolerance is +/- 3 degrees deviation from the horizontal
alignment.
When installing, make sure that there is sufficient clearance around the lower
screw plug and the measuring connection. The two connections must be freely
accessible for maintenance purposes
Leakage from the siphon blocks can negatively affect crankcase monitoring.
To ensure leak-tightness at the siphon block, you must observe the alignment
when installing the cutting ring.
The oil return hole of the connection screw must be closed by the tip of the
filling pipe. Otherwise, the lubrication oil that is introduced will run into the
crankcase and not into the ducts of the siphon block.

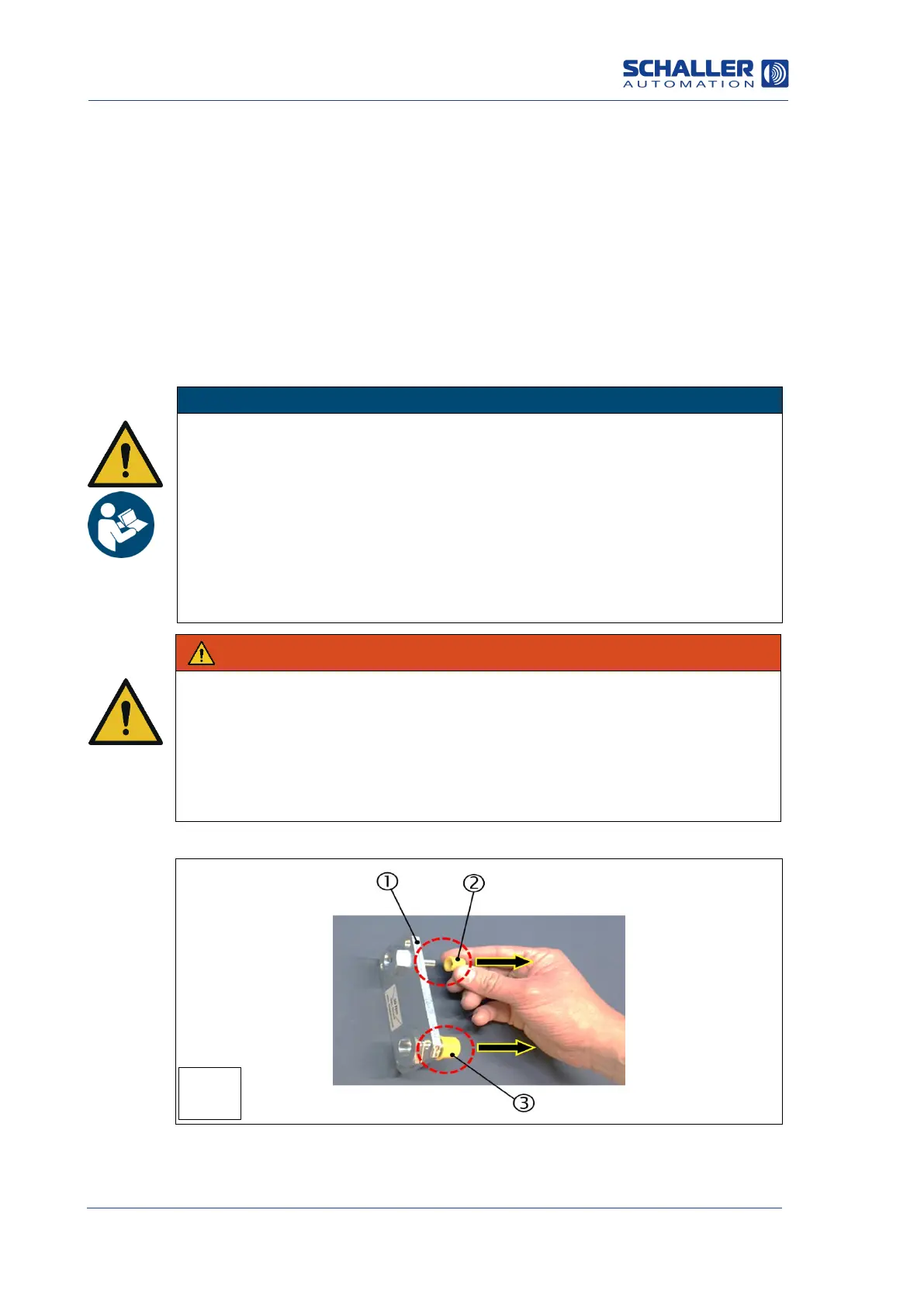

Description of the installation steps:
1: Connection unit 03
3: Threaded protection cap
2: Threaded protection cap (dispose of)
