Operating manual VISATRON® Oil Mist Detector VN2020 / VN2020 EX
Part number 183001 Version 3.0
ASSEMBLY AND INSTALLATION
Part numbers:
150939 - Pipe siphon, complete
Required tools:
Open spanner, size 19 (5)
Open spanner, size 32 (2)
Open spanner, size 36 (3)
Filling pump with lubrication oil for filling the pipe siphon (1)
Torque spanner for torque up to 180 Nm (3)
Small spirit level
The safety instructions in Section 6.3.4.
Section 6.3.4 Installing engine wall connection and
intake funnel, and Section 2.4.1 apply
Section 2.4.1 Safety instructions for potentially explosive
atmospheres
The alignment of the pipe siphon must be taken into account when installing
the pipe siphon.
The allowed assembly tolerance is +/- 3 degrees deviation from the horizontal
alignment.
Danger from component breaking
Damage to parts or the engine
The specified torque must be used and applies exclusively to components
made of steel.

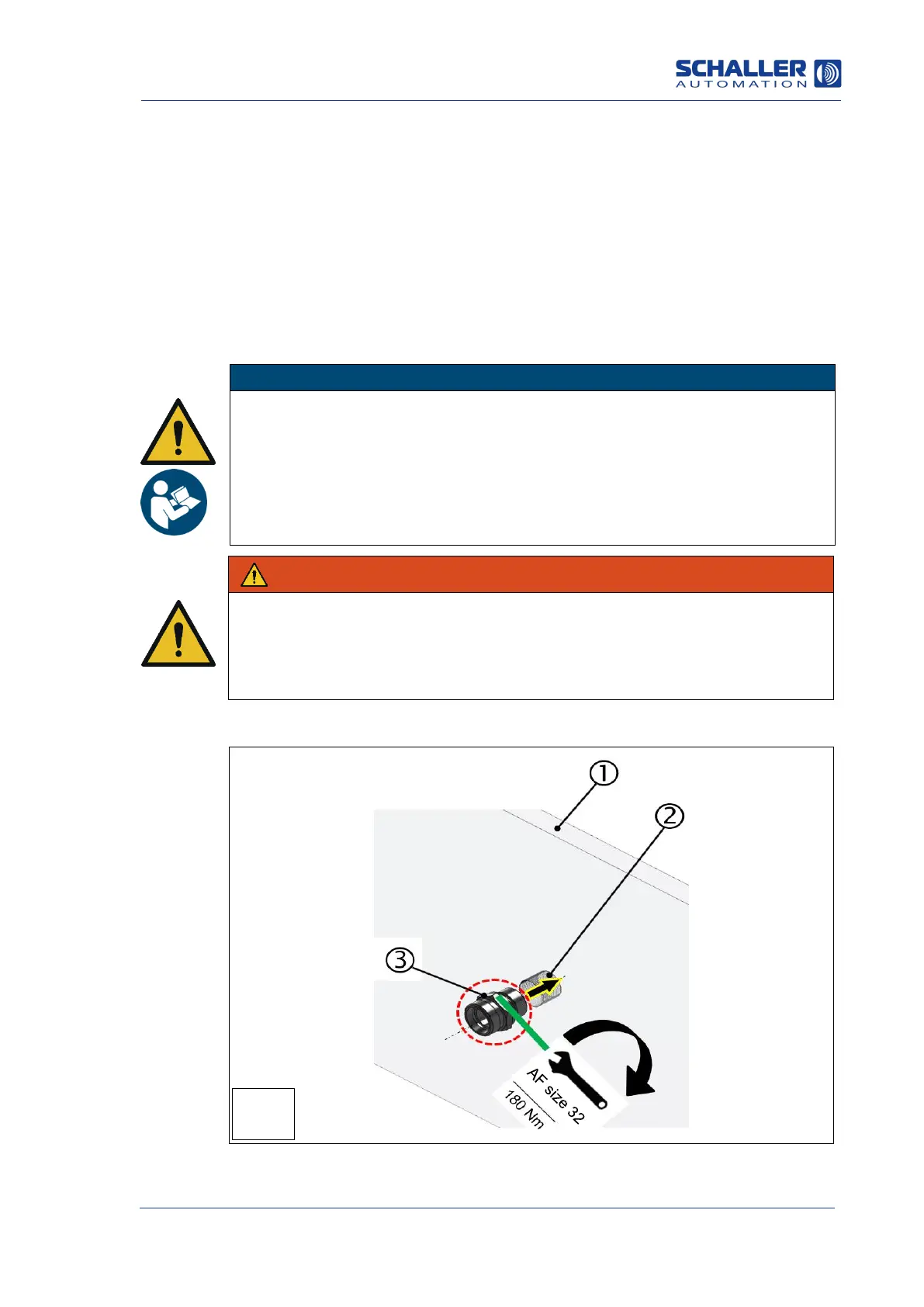

Description of the installation steps:
1: Engine wall
3: Straight screw-in socket L22
2: Screw-in thread on engine wall
